Suspension Control System Wiring Schematics

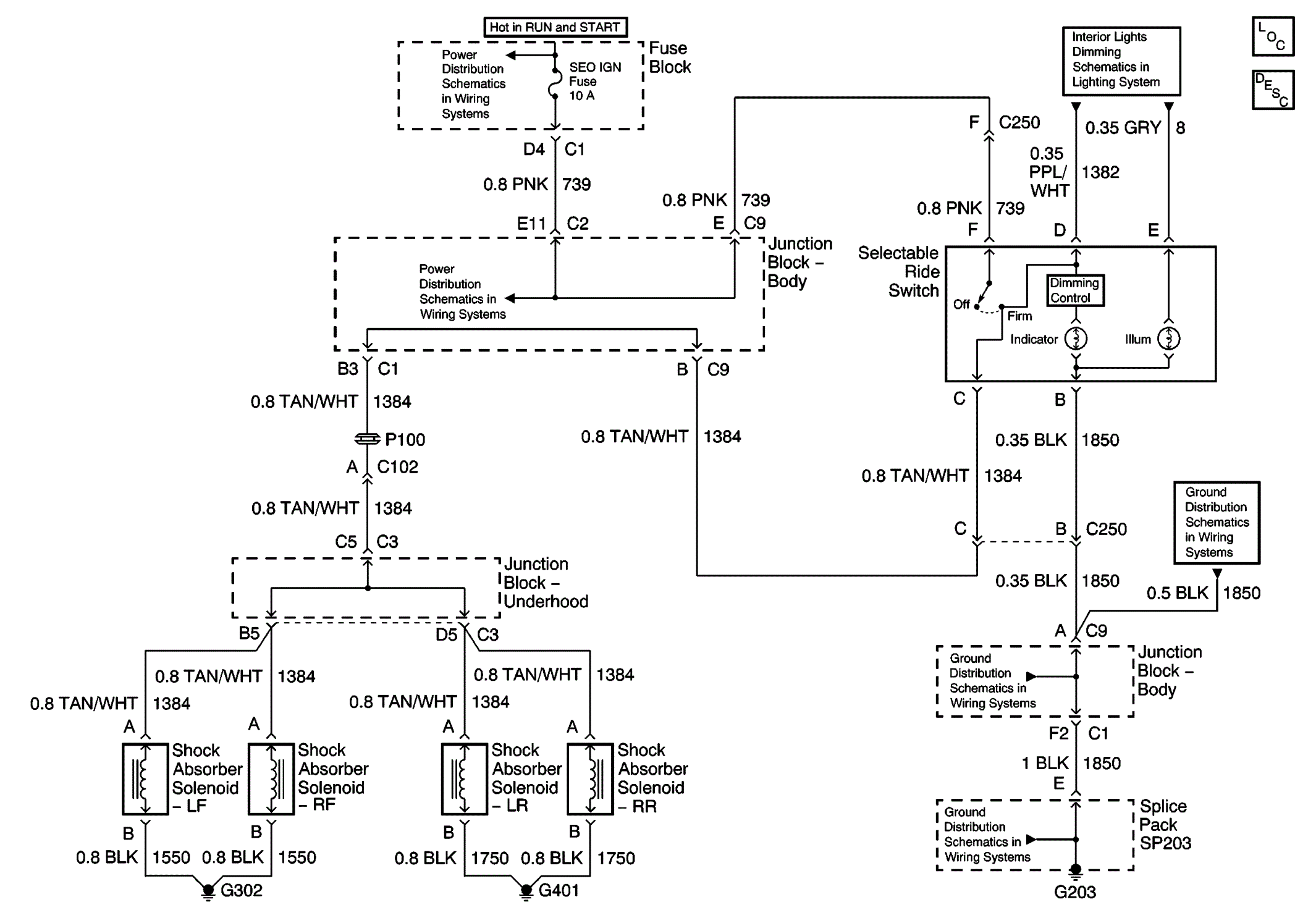

Fig 1: Suspension Control System Wiring Schematic

GM704545

Courtesy of GENERAL MOTORS COMPANY
