Chevrolet
>>
2000
>>
Venture V6-3.4L VIN E
>>
Repair and Diagnosis
>>
Windows and Glass
>>
Heated Glass Element
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

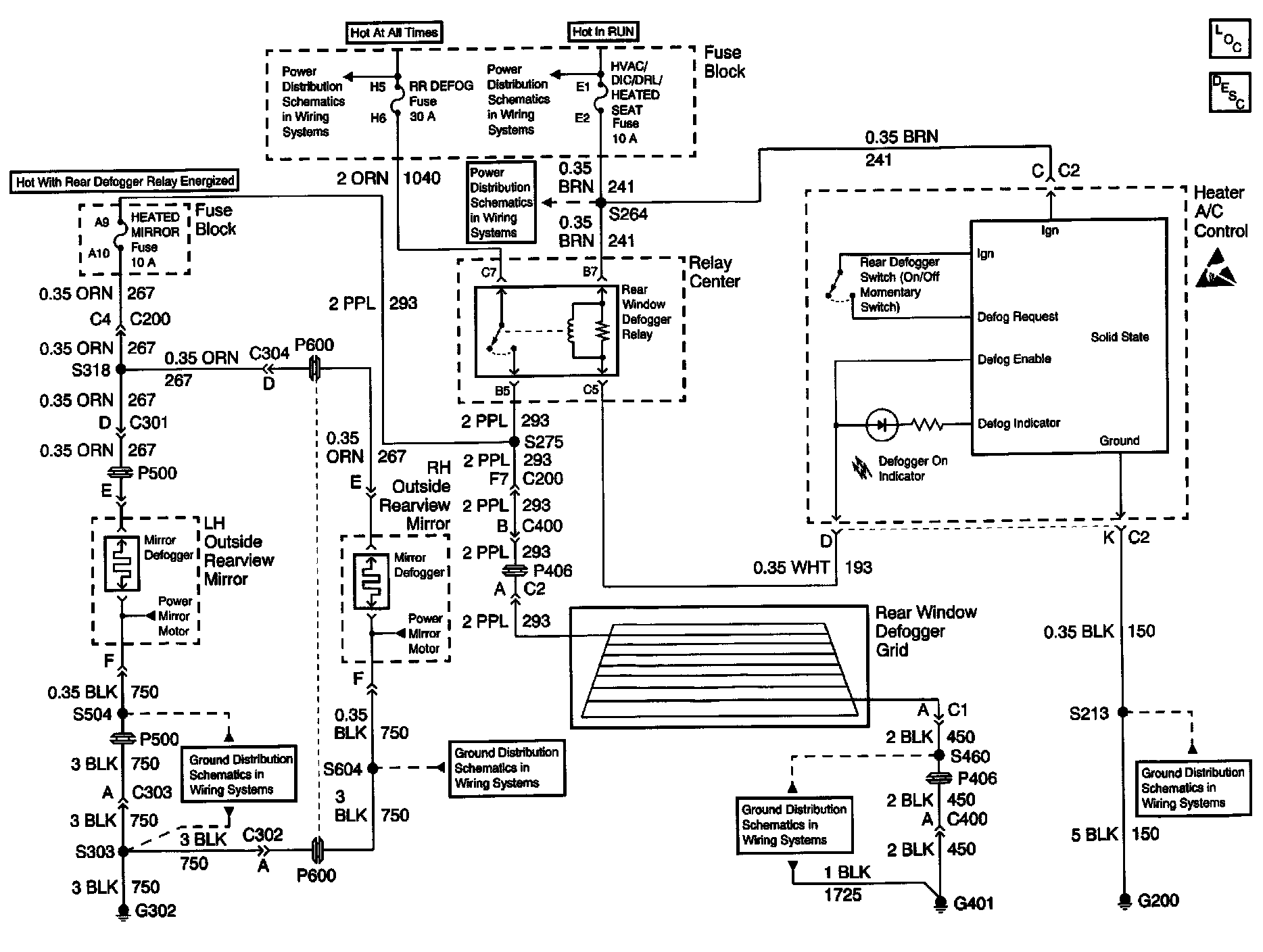

Defogger Schematics:
