Home >> Chevrolet >> 2000 >> Venture V6-3.4L VIN E >> Repair and Diagnosis >> Transmission and Drivetrain >> Transmission Control Systems >> Diagrams >> Electrical Diagrams >> Automatic Transaxle TCC Switch (2 of 2)

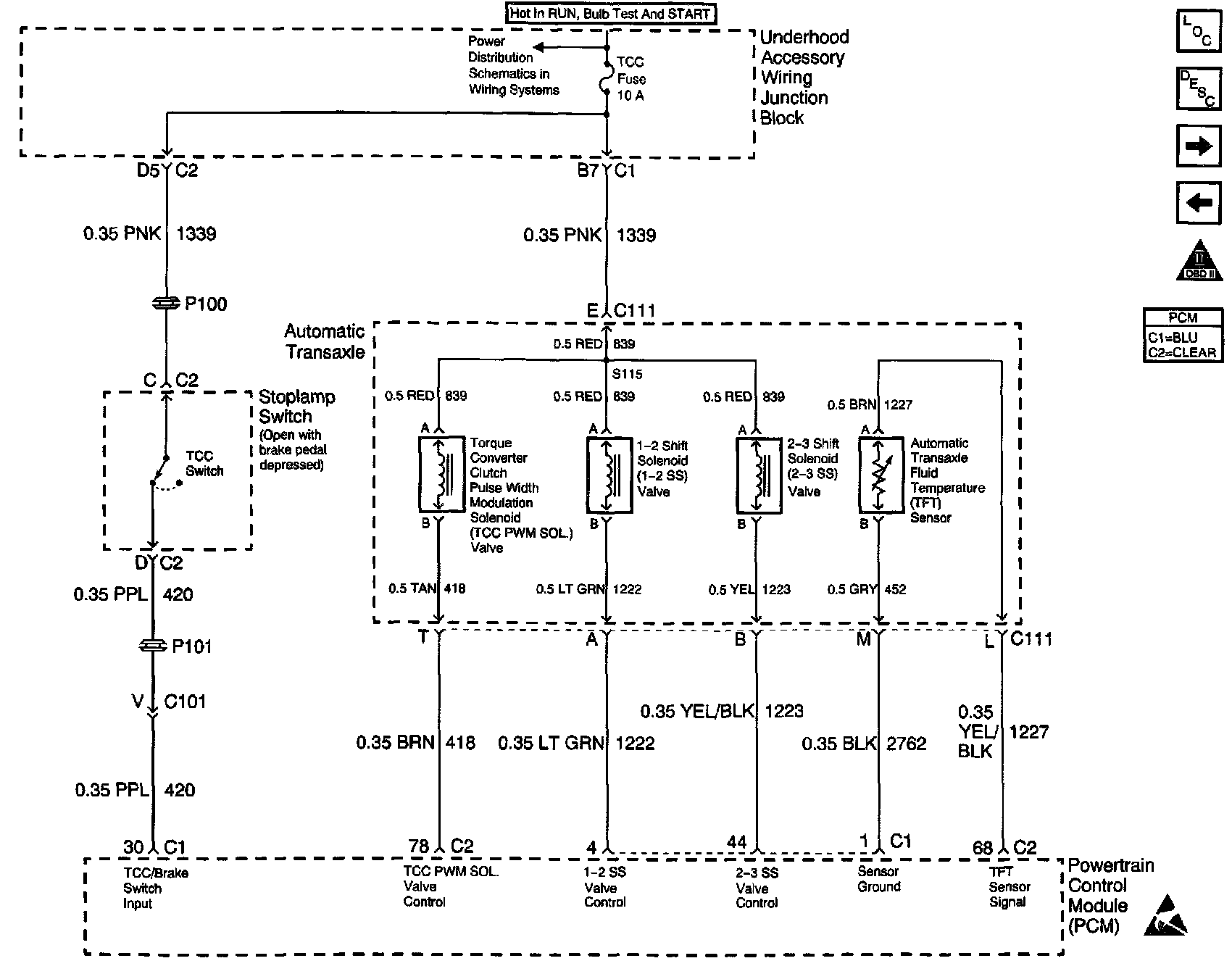

Automatic Transaxle TCC Switch (2 of 2)
