127. Torque Converter Assemble

^ Tools Required
- J 36850 Assembly Lubricant (or equivalent)





1. Apply J 36850 or equivalent to a new turbine shaft O-ring seal (520).
2. Apply J 36850 or equivalent to the turbine shaft (518) splines.
3. Install the turbine shaft O-ring seal (520) onto the turbine shaft (518).

Caution: The torque converter weighs approximately 65 lbs. Personal injury may result if you lift the torque converter improperly.

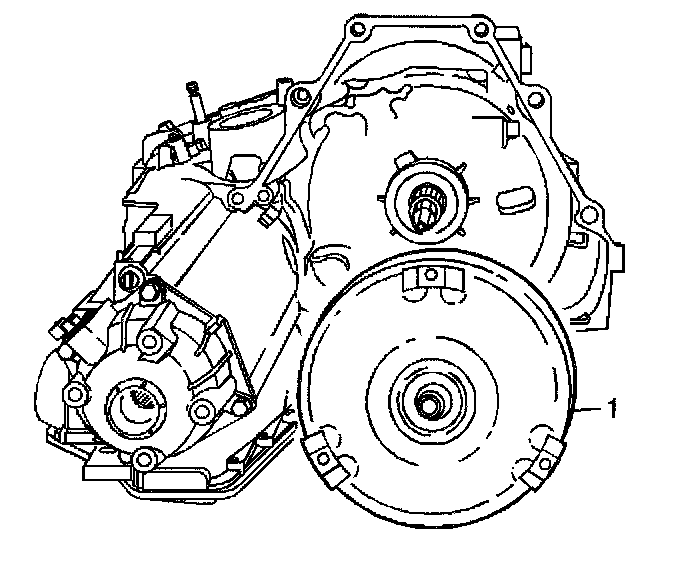

4. Install the torque converter assembly (1).
