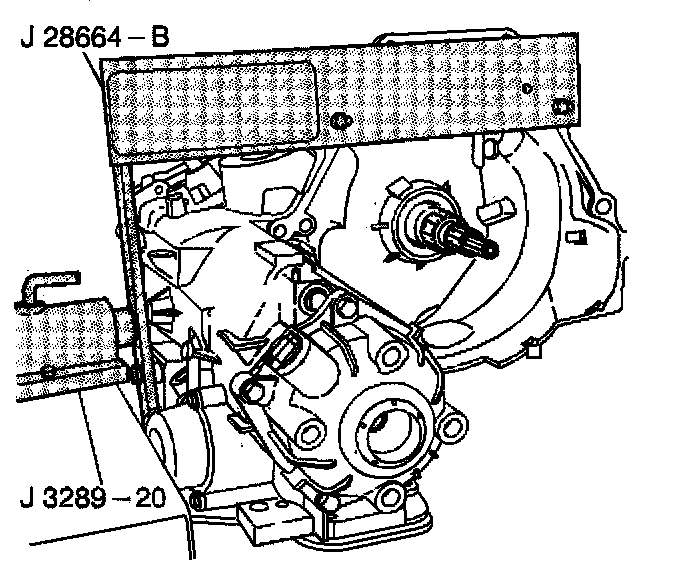

125. Transmission Holding Fixture Disassemble

^ Tools Required
- J 28664-B Transmission Holding Fixture
- J 3289-20 Holding Fixture Base





1. Remove the pin from J 3289-20.
2. Remove the transmission and J 28664-B from J 3289-20.
3. Remove J 28664-B from the transmission.
