Internal Components

Transmission Component Location

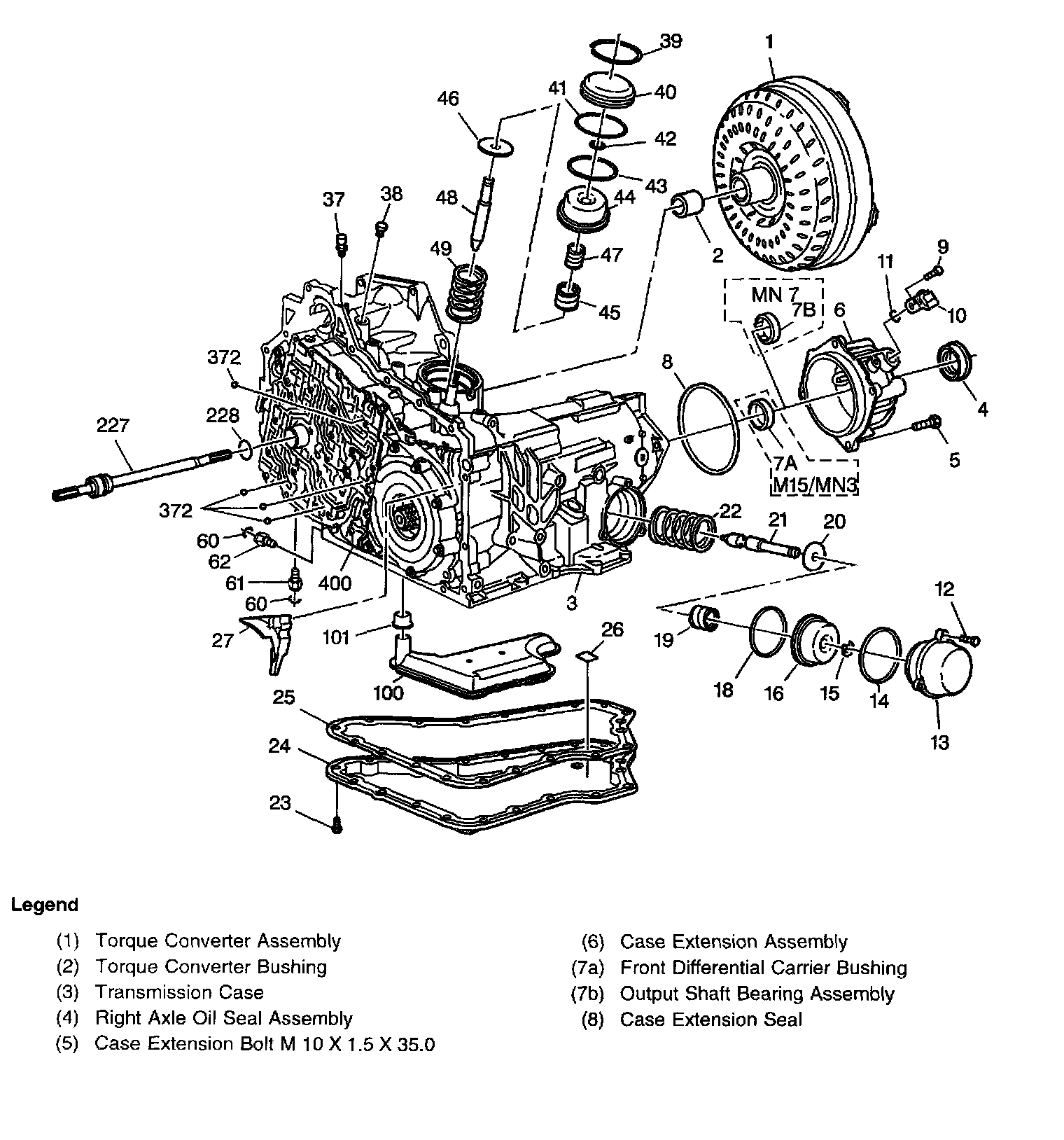

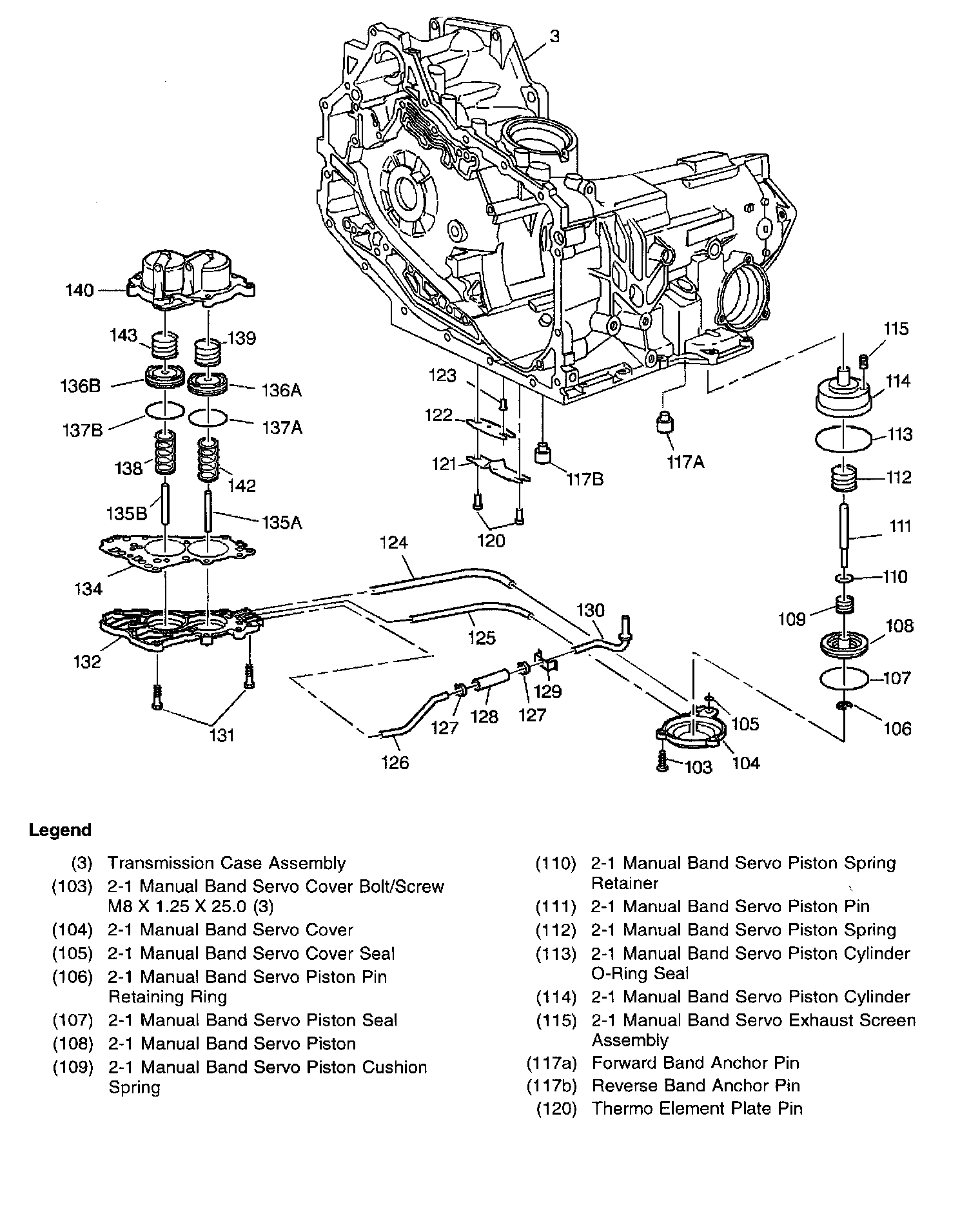

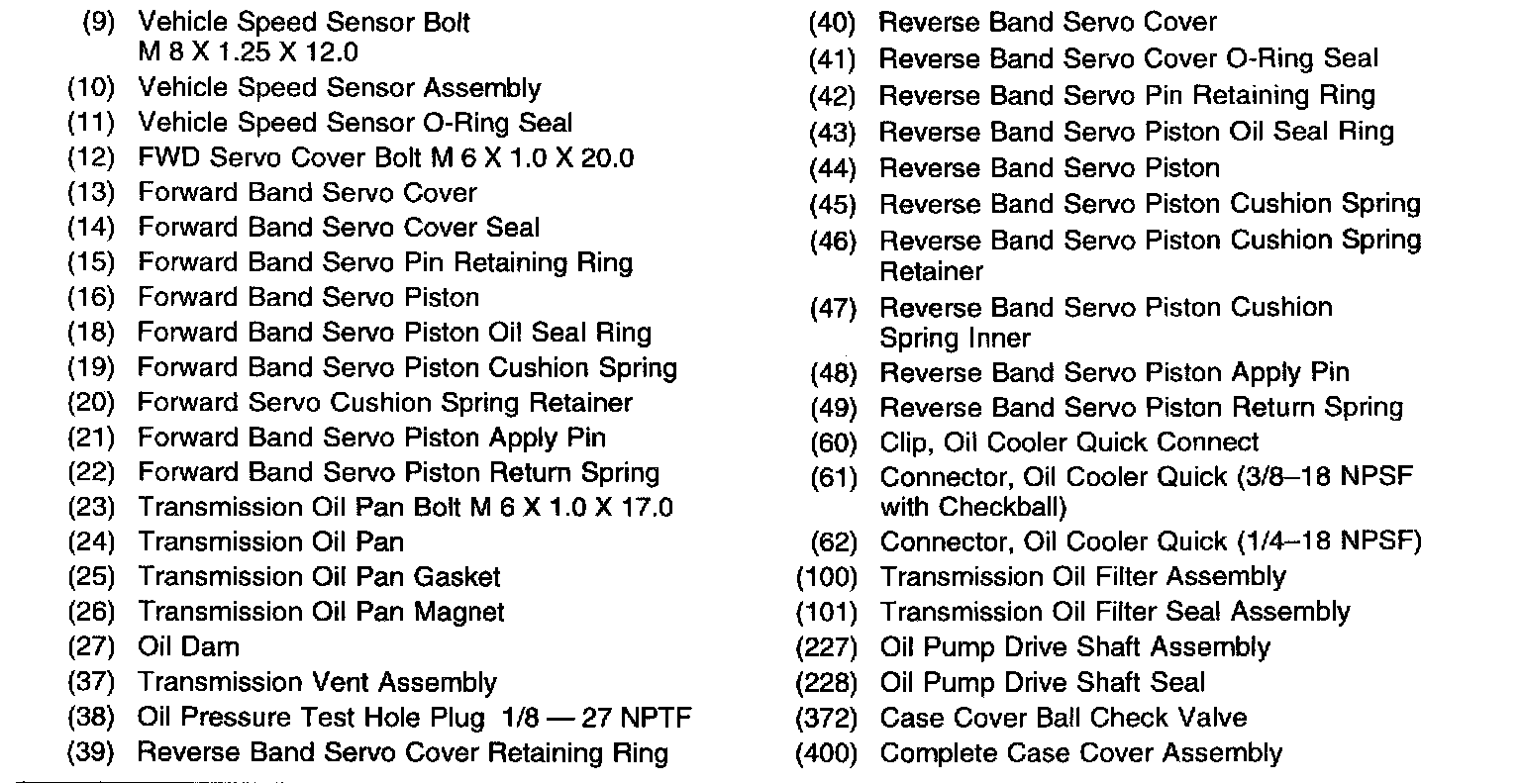

Case and Associated Parts (1 of 4)








Case and Associated Parts (2 of 4)








Case and Associated Parts (3 of 4)








Case and Associated Parts (4 of 4)

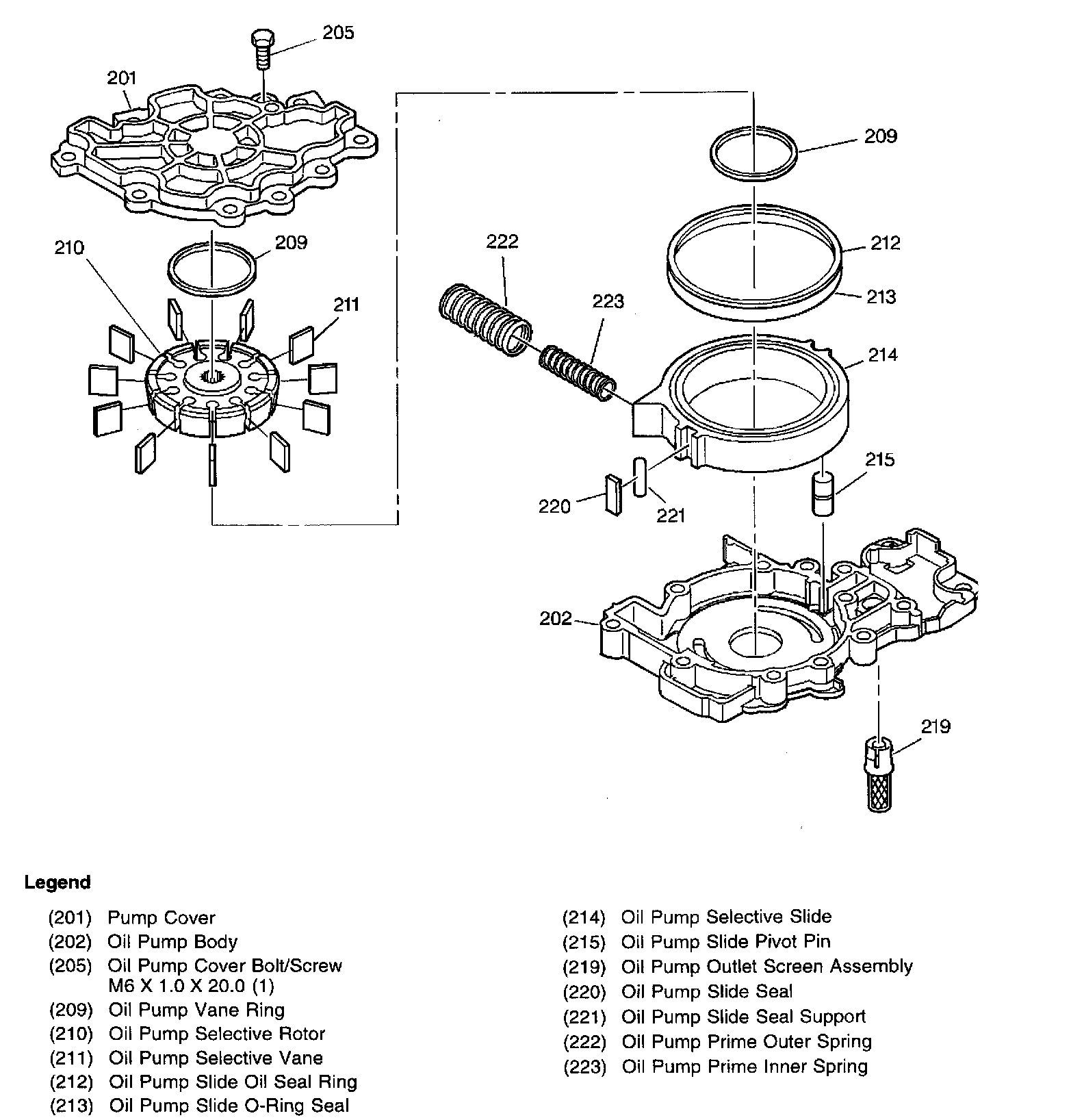

Oil Pump Assembly

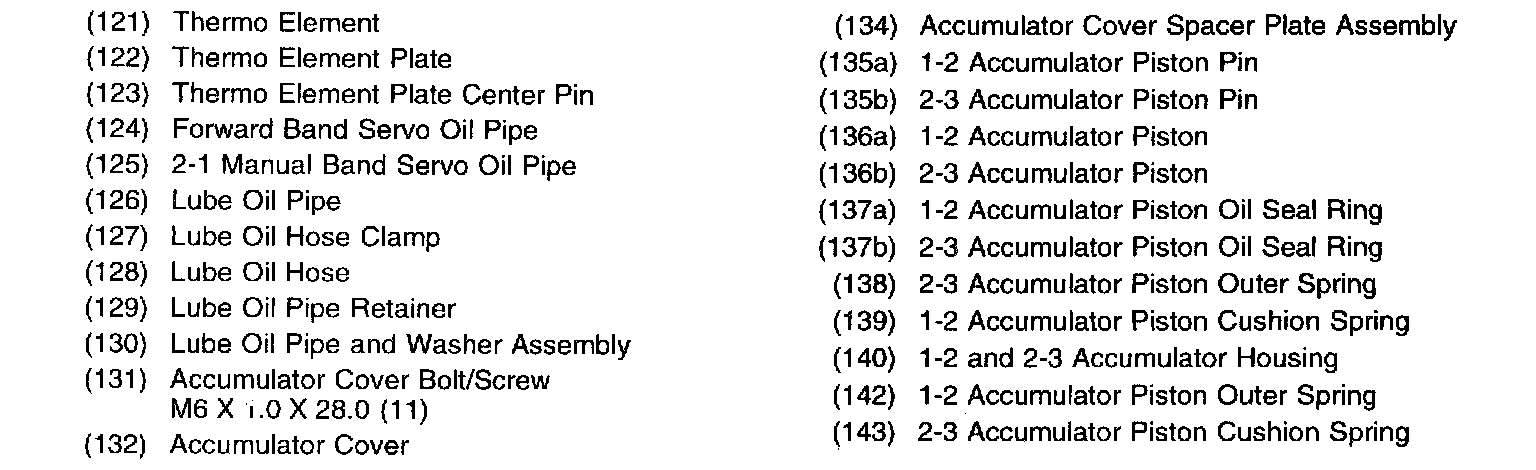

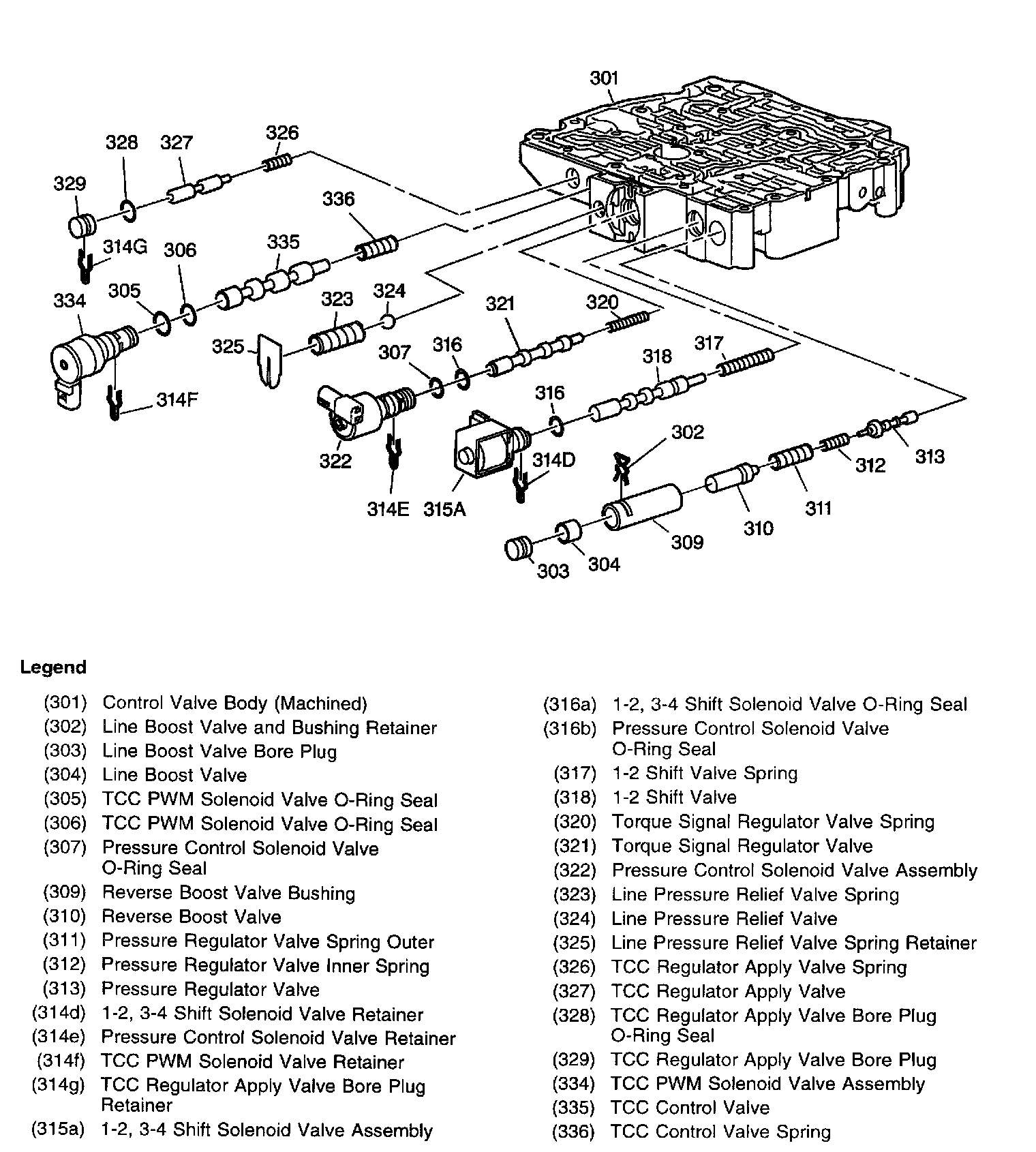

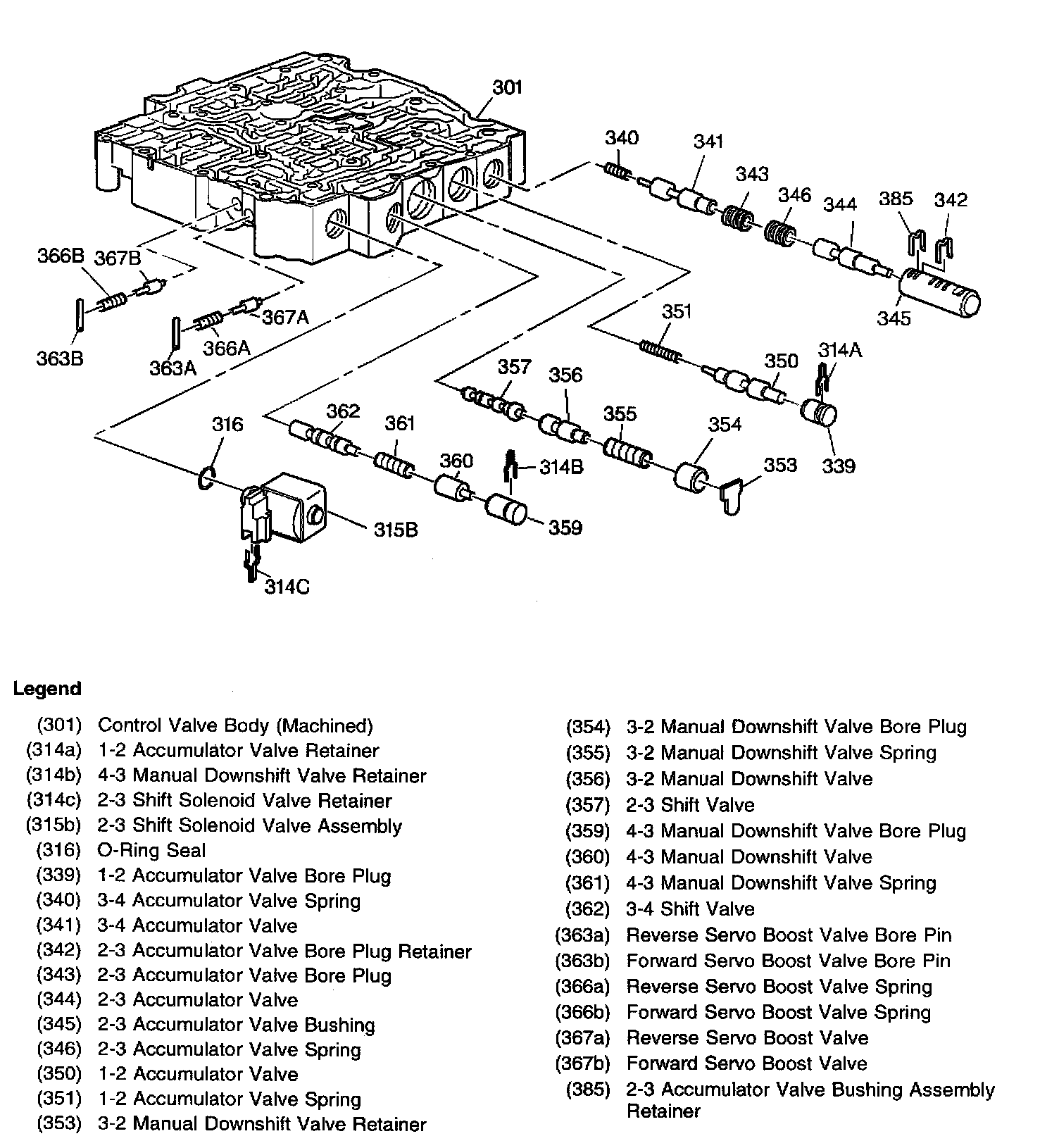

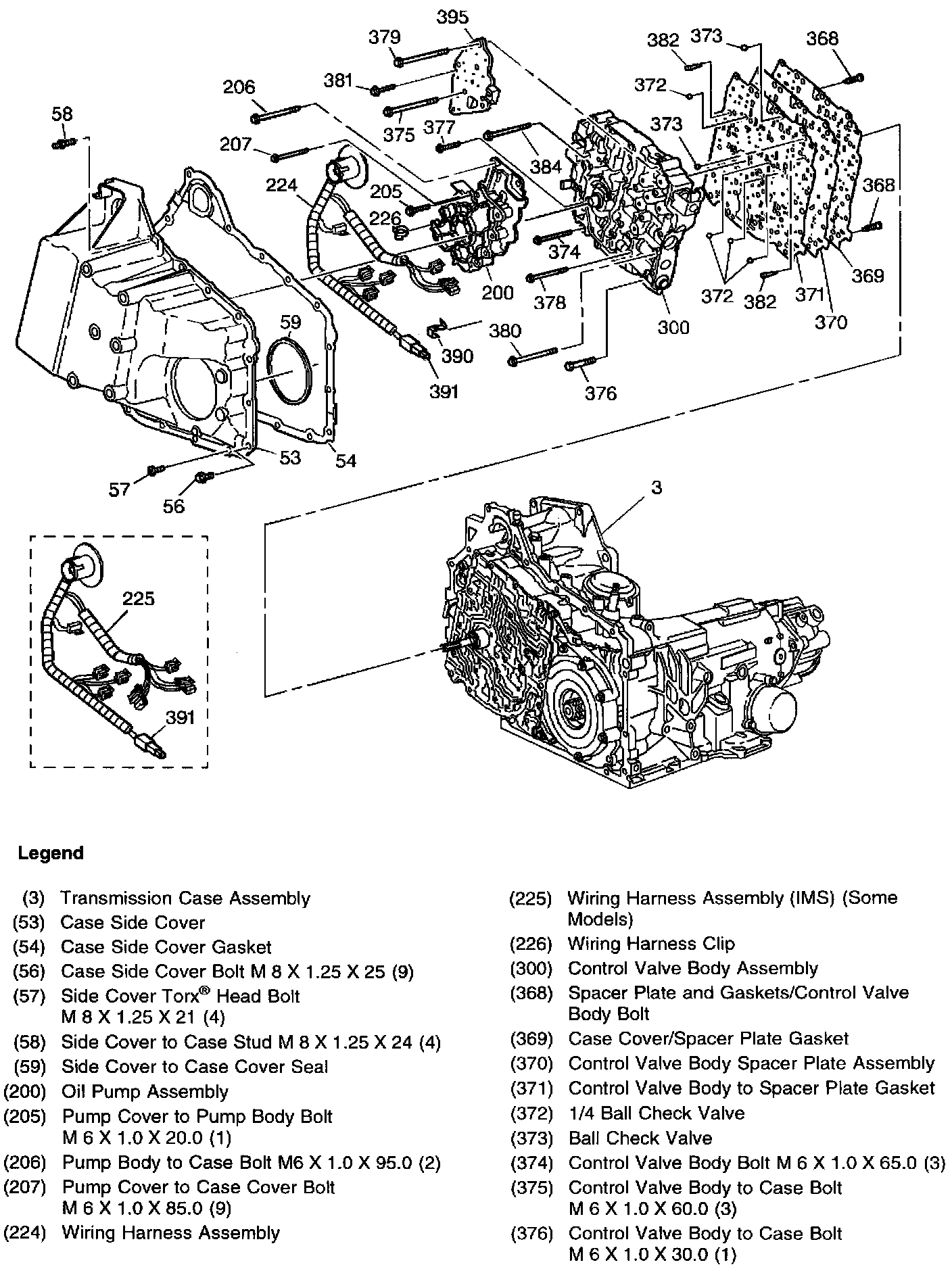

Control Valve Body Assembly (1 of 2)





Control Valve Body Assembly (2 of 2)

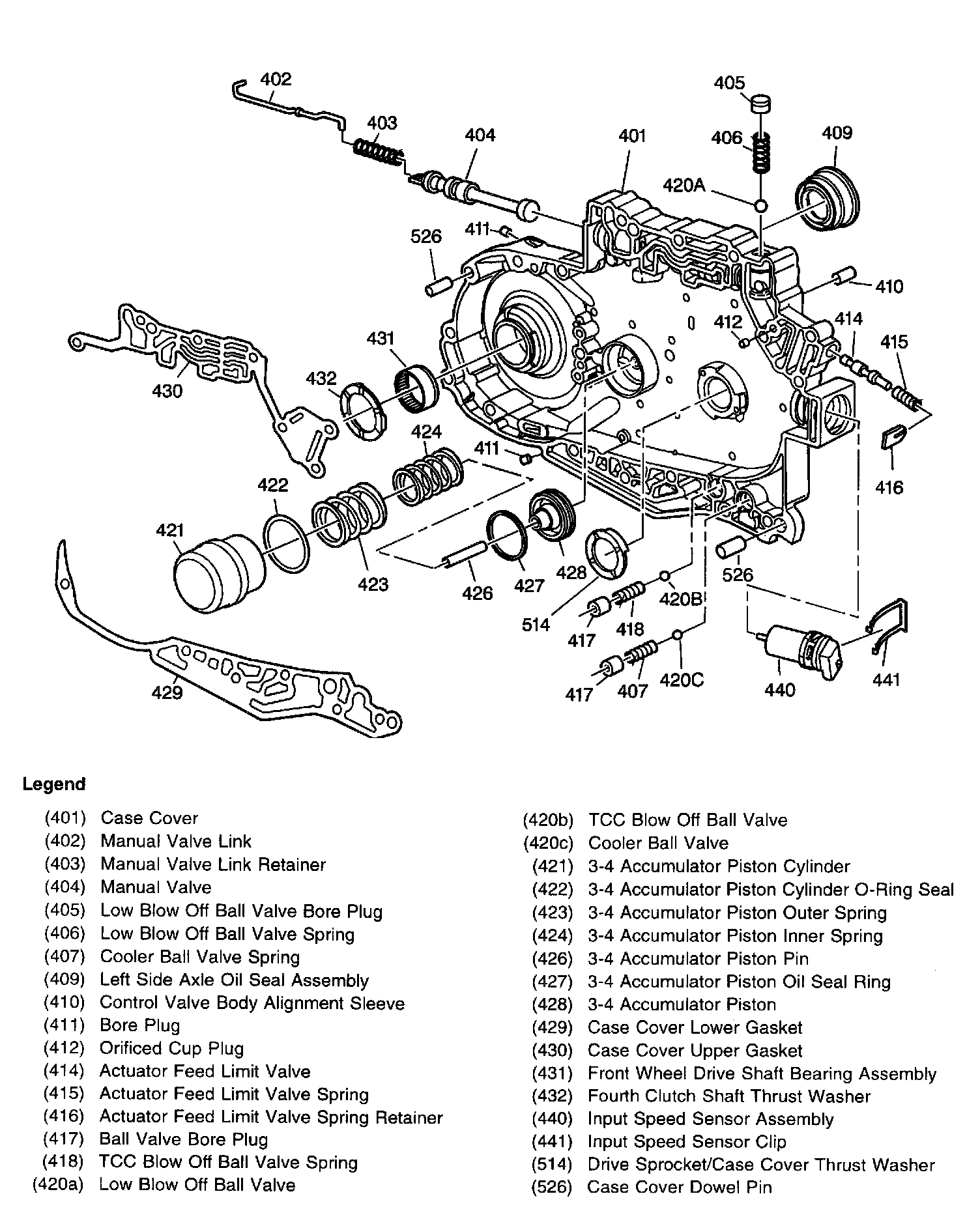

Case Cover Assembly

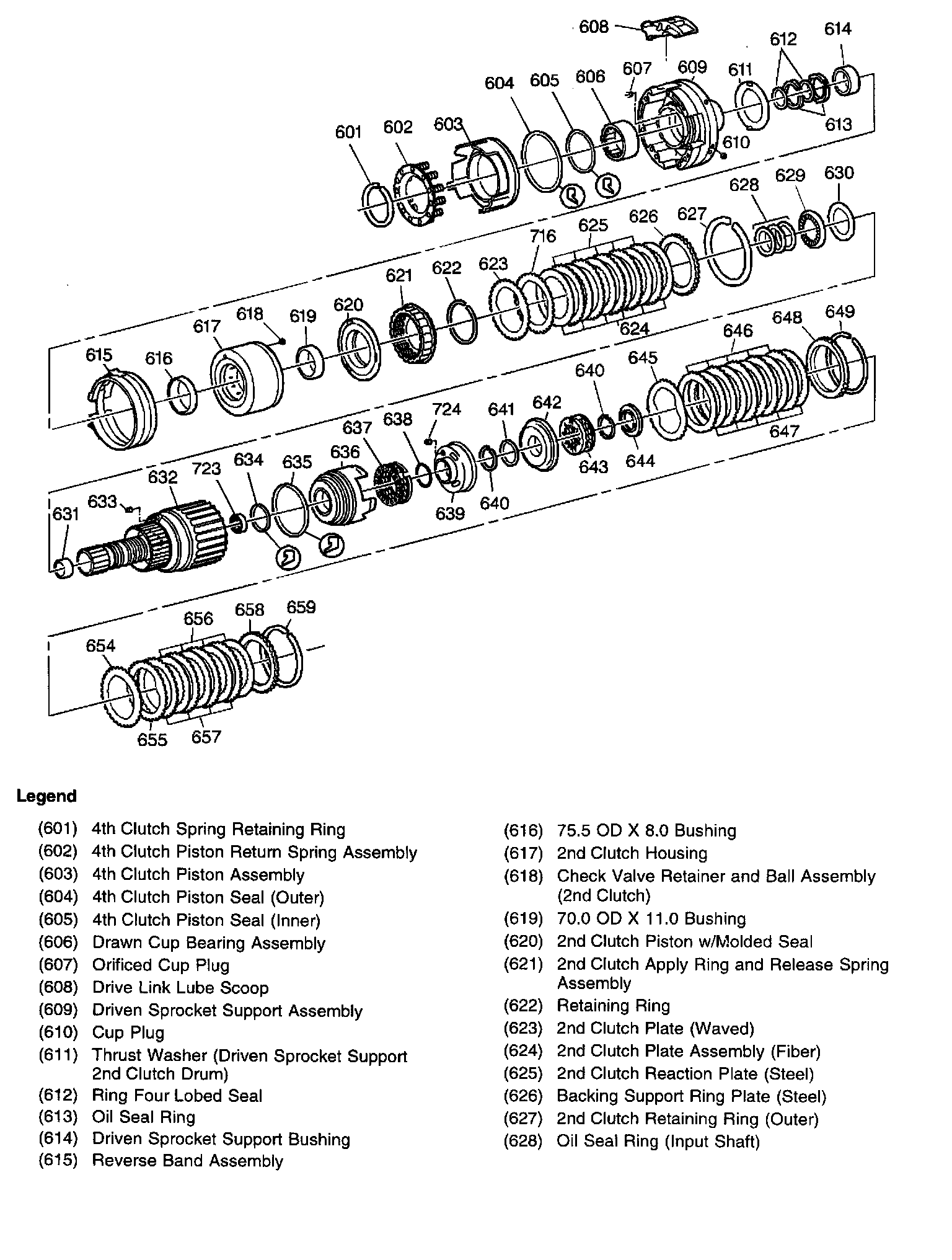

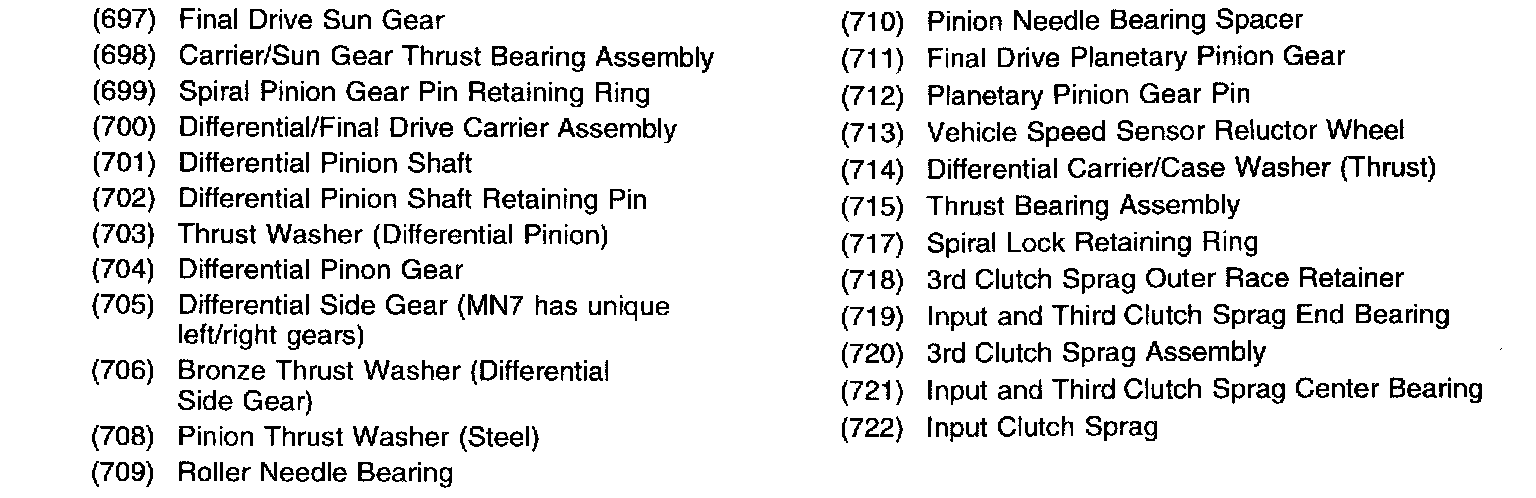

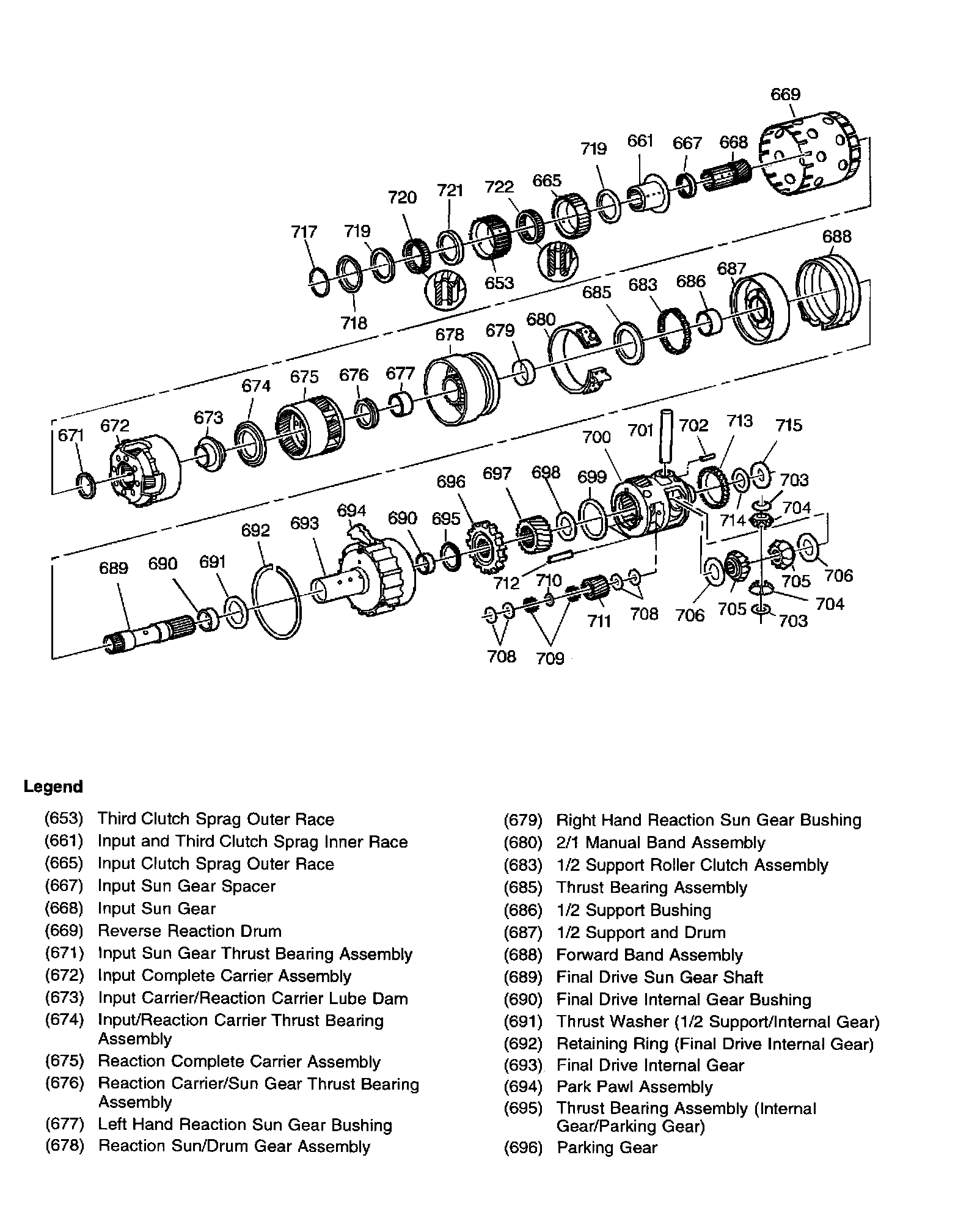

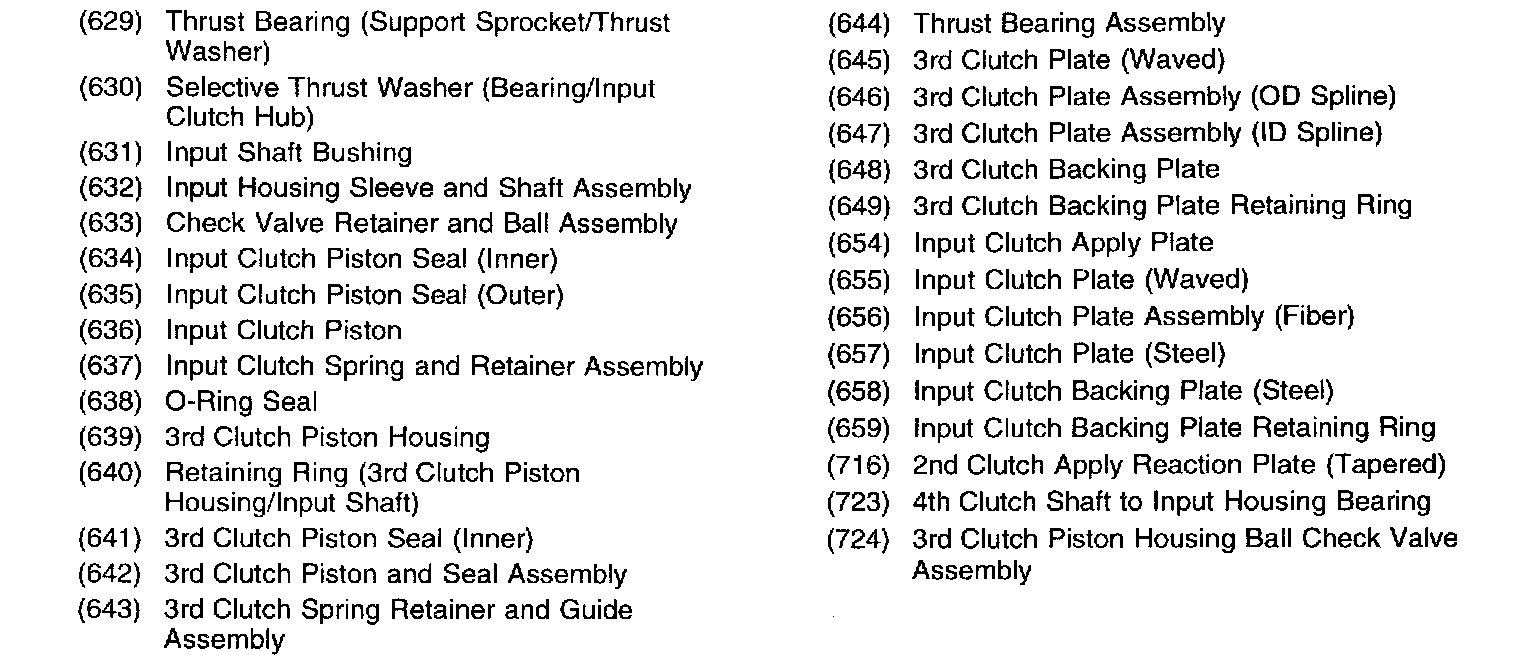

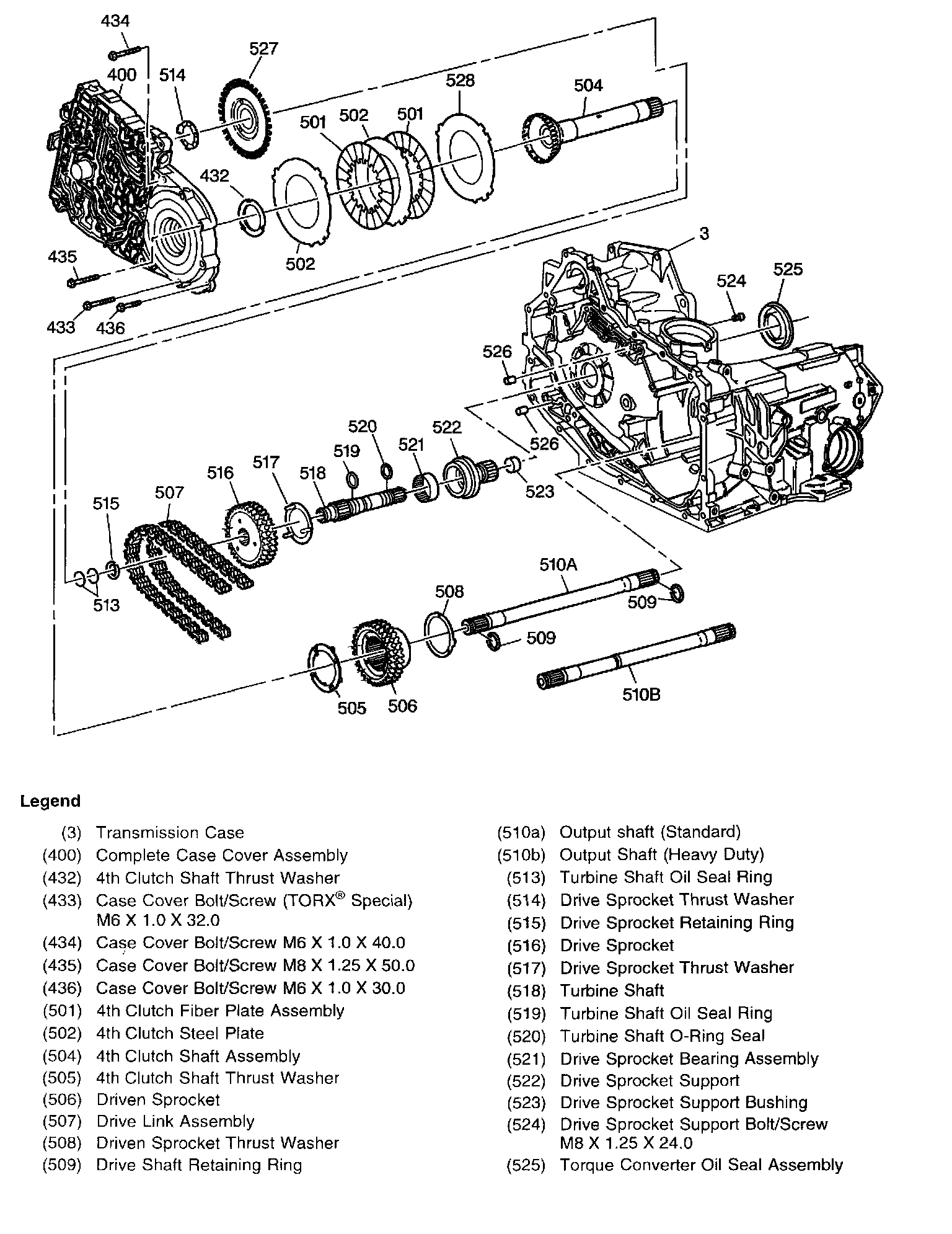

Internal Components (1 of 2)








Internal Components (2 of 2)

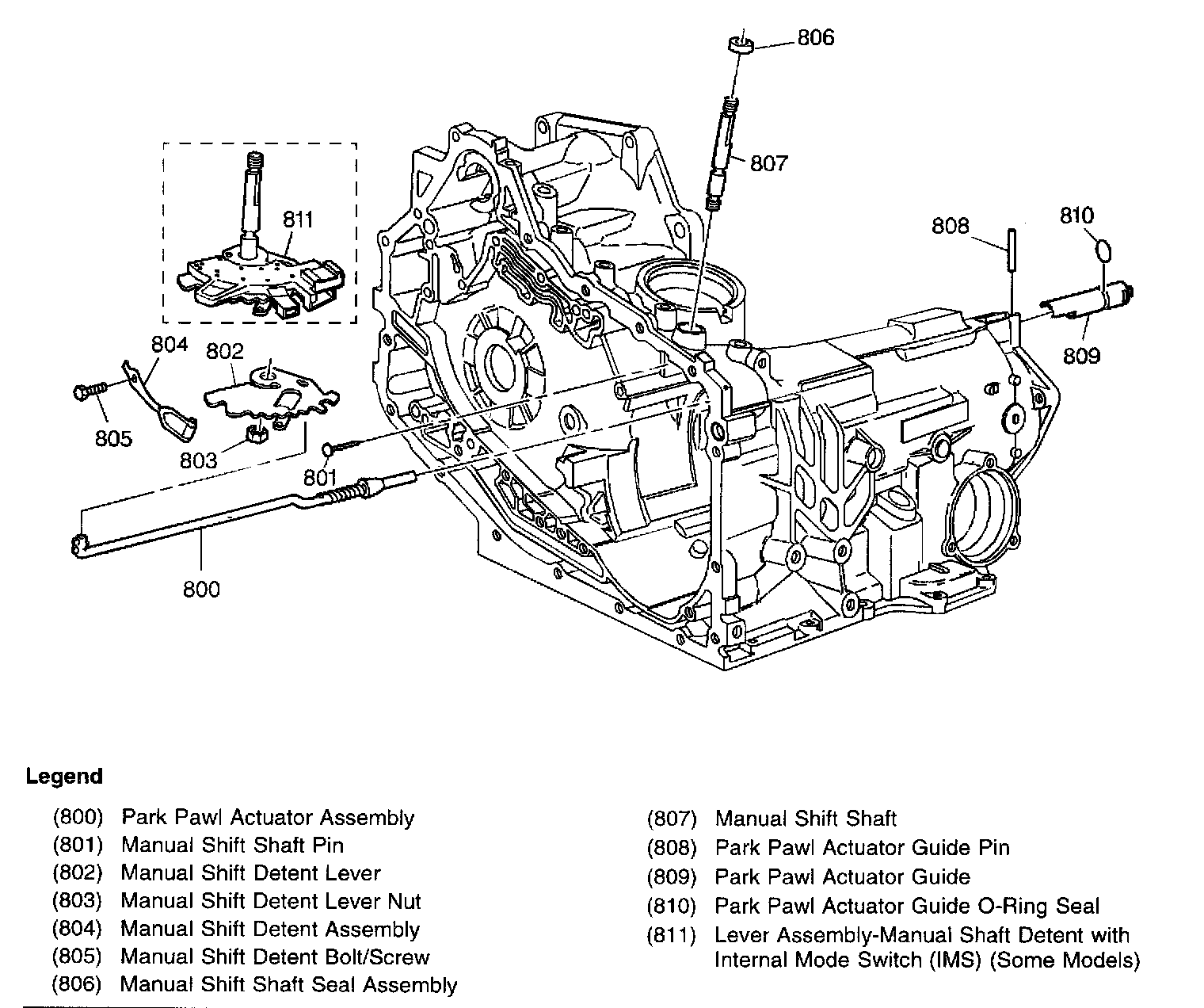

Manual Shaft and Parking System Assembly
