Home >> Chevrolet >> 2000 >> Venture V6-3.4L VIN E >> Repair and Diagnosis >> Steering and Suspension >> Suspension >> Suspension Control ( Automatic - Electronic ) >> Diagrams >> Electrical Diagrams >> With Inflator

With Inflator

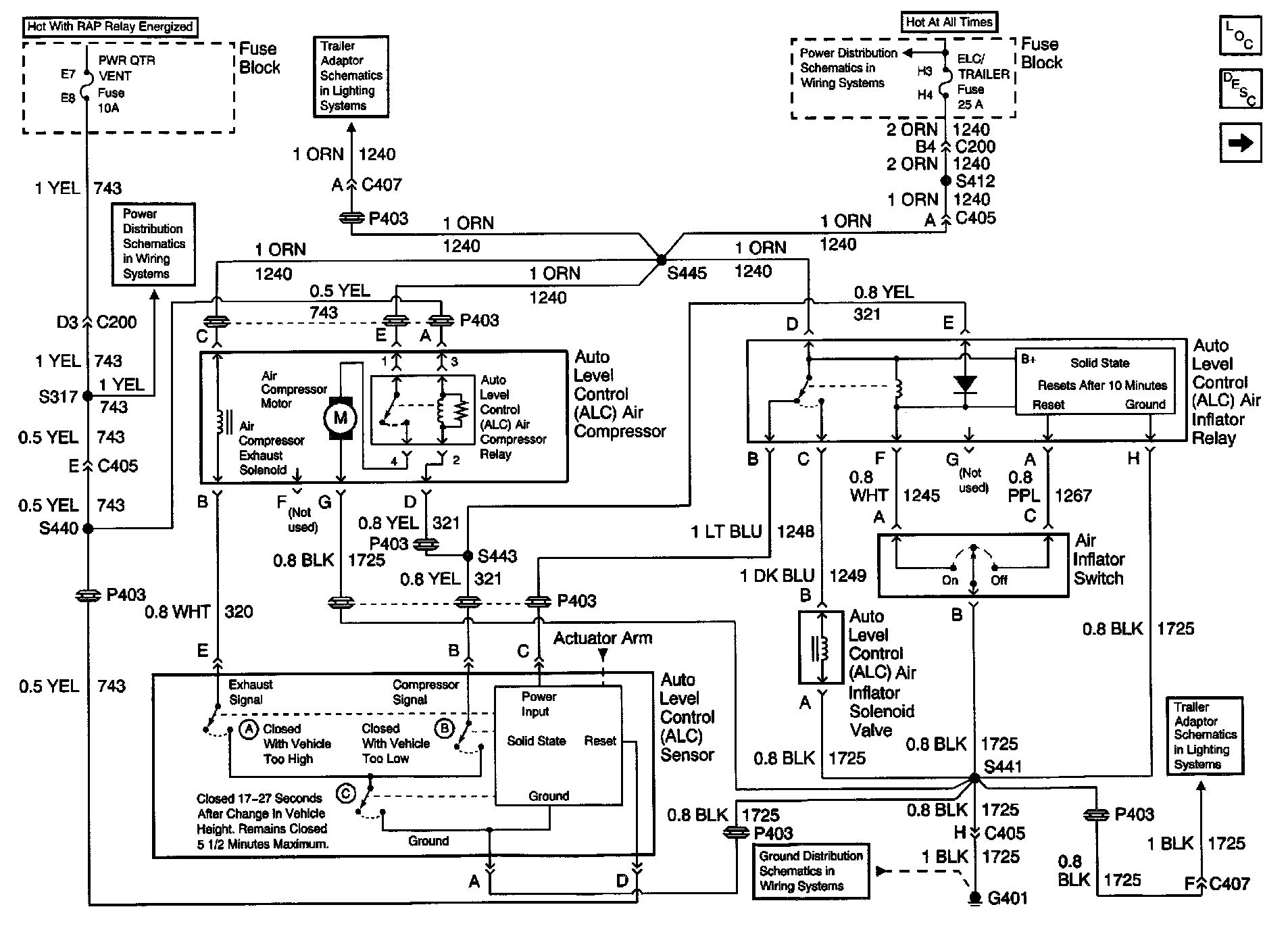

Automatic Level Control Suspension Schematics: With Inflator:
