Starter Motor Noise Diagnosis
DIAGNOSTIC AIDSCheck the flywheel ring gear for damage, unusual wear or a bent flywheel.
Shim the starter as required, if necessary.
In order to add pinion to ring gear clearance a full size shim must be used. Do not shim only one starter mounting bolt. There are three shims available in different shapes (for clearance), all are 1 mm thick.

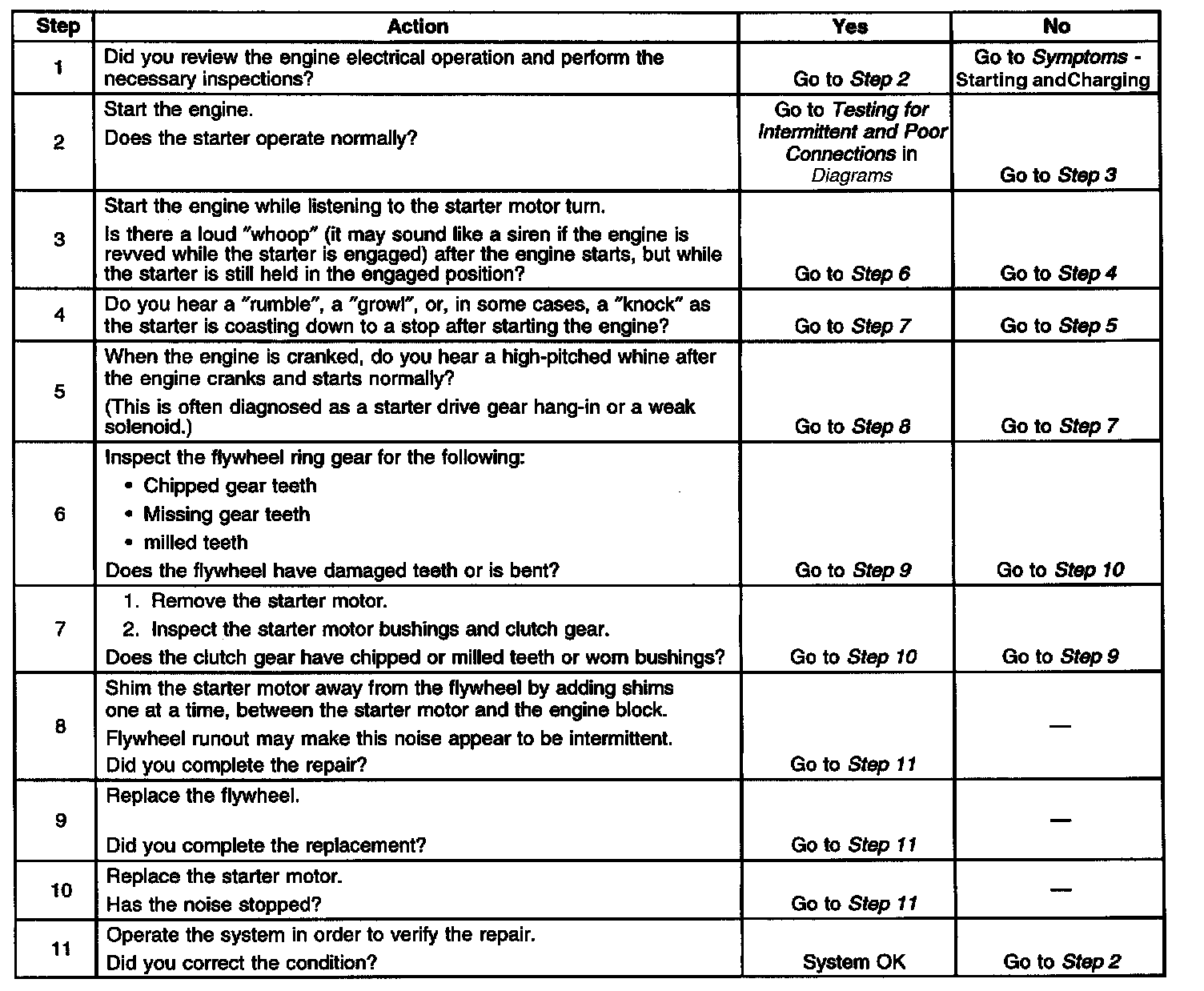

TEST DESCRIPTION
