LEMON Manuals: Even more car manuals for everyone
Home >> Chevrolet >> 2000 >> Venture V6-3.4L VIN E >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Fuse Block >> Diagrams >> Relay Center(Export)

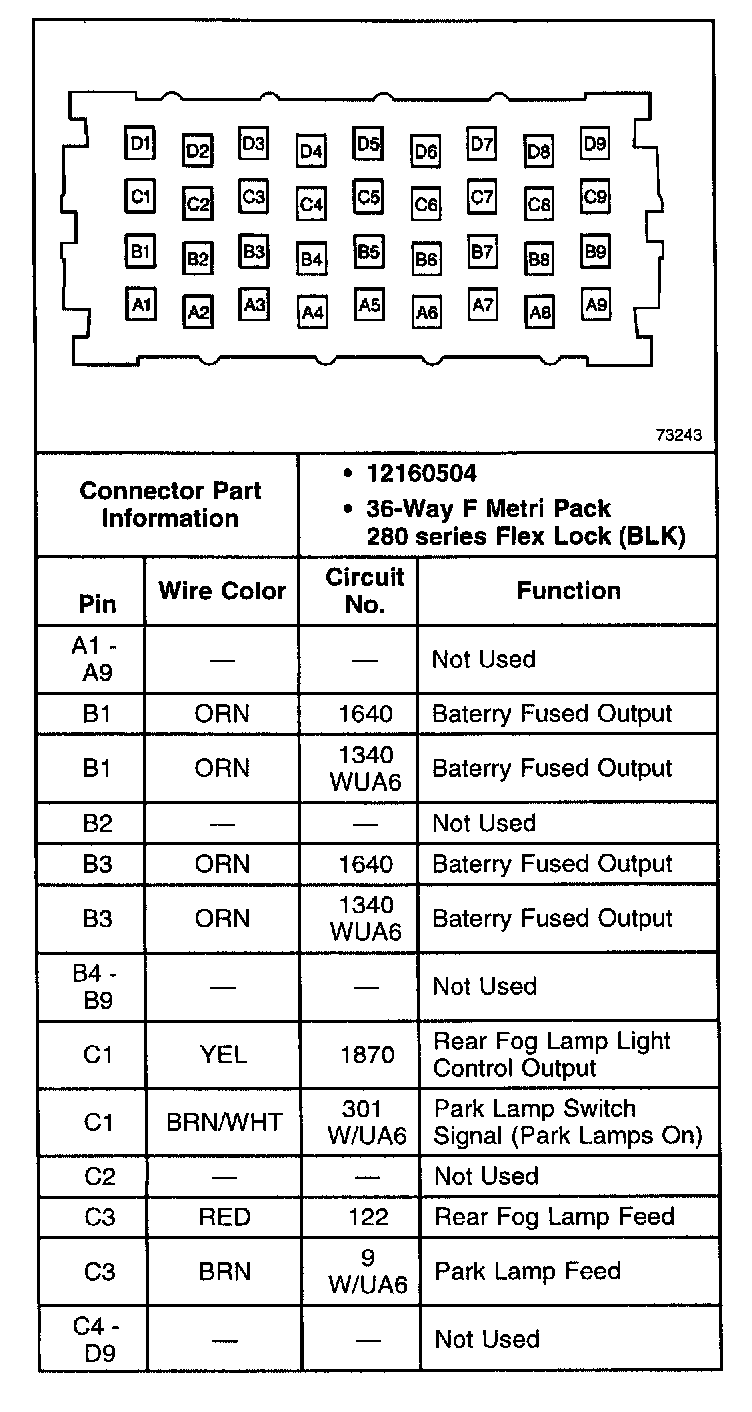

Relay Center(Export)

Relay Center(Export):
