Venture V6-3.4L VIN E
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Diagrams
>>
Electrical Diagrams
>>
Charging System
Charging System

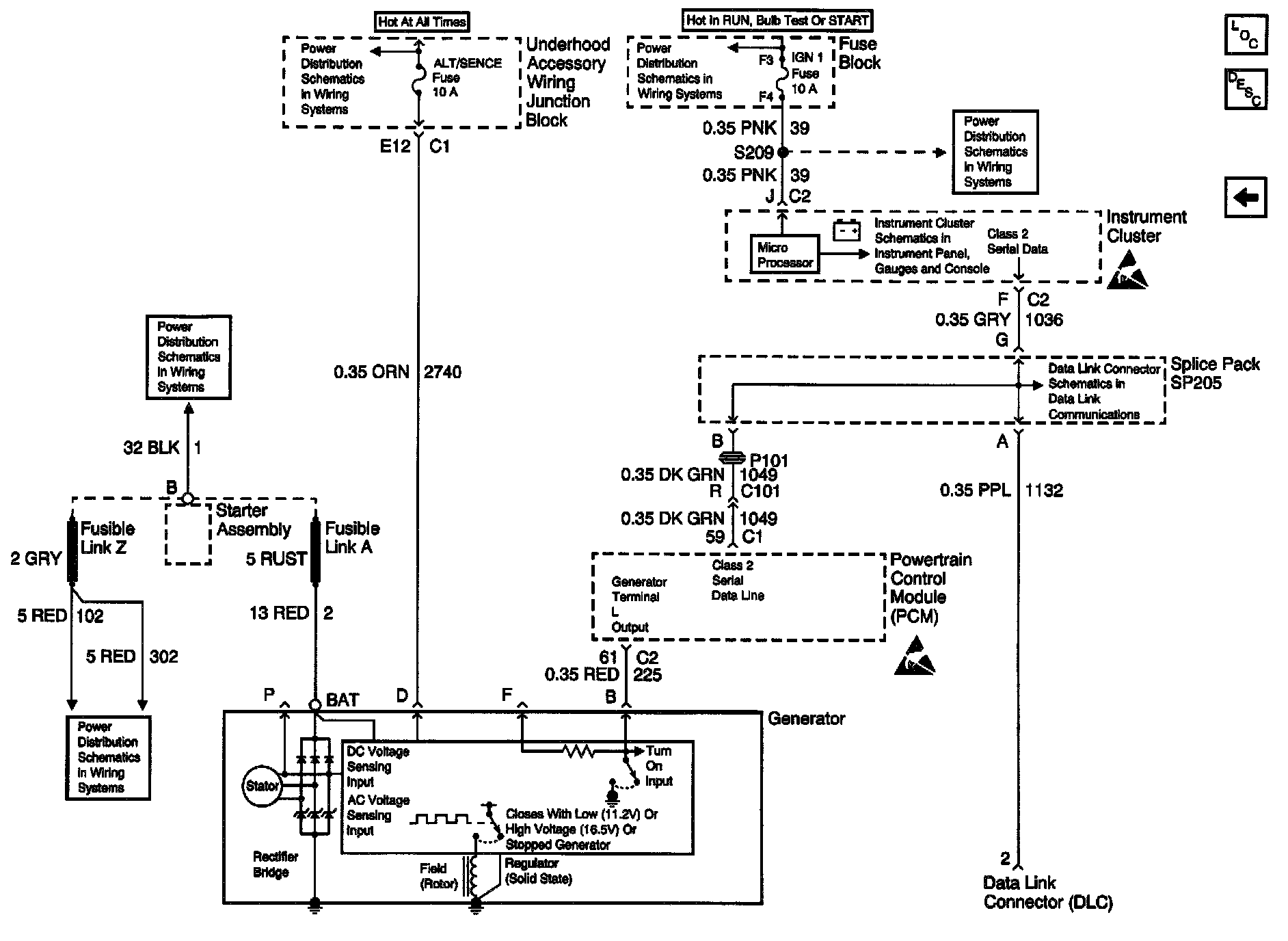

Starting And Charging Schematics: Charging:
