Arrows and Symbols

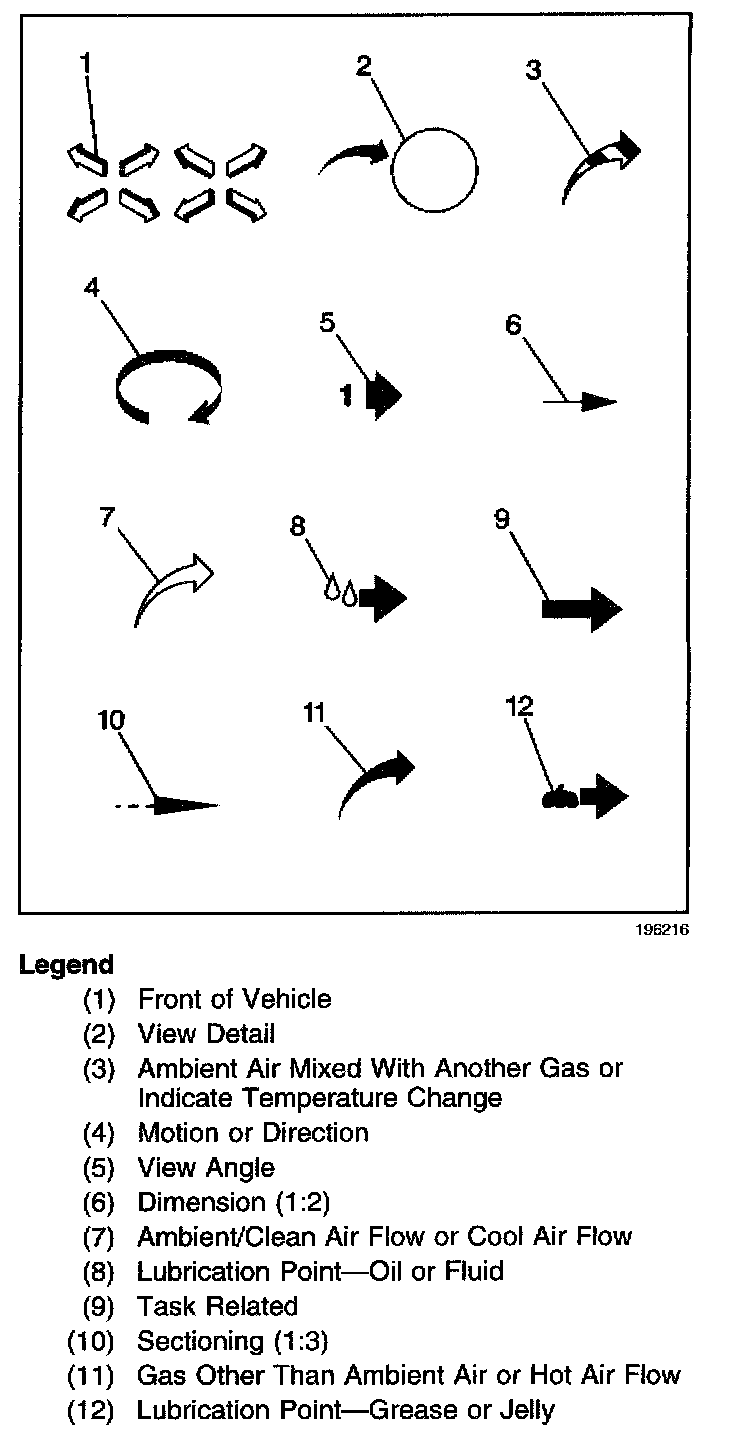

This service manual uses various symbols in order to describe different service operations.
