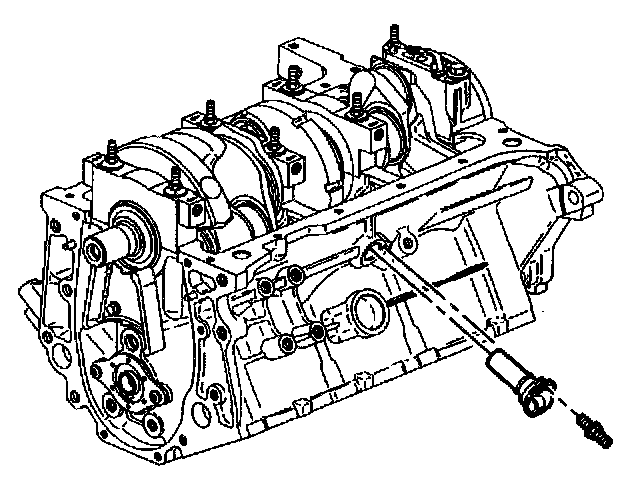

7X Crankshaft Position (CKP) Sensor

The 7X crankshaft position sensor provides a signal used by the ignition control module.




The ignition control module also uses the 7X crankshaft position sensor to generate 3X reference pulses which the PCM uses to calculate RPM and crankshaft position.
