IAC Valve, EBTCM, Engine Oil Level Sensor

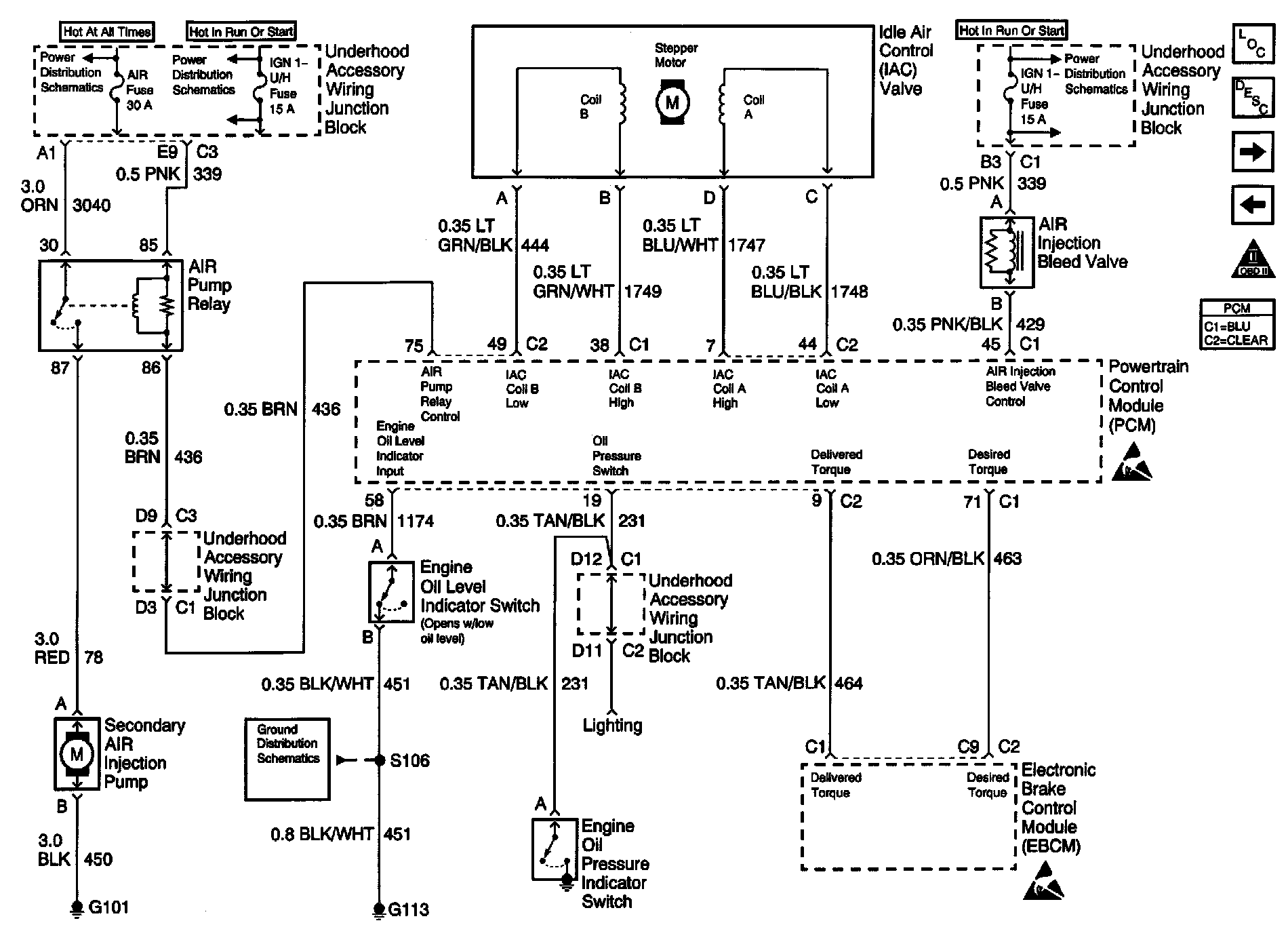

Engine Controls Schematics: IAC Valve, EBTCM, Engine Oil Level Sensor:
