Underhood Accessory Wiring Junction Block

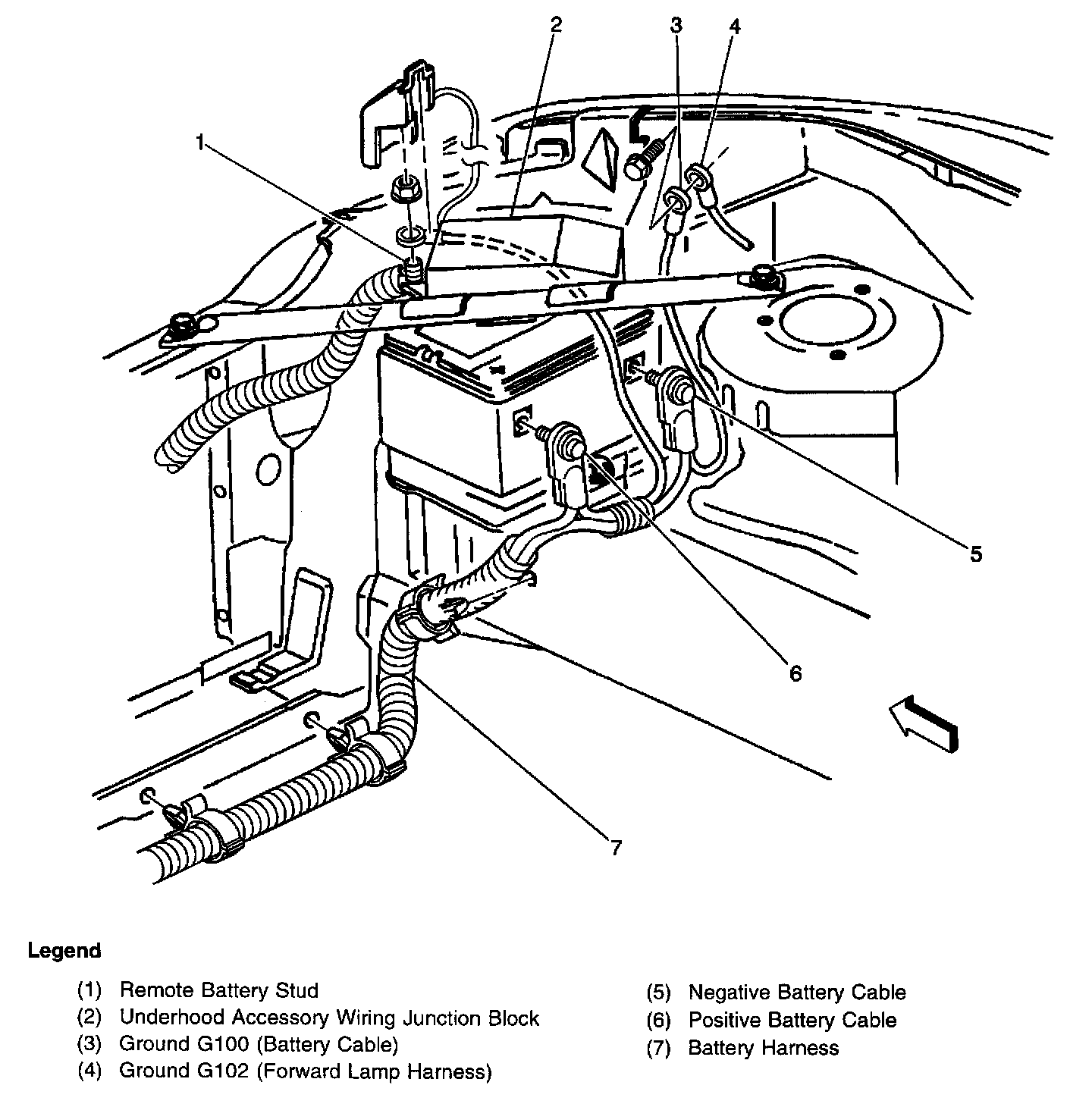

Locations View:

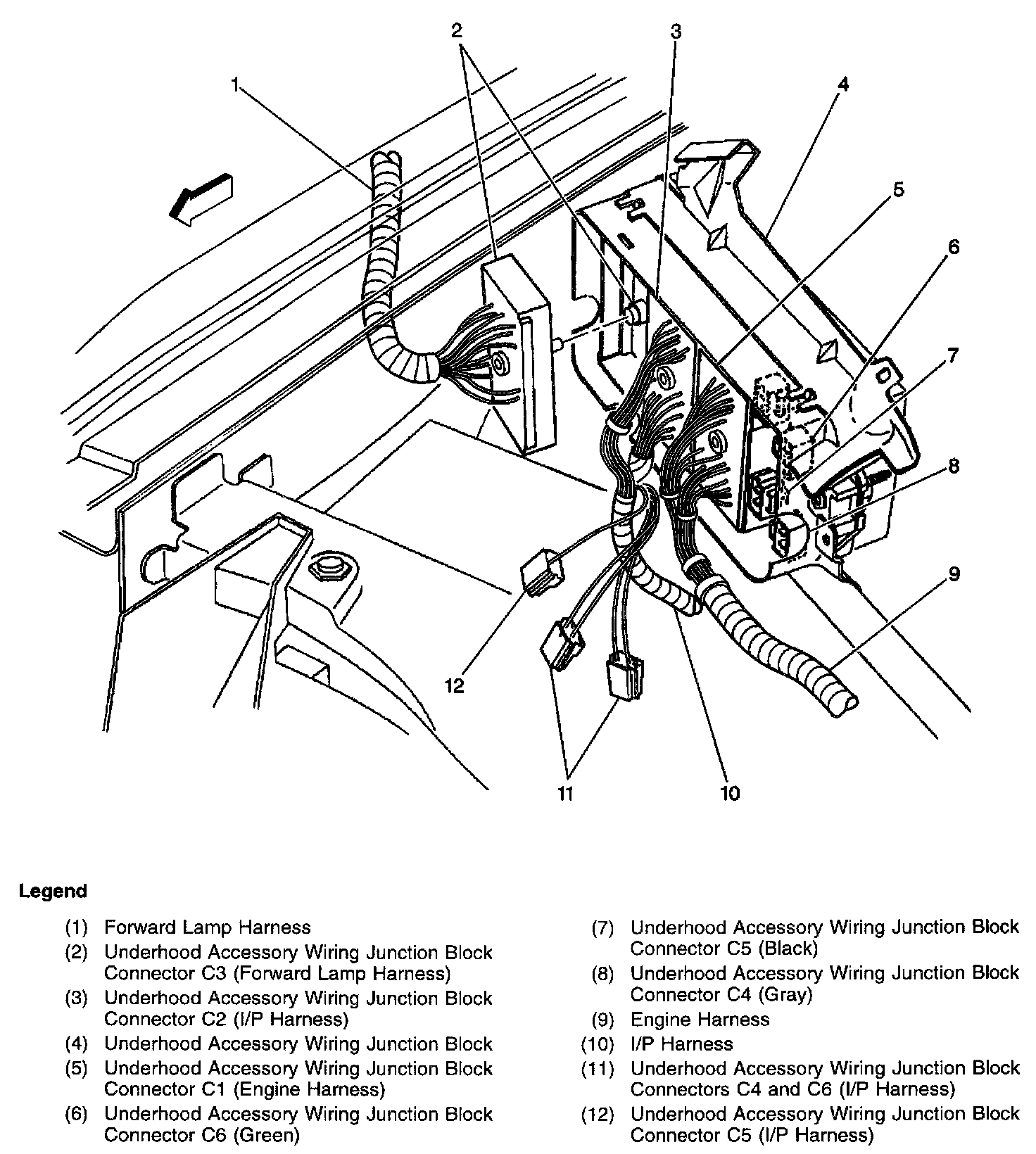

Locations View:

Engine compartment, front of the right wheelhouse, above the battery
