Fuses
>>
PWR MIR
PWR MIR

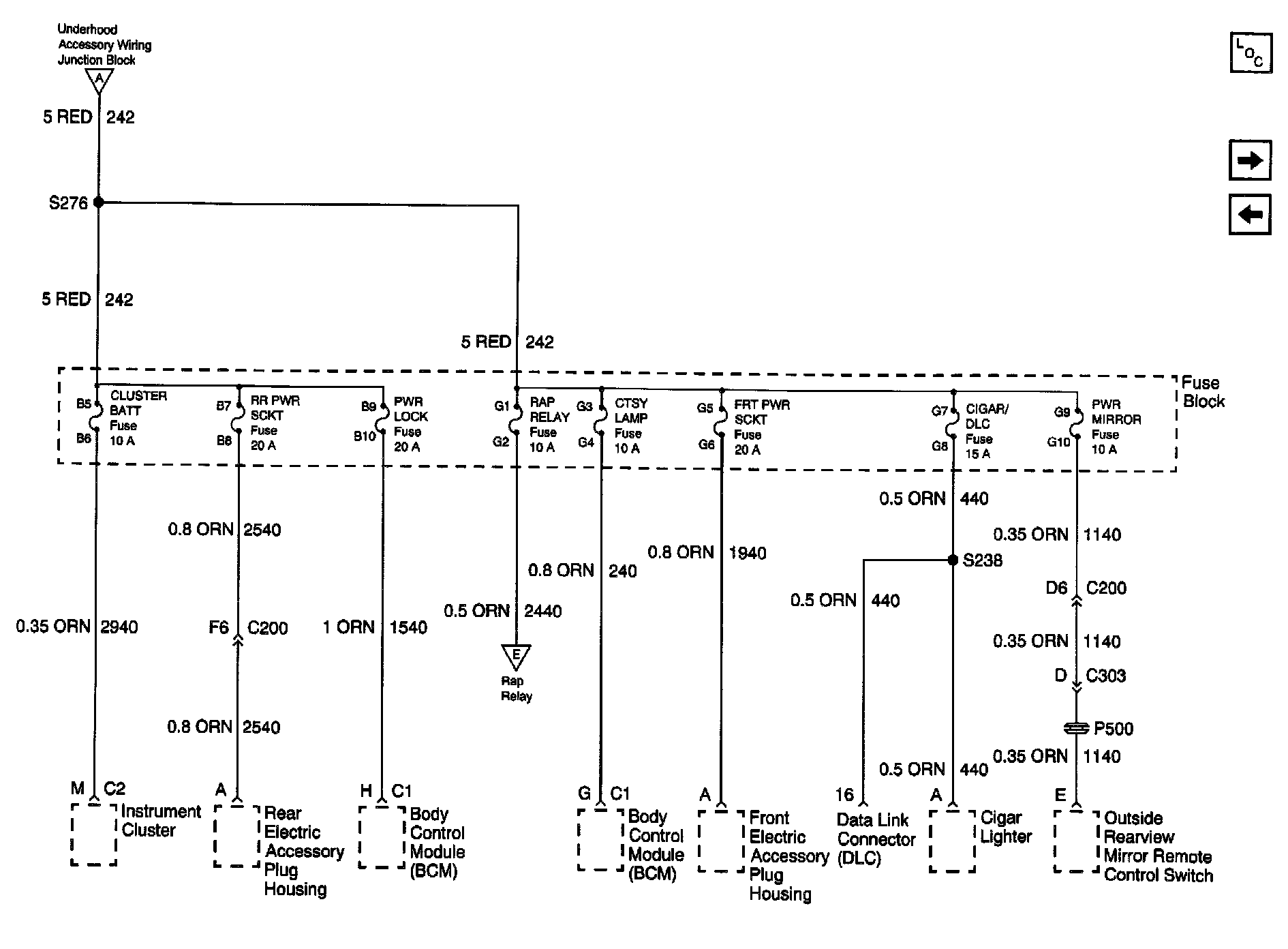

Power Distribution Schematics: Cluster BATT, RR PWR SCKT, PWR Lock, Rap Relay, CTSY Lamp, FRT PWR SCKT, Cigar/DLC And PWR Mirror Fuses:

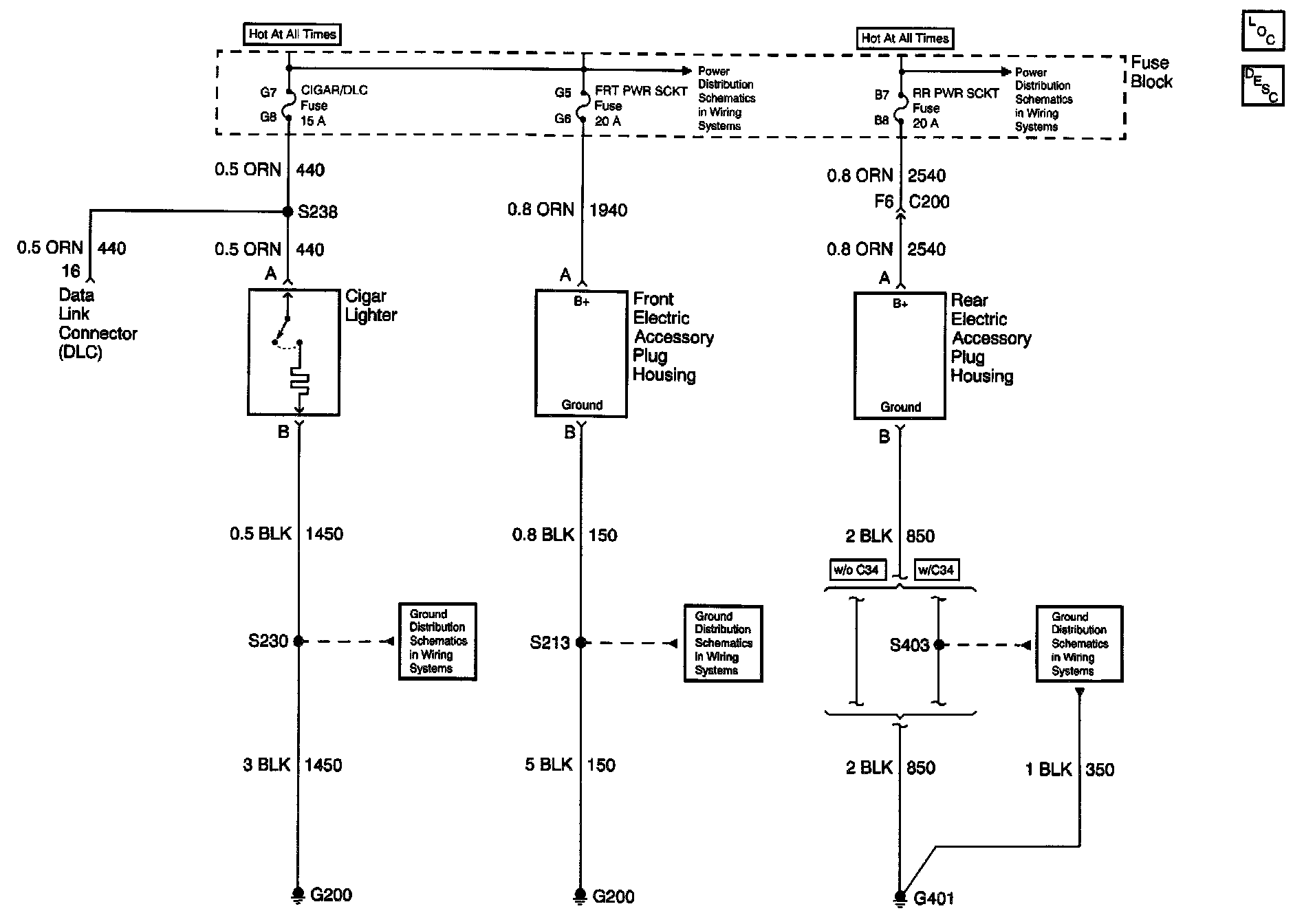

Cigar Lighter/Auxiliary Outlets Schematics:
