"I" Continuation

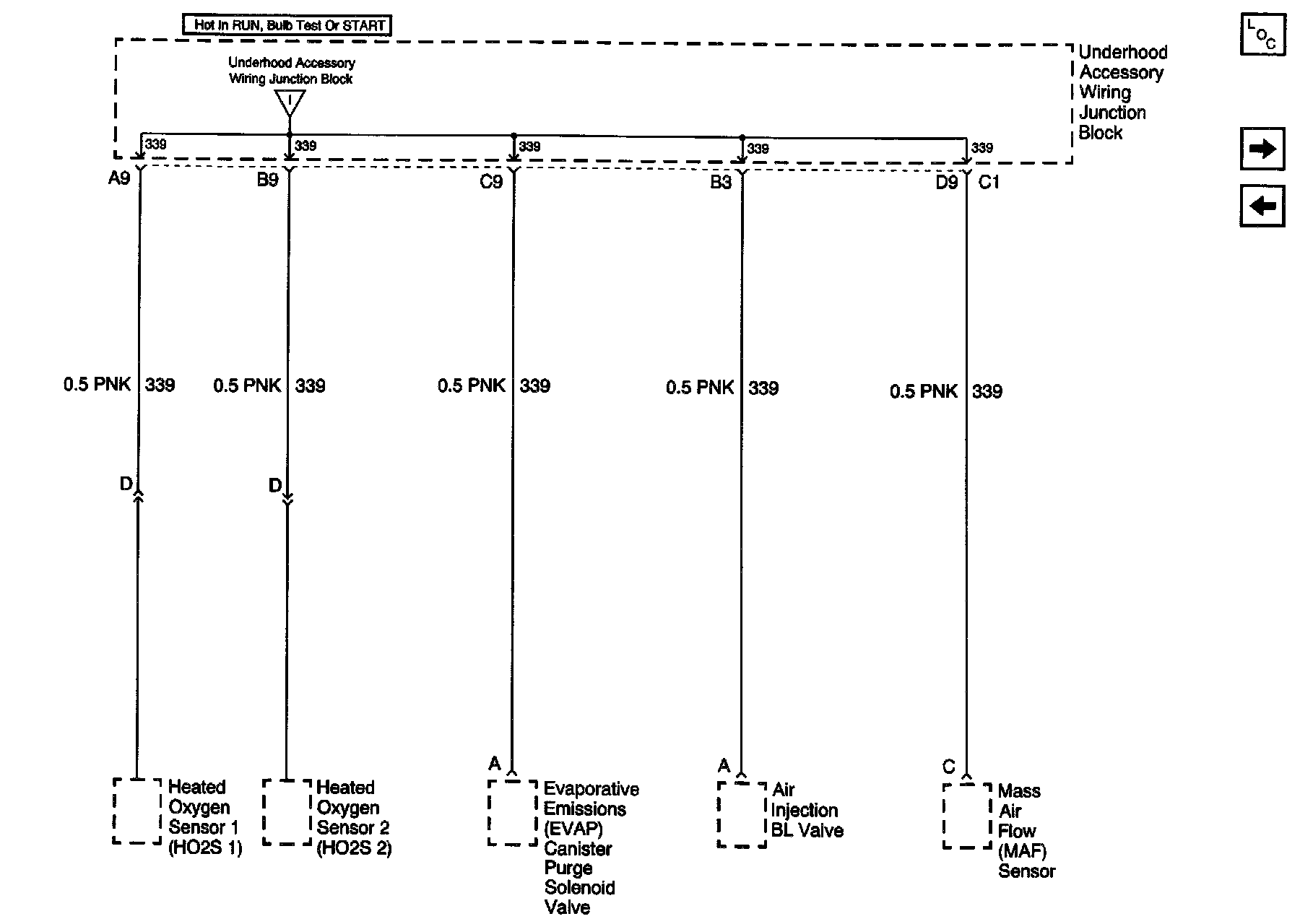

Power Distribution Schematics: Under Accessory Wiring Junction Block And IGN 1 Fuse:
