IGN SW
IGN SW

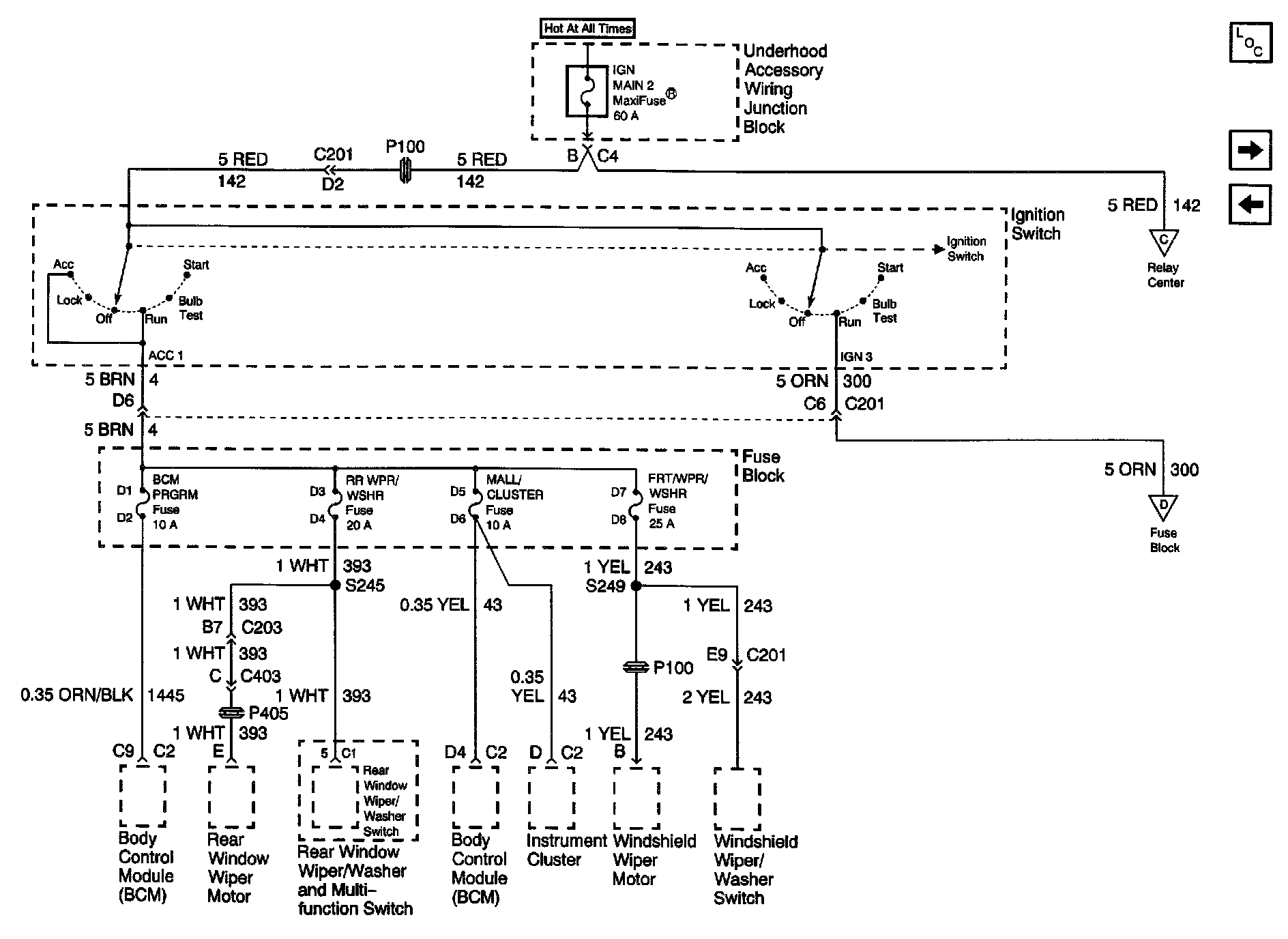

Power Distribution Schematics: Ignition Switch, IGN Main 2, BCM PRORM, RR WPR/WSHR, MALL/Cluster And FRT/WPR/WSHR Fuses:
