Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Power Distribution Diagrams
>>
Schematics By Component Name
>>
Fuses
>>
HDLMP
HDLMP

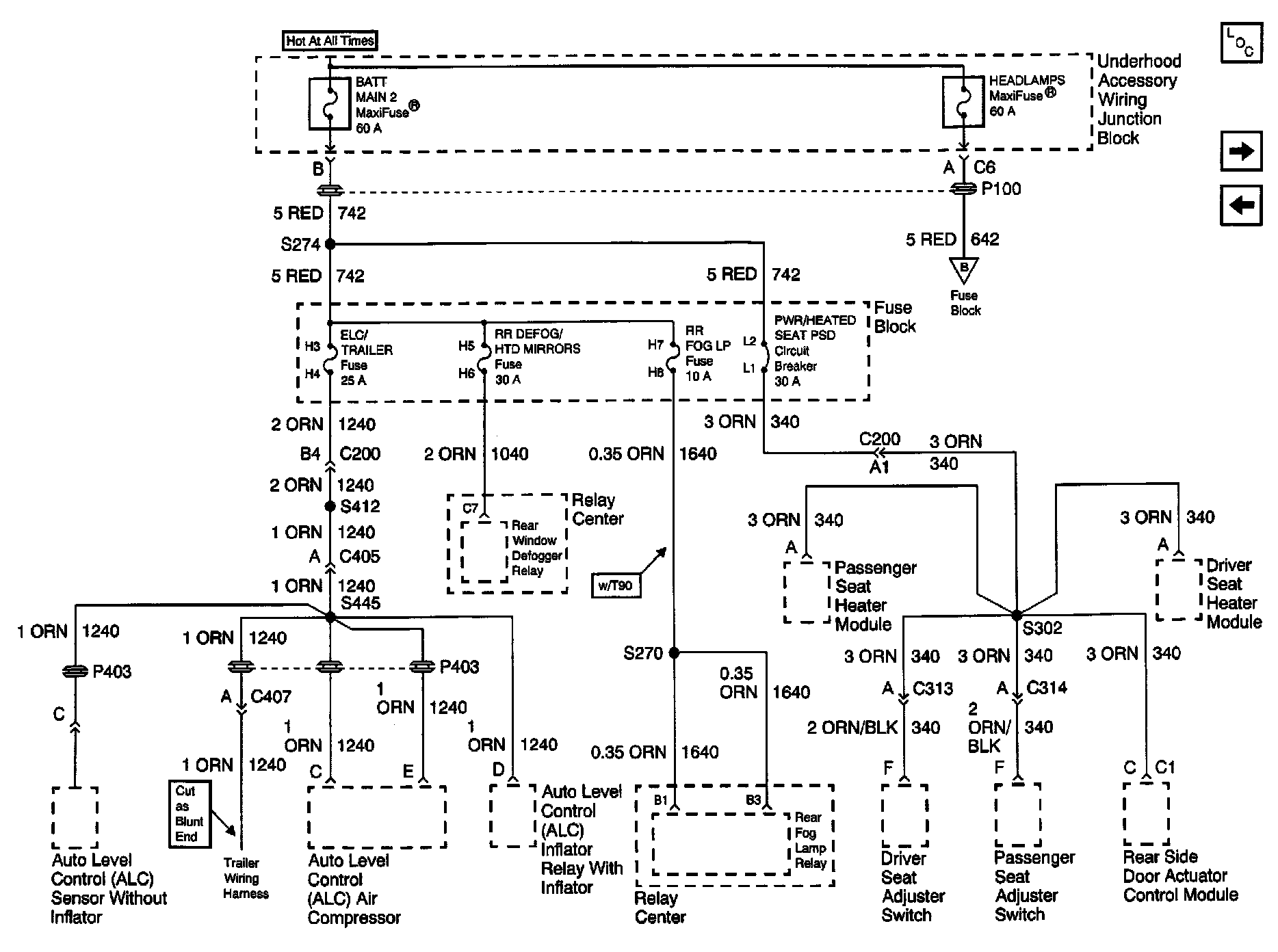

Power Distribution Schematics: BATT Main 2, Headlamps, ELC/Trailer, RR Defog/HTP Mirrors And RR Fog LP Fuses And PWR/Heated Seat PSD Circuit Breaker:
