Fuses
>>
DRL
DRL

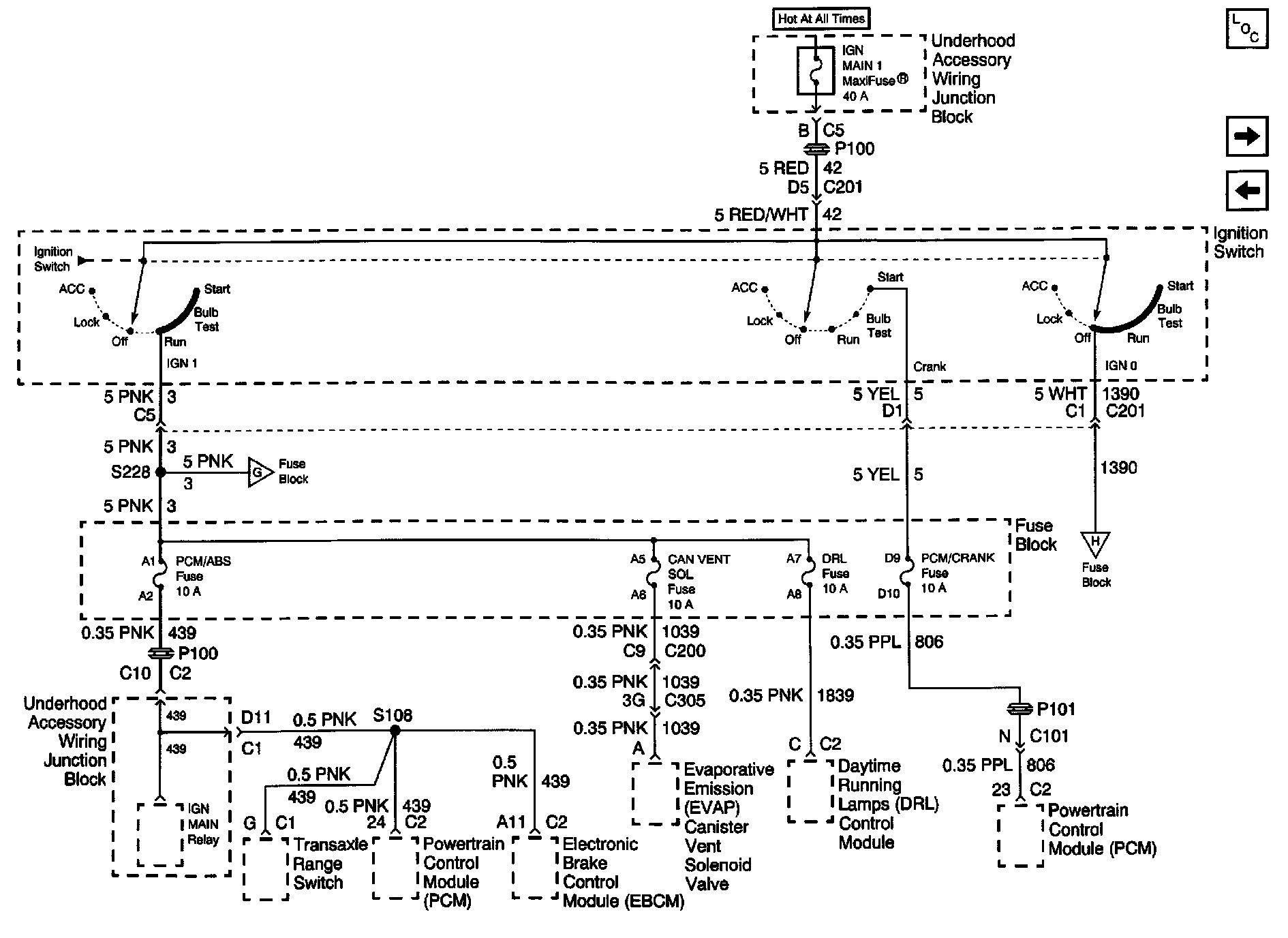

Power Distribution Schematics: Ignition Switch IGN Main Relay, IGN Main 1, PCM/ABS, CONVENT SOL, DRL, And PCM/Crank Fuses:
