DIC

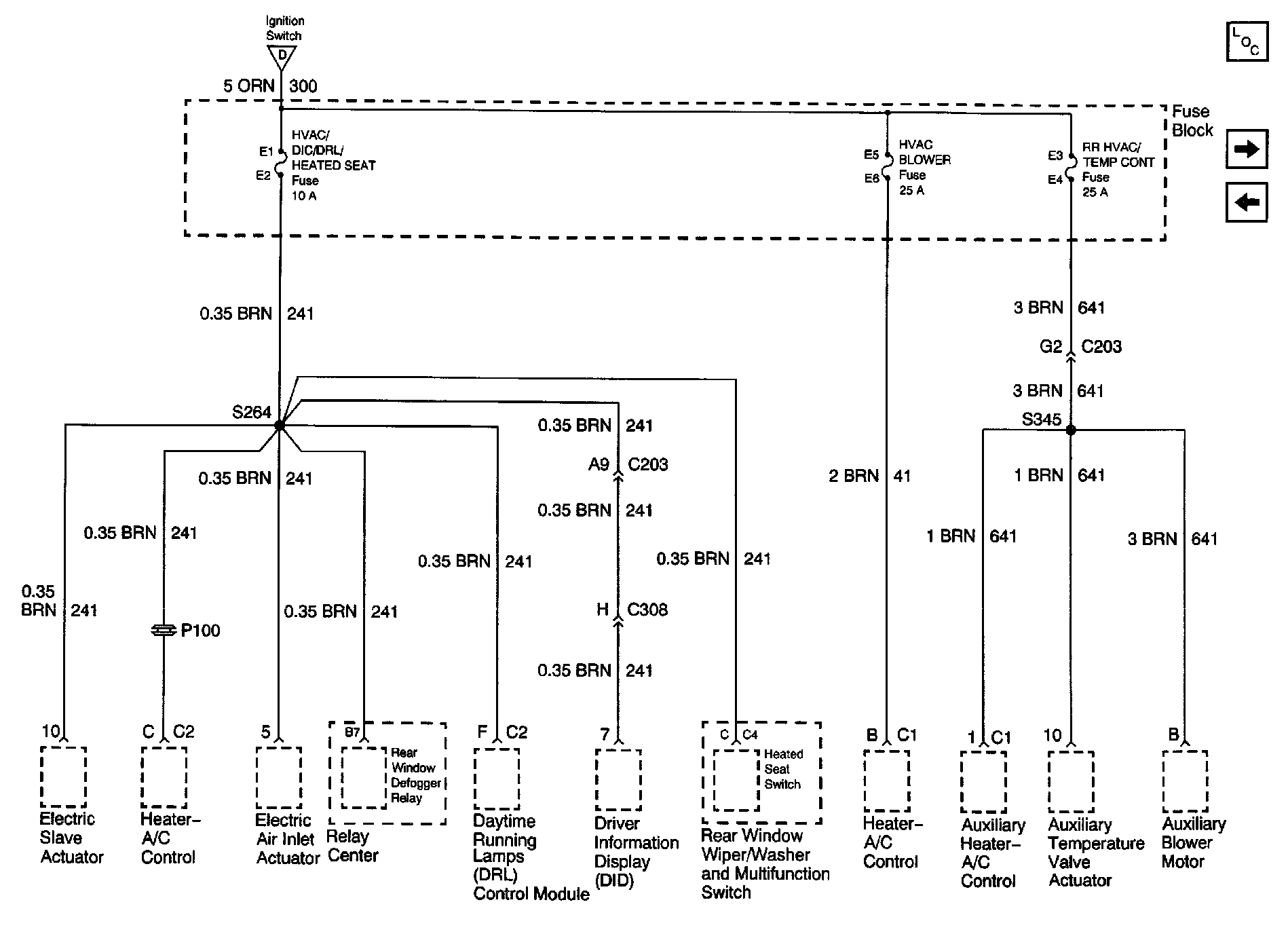

Power Distribution Schematics: HVAC/DIC/DRL/Heated Seat, HVAC Blower And RR HVAC/TEMP CONT Fuses:
