Under Accessory Wiring Junction Block and INJ Fuse

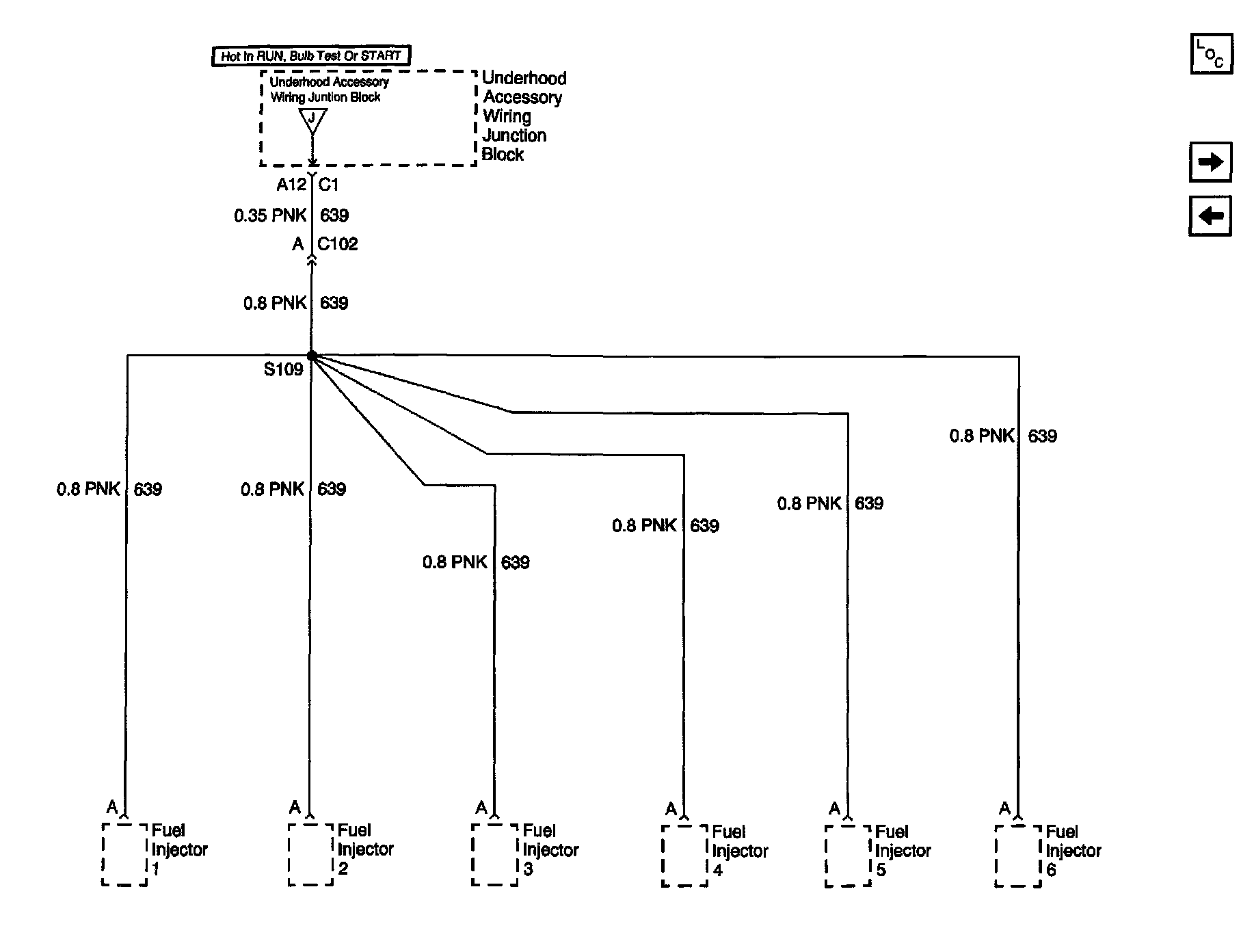

Power Distribution Schematics: Under Accessory Wiring Junction Block And INJ Fuse:
