Stop LP, HAZ, and PassKey Fuses

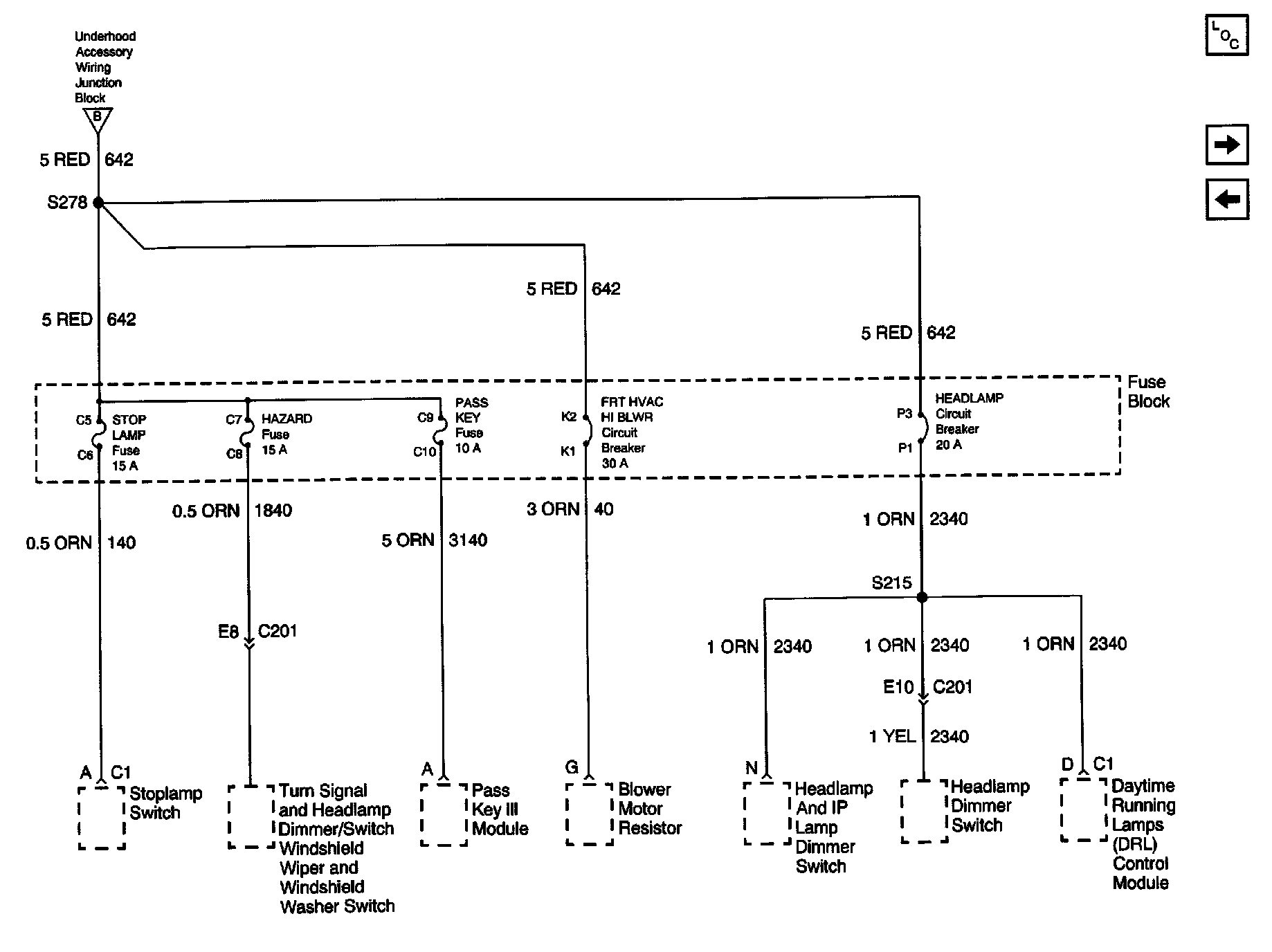

Power Distribution Schematics: Stop Lamp, Hazard, And PassKey Fuses, FRT HVAC MI BLWR And Headlamp Circuit Breakers:
