POWER WINDOWS

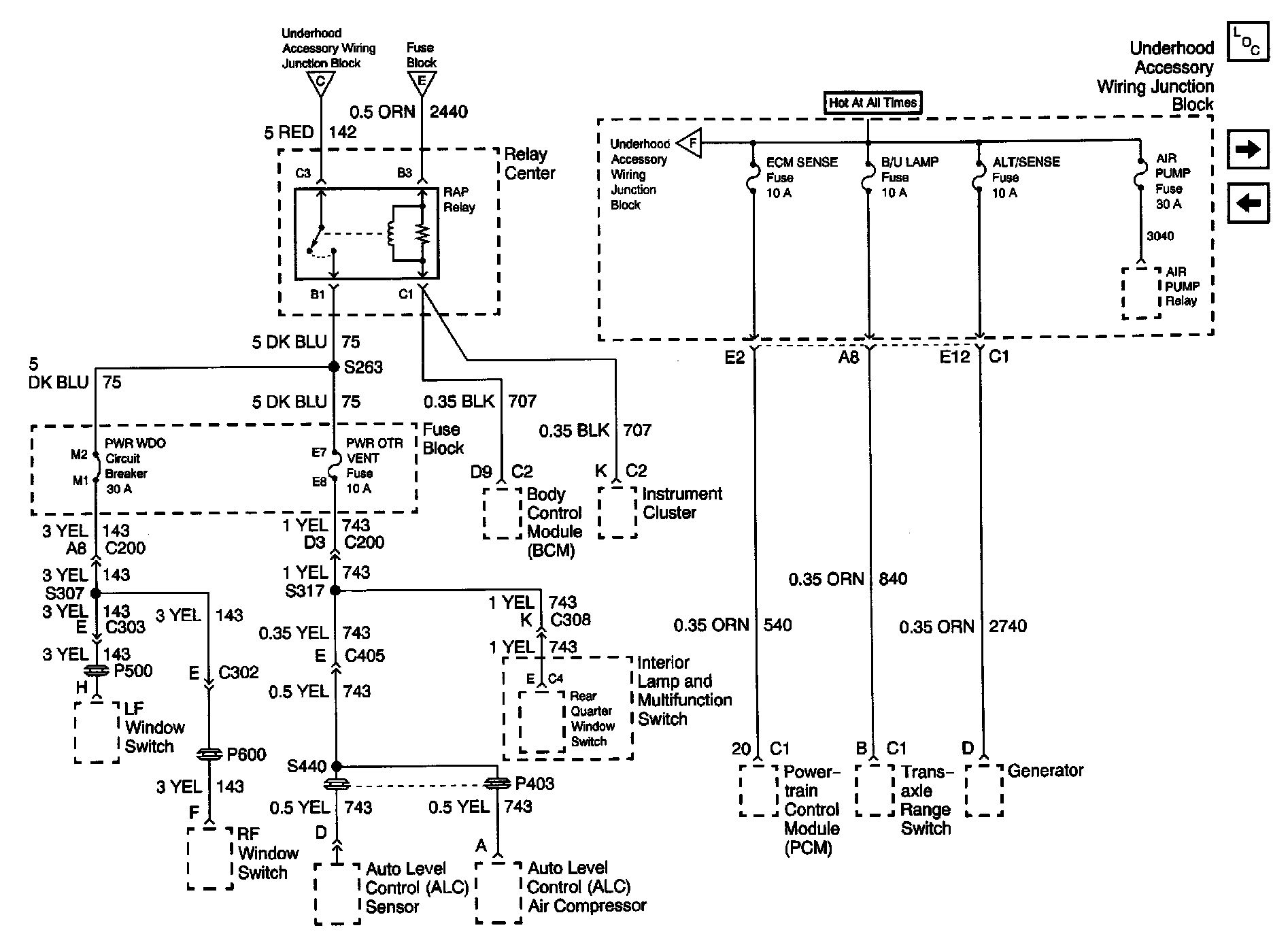

Power Distribution Schematics: Underhood Accessory Wiring Junction Block, Relay Center, PWR WDO And PWR OTR Vent Fuses:
