Inlet Pipe to Auxiliary Coolant Pump Hose Replacement

REMOVAL PROCEDURE




1. Drain Cooling system. Refer to Draining and Filling Cooling System in Cooling System. Service and Repair
2. Remove the wiper module cover.
3. Remove the air cleaner duct and cover.
4. Rotate the engine forward and secure. Refer to Rotating the Engine for Service Access in Engine. Removal and Replacement

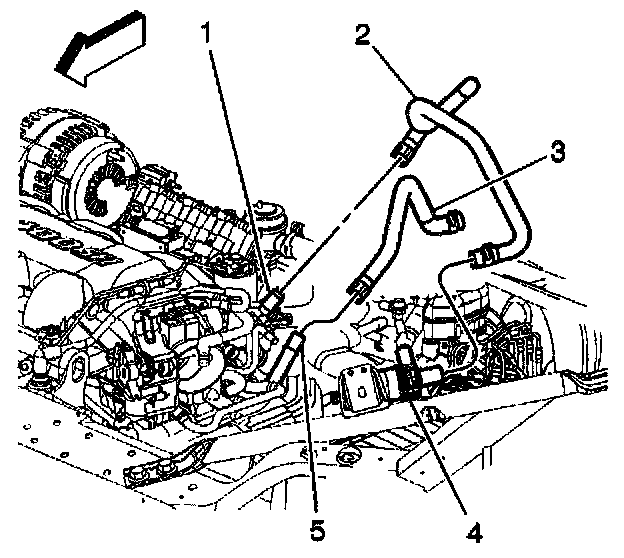

5. Disconnect the inlet pipe to auxiliary coolant pump hose from the inlet pipe.
6. Disconnect the inlet pipe to auxiliary coolant pump hose from the auxiliary coolant pump (4).
7. Remove the inlet pipe to auxiliary coolant pump hose (3).

INSTALLATION PROCEDURE




1. Install the inlet pipe to auxiliary coolant pump hose (3).
2. Connect the inlet pipe to auxiliary coolant pump hose to the auxiliary coolant pump (4).
3. Connect the inlet pipe to auxiliary coolant pump hose to the inlet pipe.
4. Rotate the engine rearward to the proper position. Refer to Rotating the Engine for Service Access in Engine. Removal and Replacement
5. Install the air cleaner cover and duct.




6. Install the wiper module cover.
7. Refill the cooling system.
