Heater Hose Replacement - Outlet

REMOVAL PROCEDURE




1. Remove the air cleaner cover and duct assembly.
2. Drain the cooling system. Refer to Draining and Filling Cooling System in Cooling System. Service and Repair
3. Disconnect the wiper linkage. Refer to Wiper Motor Crank Arm Replacement in Wiper Washer Systems. Wiper Motor Crank Arm Replacement

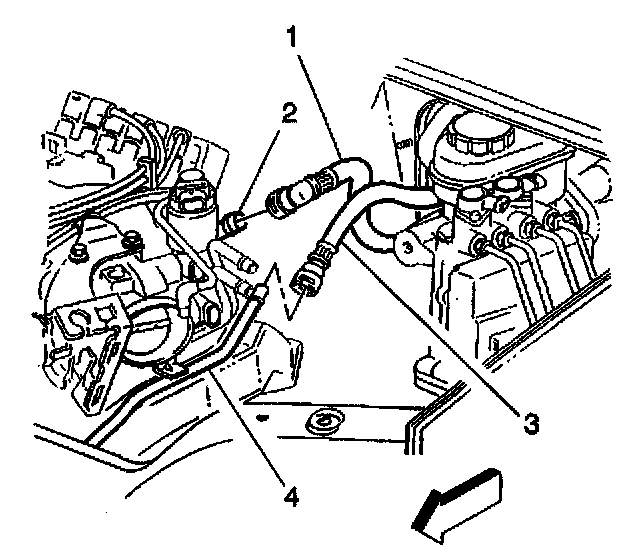

4. Disconnect the outlet hose (3) from the outlet pipe (4).




5. Disconnect the outlet hose from the heater core.
6. Remove the outlet hose.

INSTALLATION PROCEDURE




1. Install the outlet hose.
2. Connect the outlet hose to the heater core and position the hose clamp as indicated.




3. Connect the outlet hose (3) to the outlet pipe (4).
4. Refill the cooling system.
5. Connect the wiper linkage. Refer to Wiper Motor Crank Arm Replacement in Wiper Washer Systems. Wiper Motor Crank Arm Replacement
6. Install the air cleaner cover and dust assembly.
