VCP, VES Relay, and G210

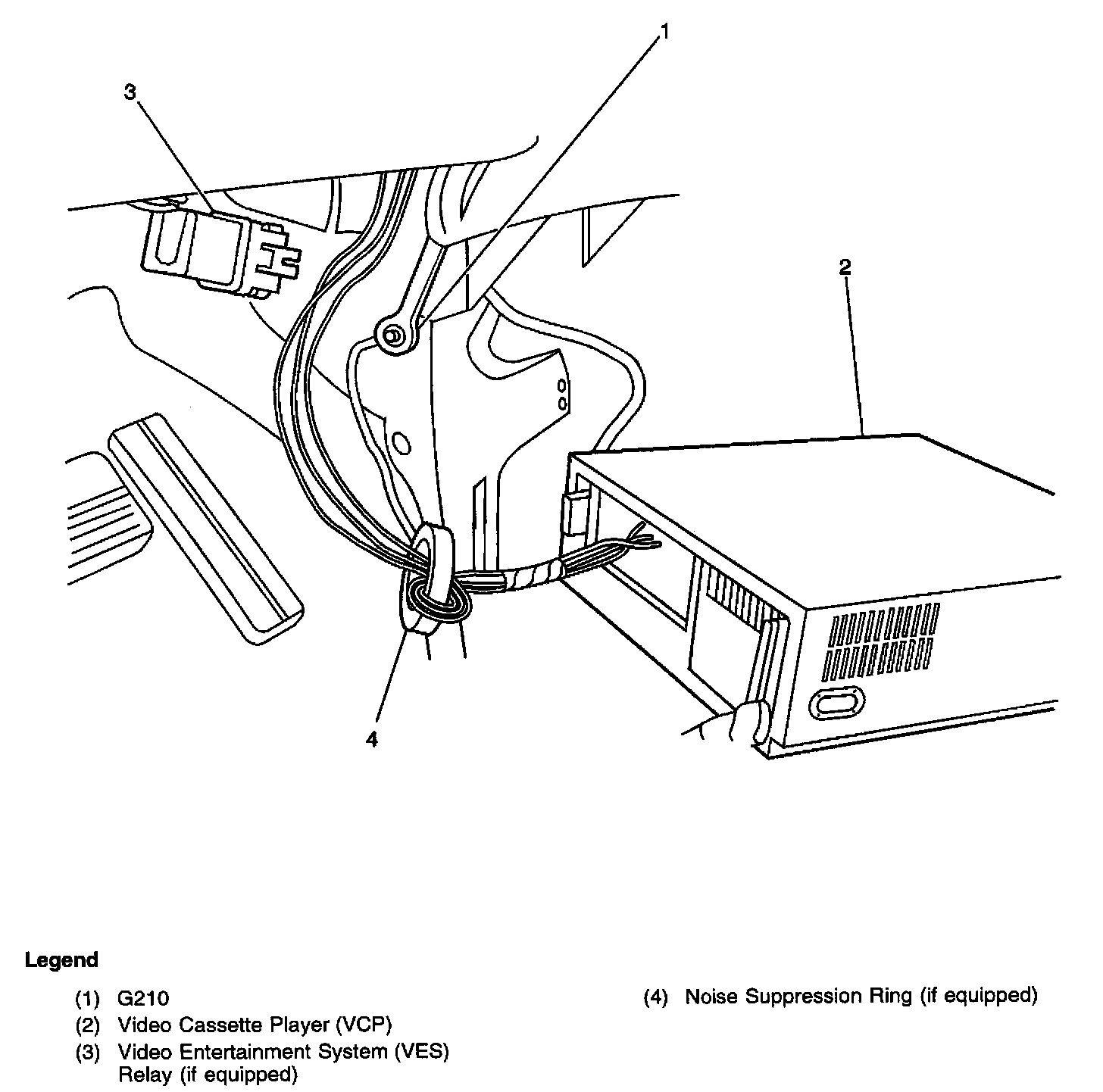

Harness Routing Views (Video Cassette Player (VCP), Video Entertainment System (VES) Relay, And G210):
