Home >> Chevrolet >> 2000 >> Venture V6-3.4L VIN E >> Repair and Diagnosis >> Locations >> Harness Locations >> Fuel Tank, Below LH Side, Middle of Vehicle

Fuel Tank, Below LH Side, Middle of Vehicle

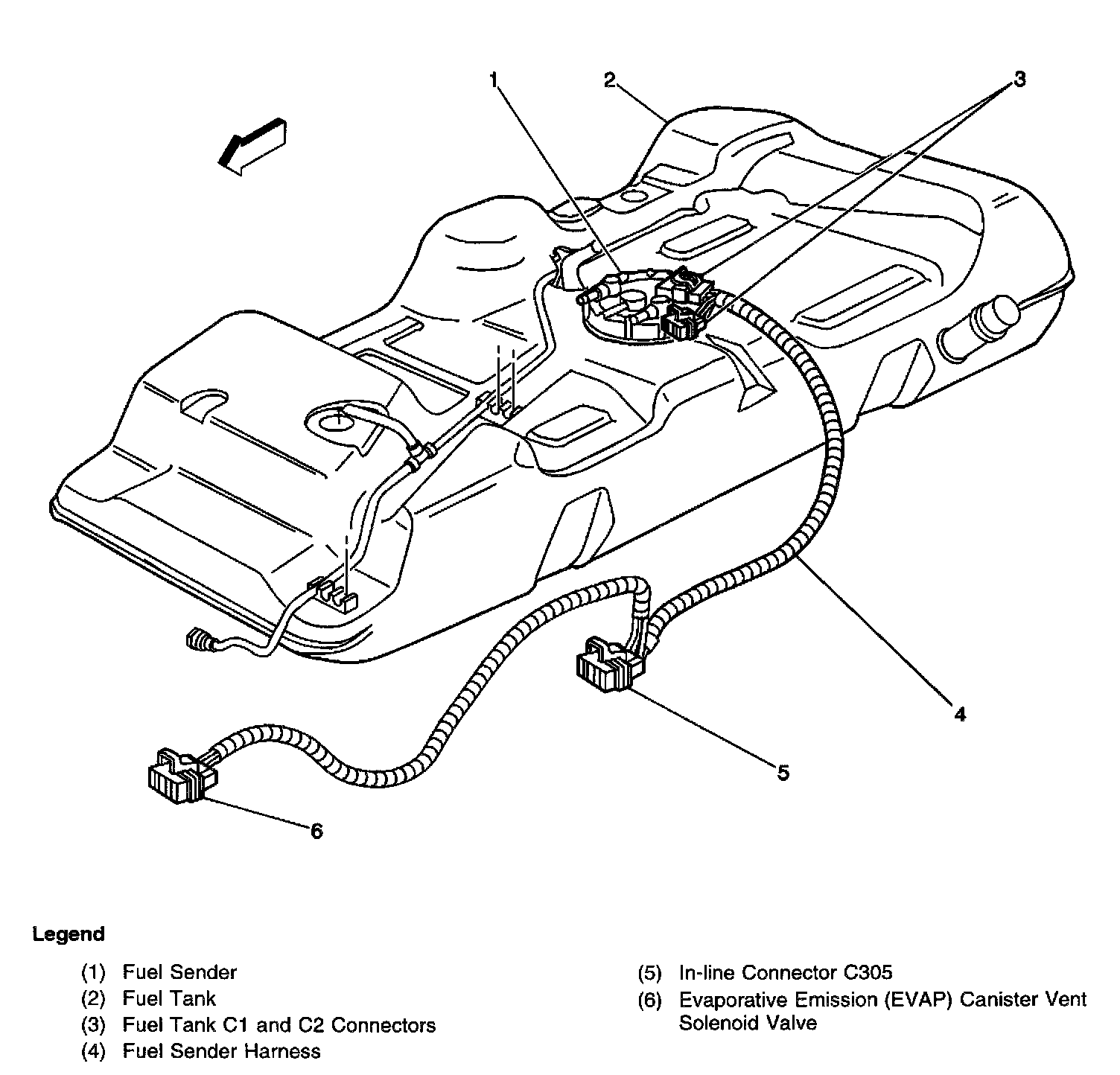

Harness Routing Views (Fuel Tank, Below LH Side, Middle of Vehicle):
