Home >> Chevrolet >> 2000 >> Venture V6-3.4L VIN E >> Repair and Diagnosis >> Lighting and Horns >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Headlamps Inoperative - One Lamp >> Domestic

Domestic

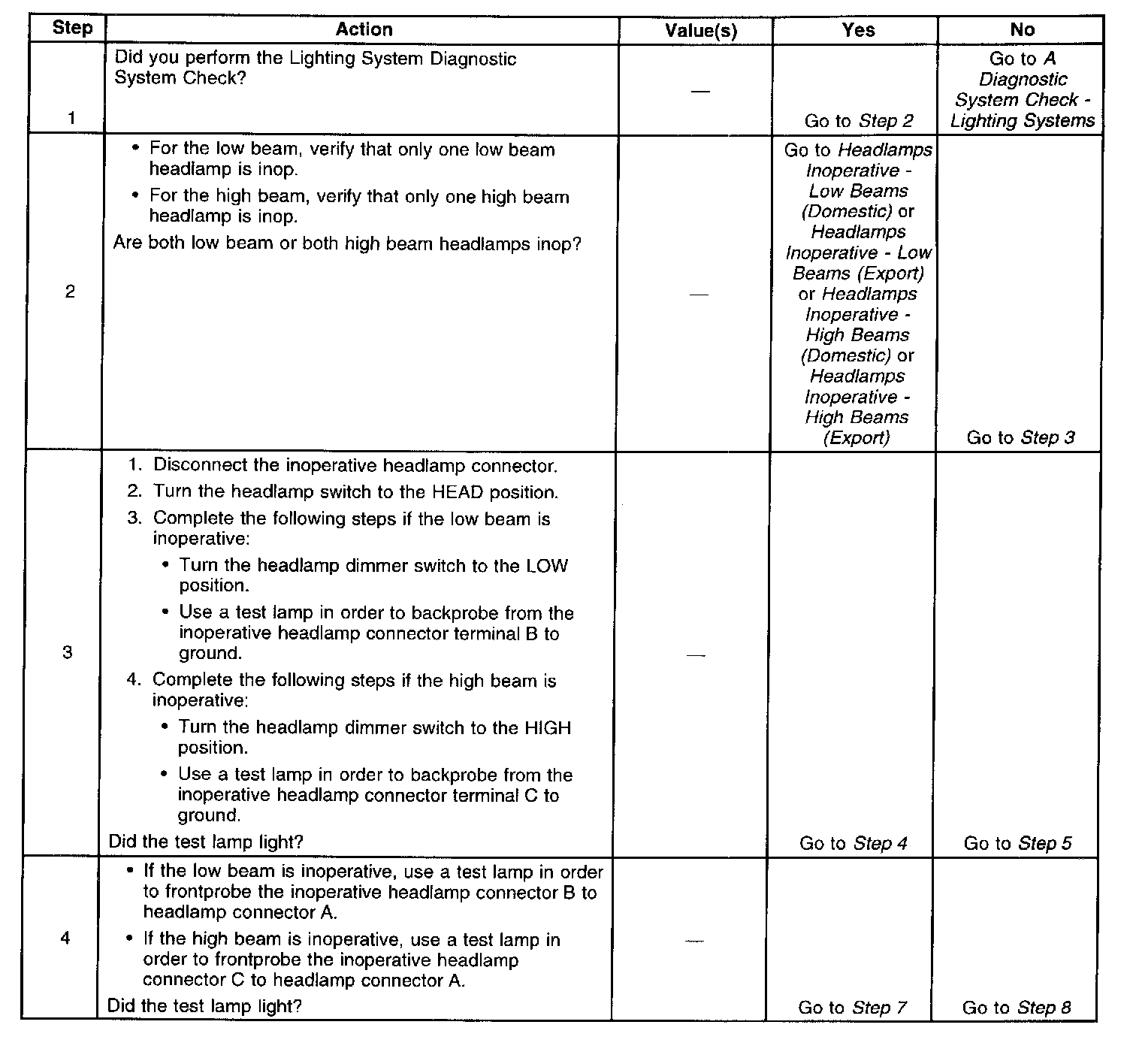

Diagnostic Chart (Part 1 Of 2):

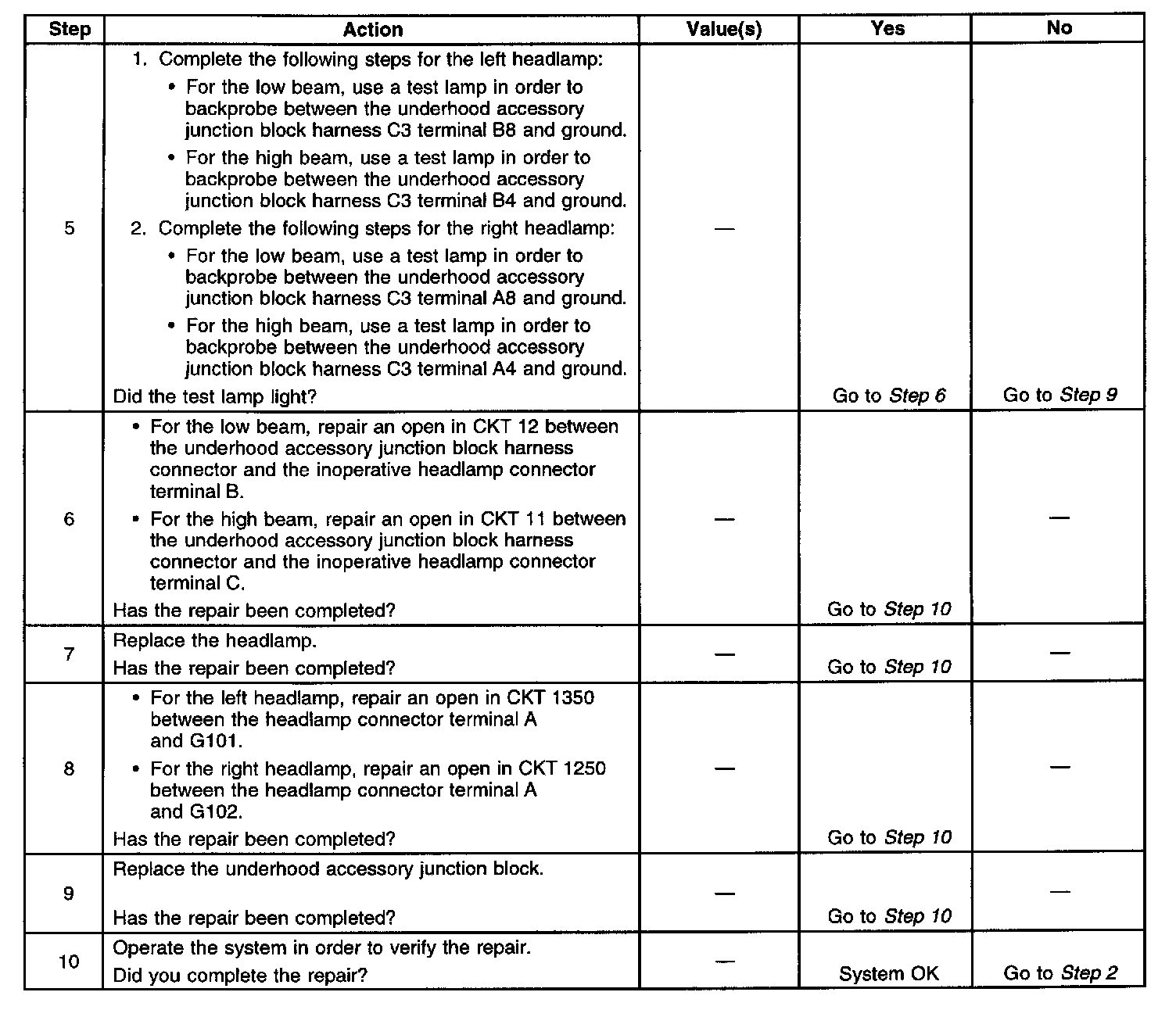

Diagnostic Chart (Part 2 Of 2):
