Courtesy Lamps Inoperative with Doors Open

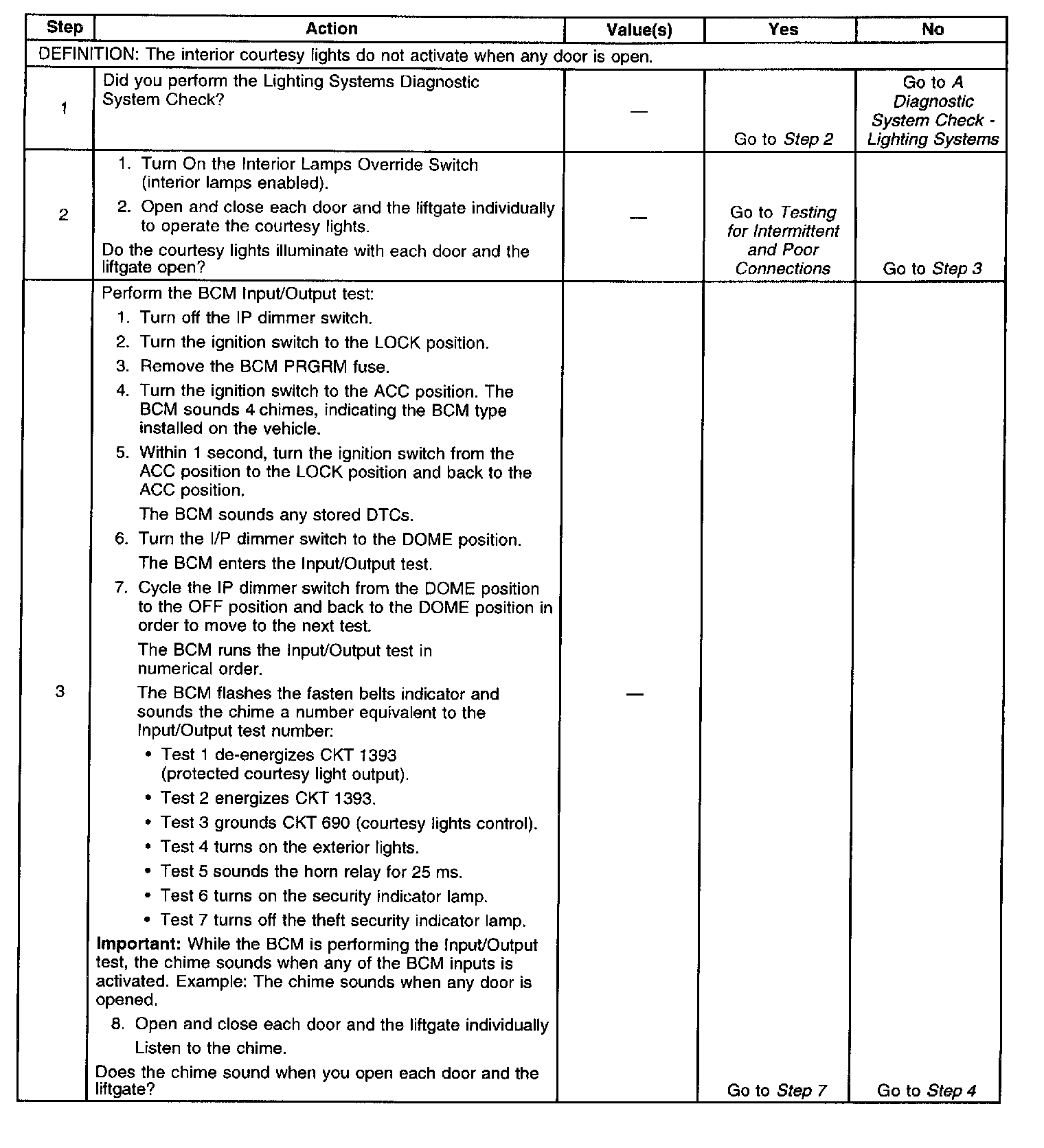

Diagnostic Chart (Part 1 Of 2):

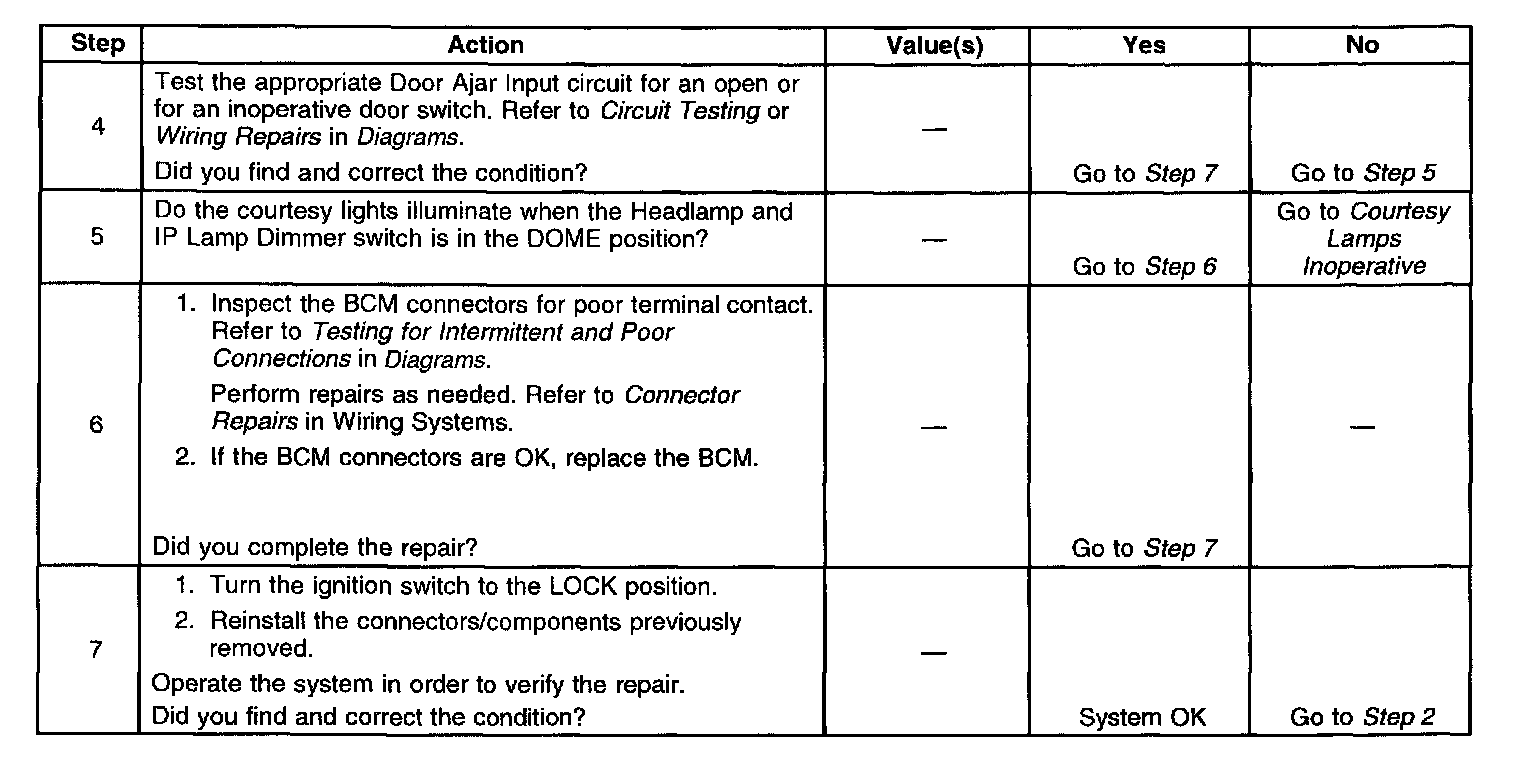

Diagnostic Chart (Part 2 Of 2):
