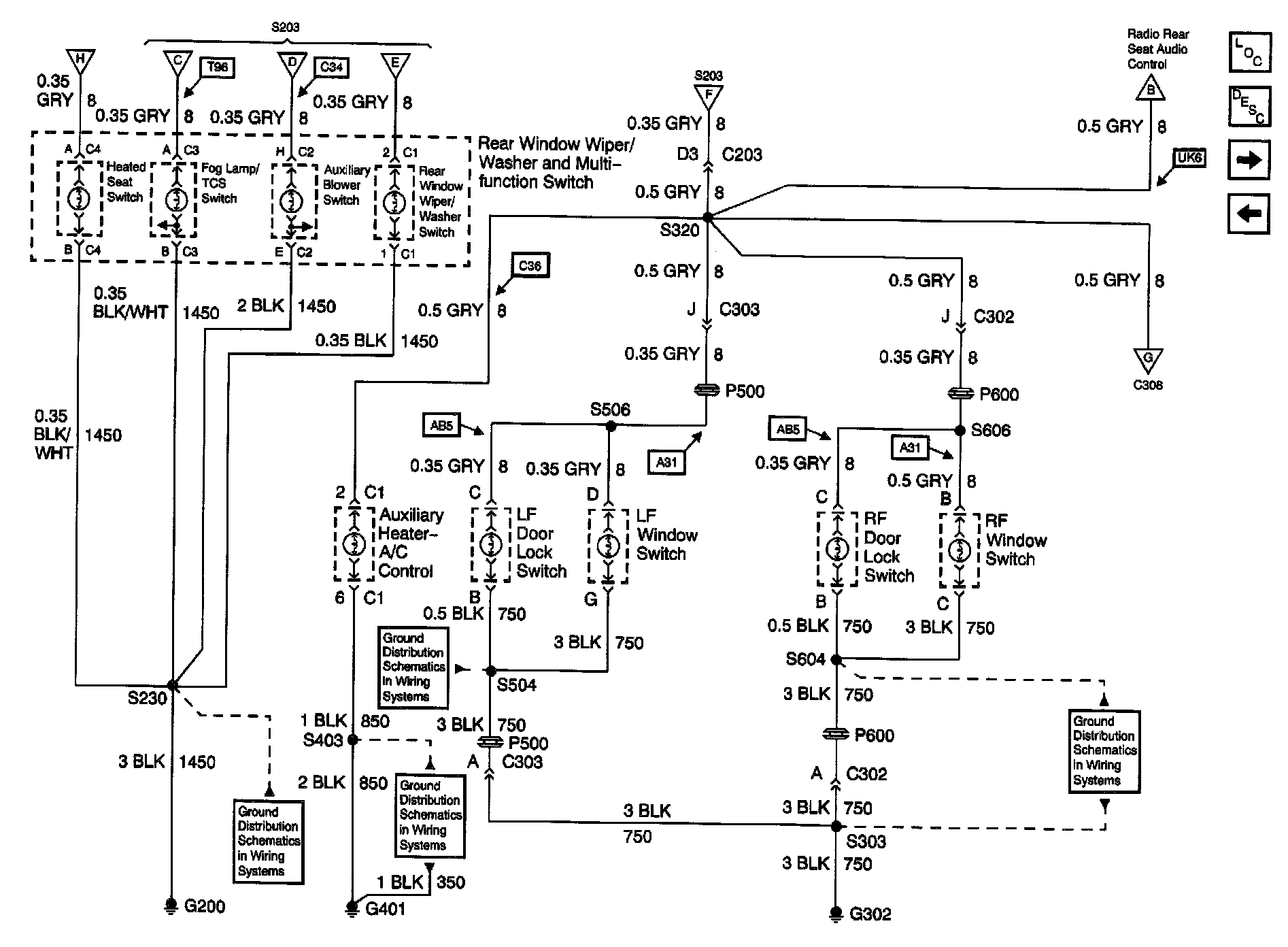

Rear Window Wiper/Washer and Multifunction Switch, Window and Door Lock Switches

Interior Lights Dimming Schematics: Rear Window Wiper/Washer And Multifunction Switch, Window Switches, Door Lock Switches:
