INTER LP & Multifunction SW, RR DR Latch, Release Actuator SW

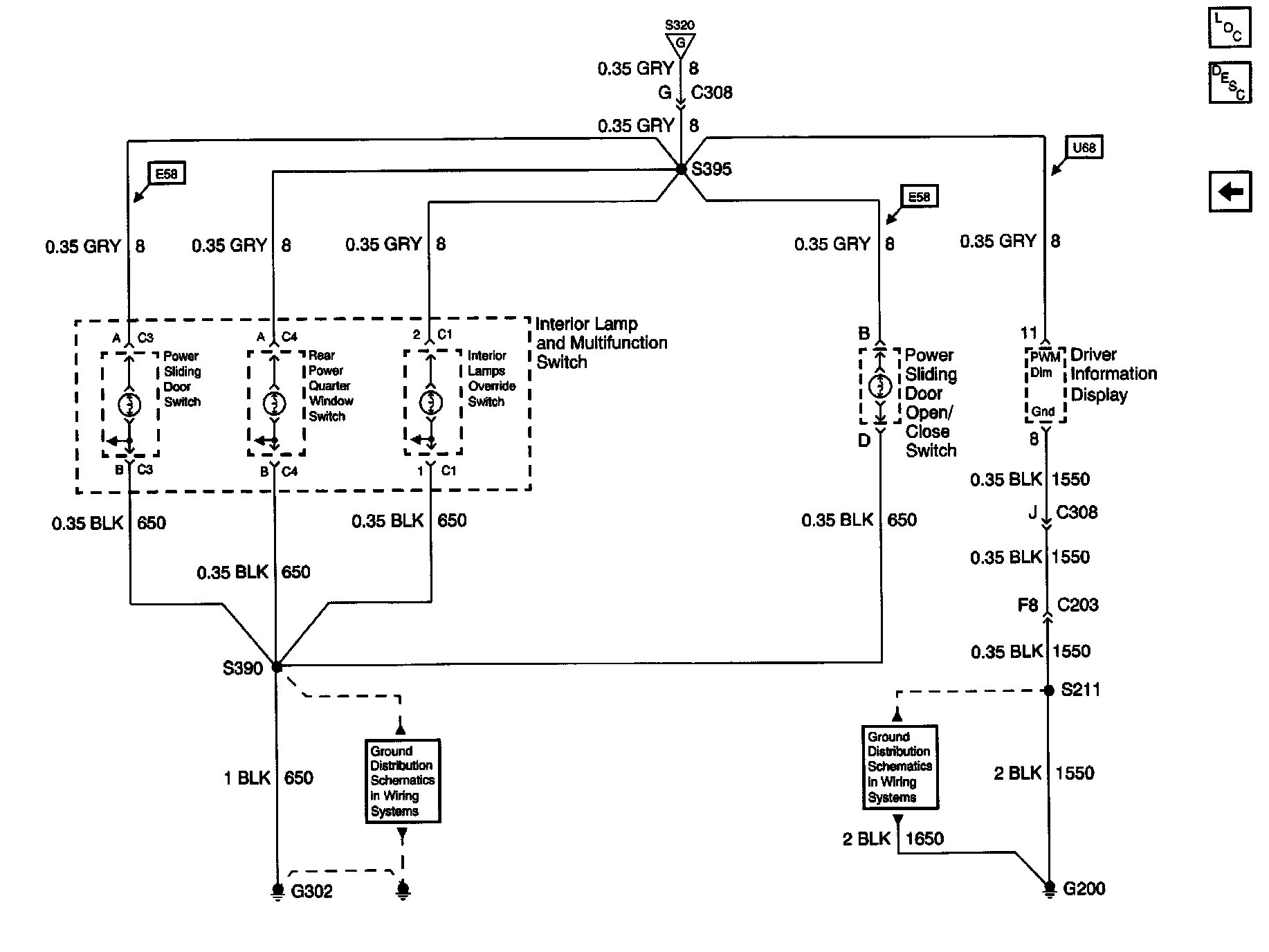

Interior Lights Dimming Schematics: Interior Lamp And Multifunction Switch, Right Rear Door Latch, Release Actuator Switch:
