Home >> Chevrolet >> 2000 >> Venture V6-3.4L VIN E >> Repair and Diagnosis >> Lighting and Horns >> Diagrams >> Electrical Diagrams >> Interior Lights >> Interior Lights Dimming Schematics >> Headlamp and IP Lamp Dimmer Switch, Driver Information Display

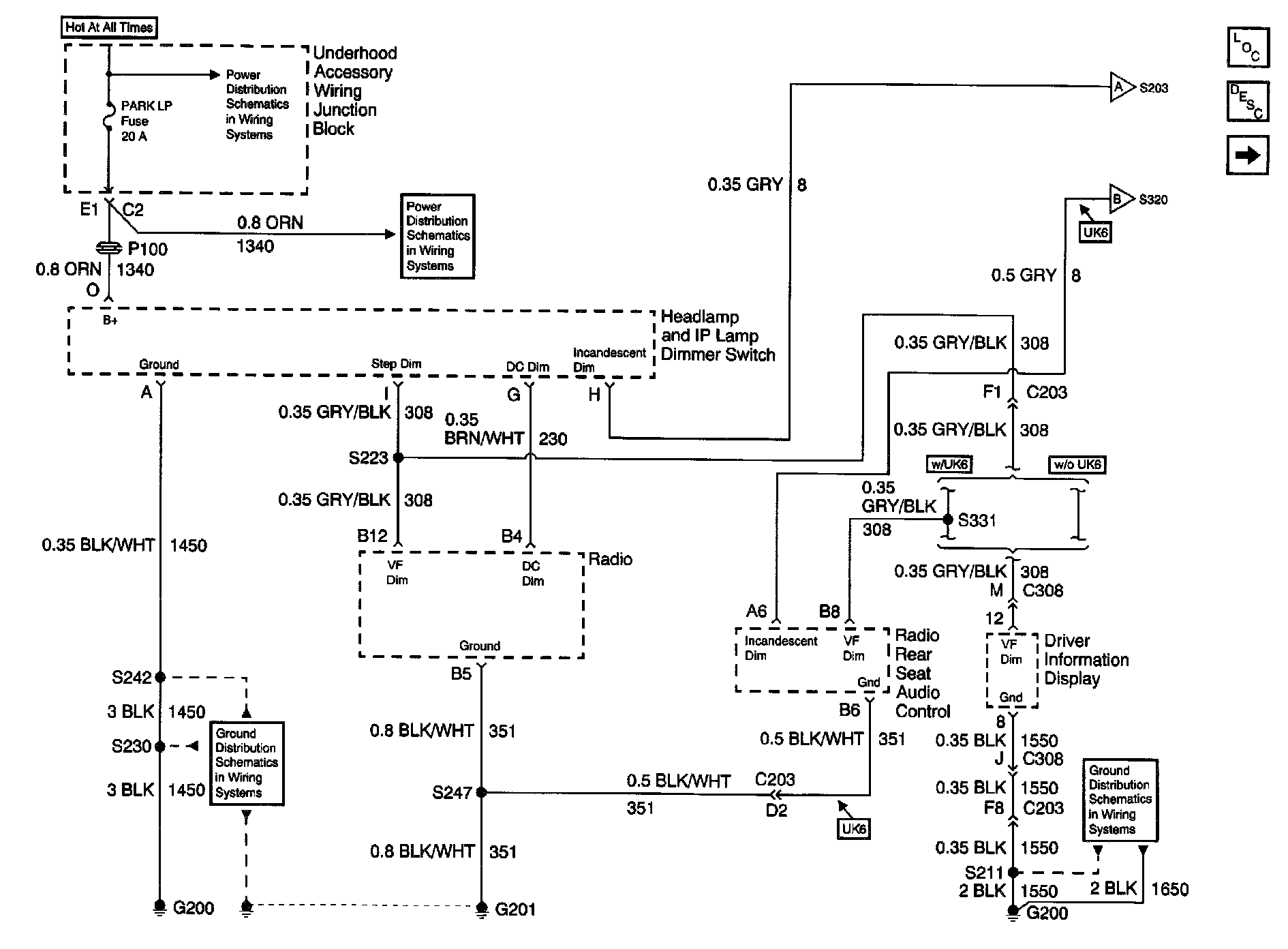

Headlamp and IP Lamp Dimmer Switch, Driver Information Display

Interior Lights Dimming Schematics: Headlamp And IP Lamp Dimmer Switch, Driver Information Display:
