Home >> Chevrolet >> 2000 >> Venture V6-3.4L VIN E >> Repair and Diagnosis >> Lighting and Horns >> Diagrams >> Electrical Diagrams >> Exterior Lights >> Domestic >> Fuse Block and G401

Fuse Block and G401

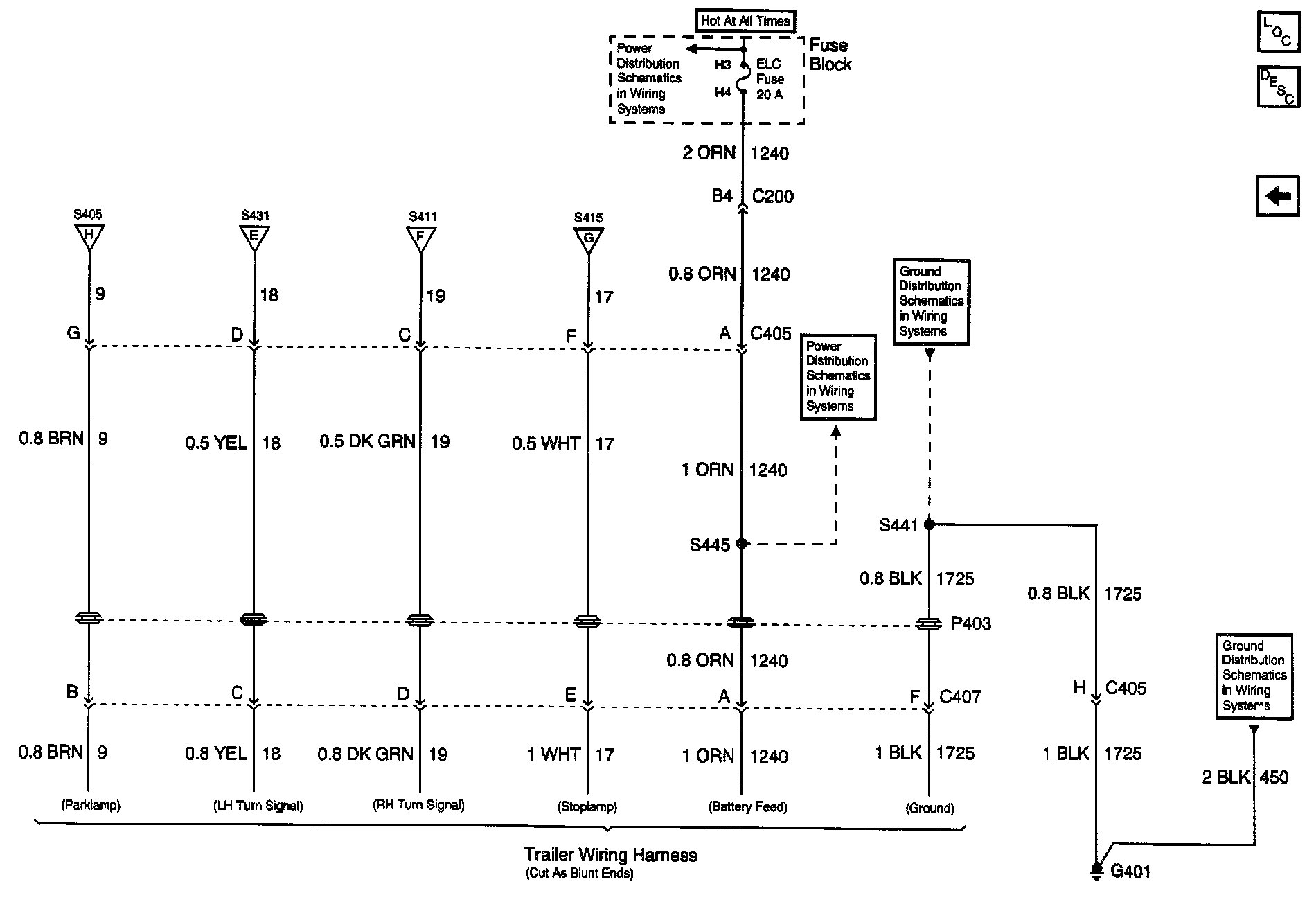

Exterior Lights Schematics (Domestic): Fuse Block And G401:
