Home >> Chevrolet >> 2000 >> Venture V6-3.4L VIN E >> Repair and Diagnosis >> Heating and Air Conditioning >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Symptoms - HVAC System - Manual >> Temperature Control Inoperative >> Front and Rear

Front and Rear

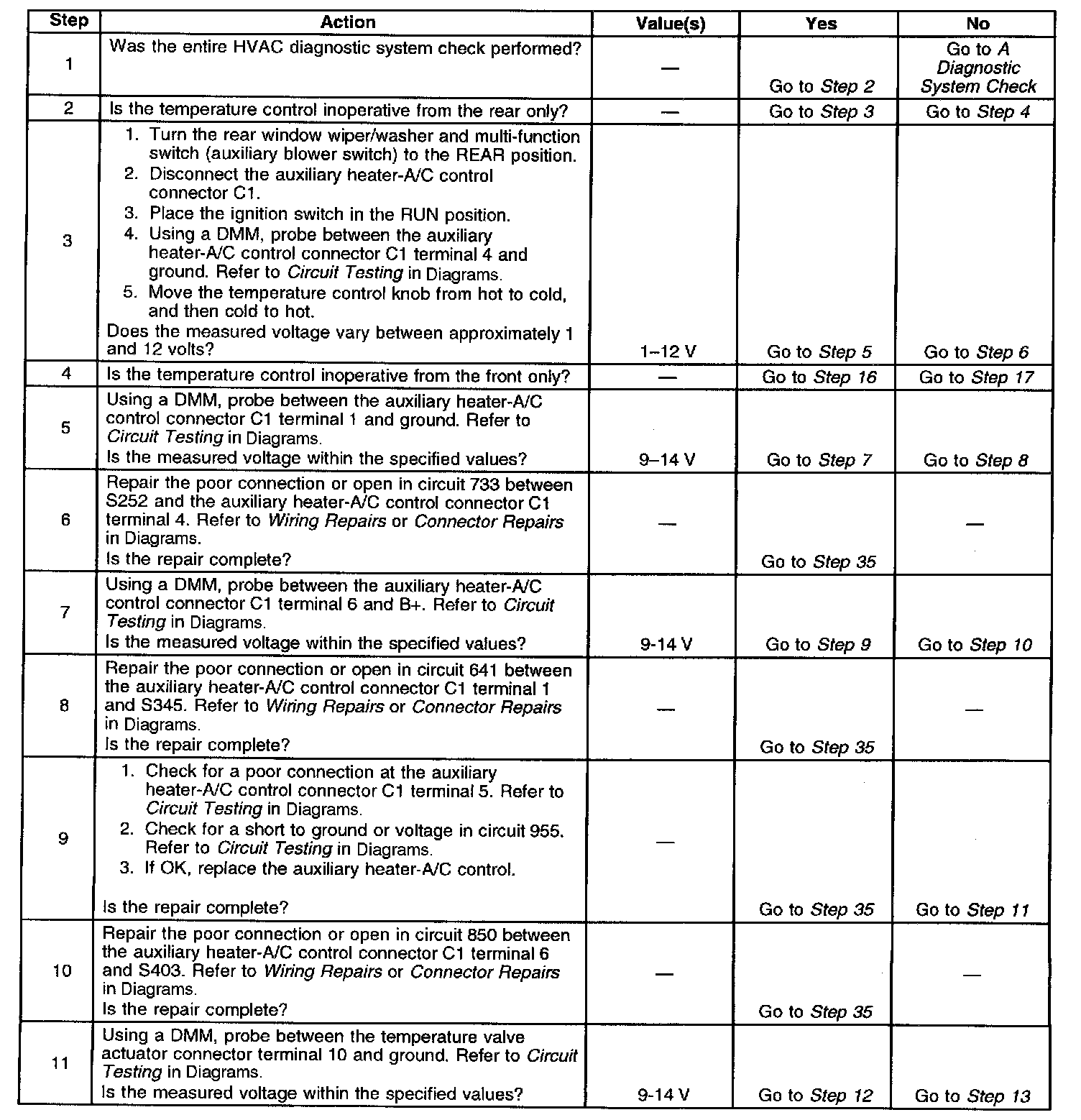

Steps 1-11:

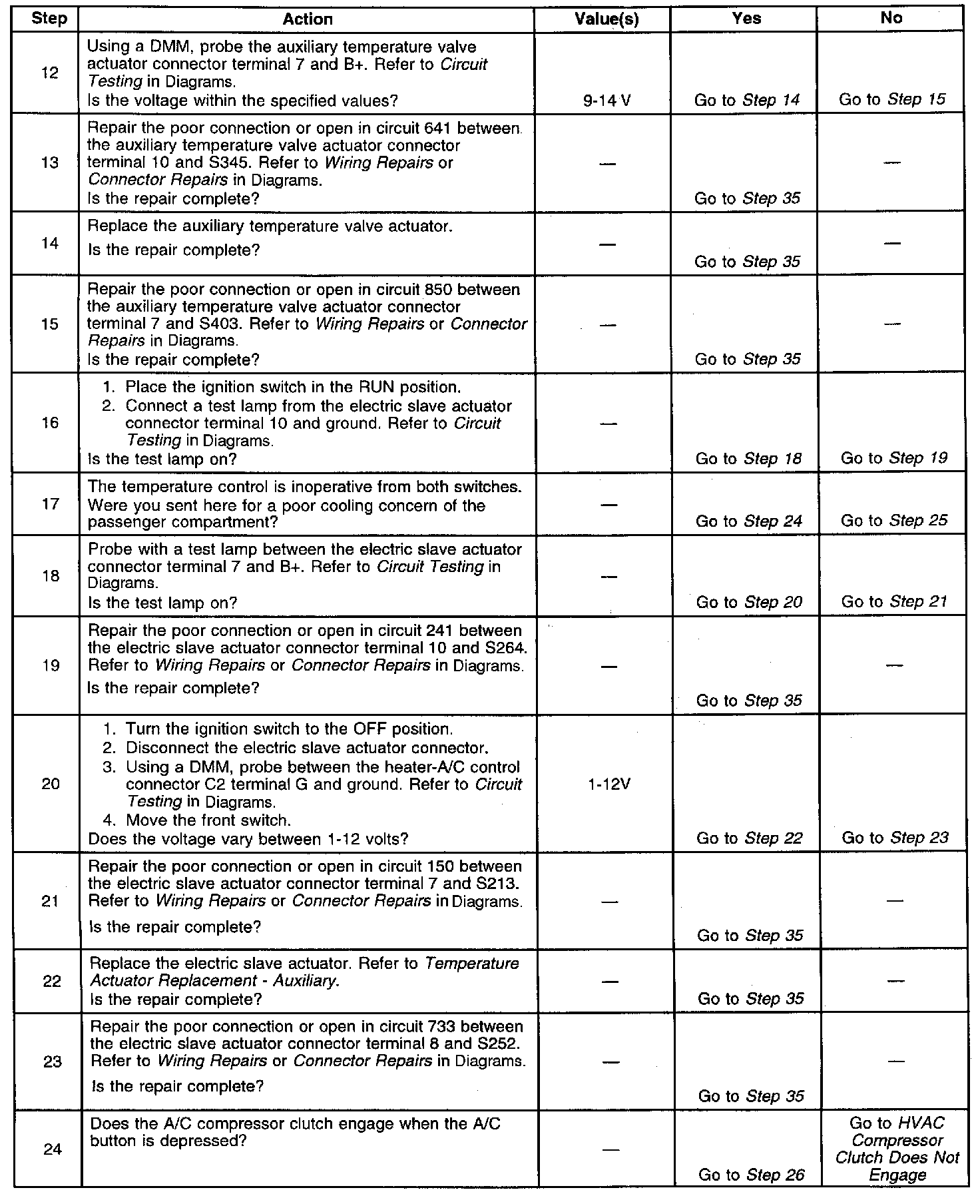

Steps 12-24:

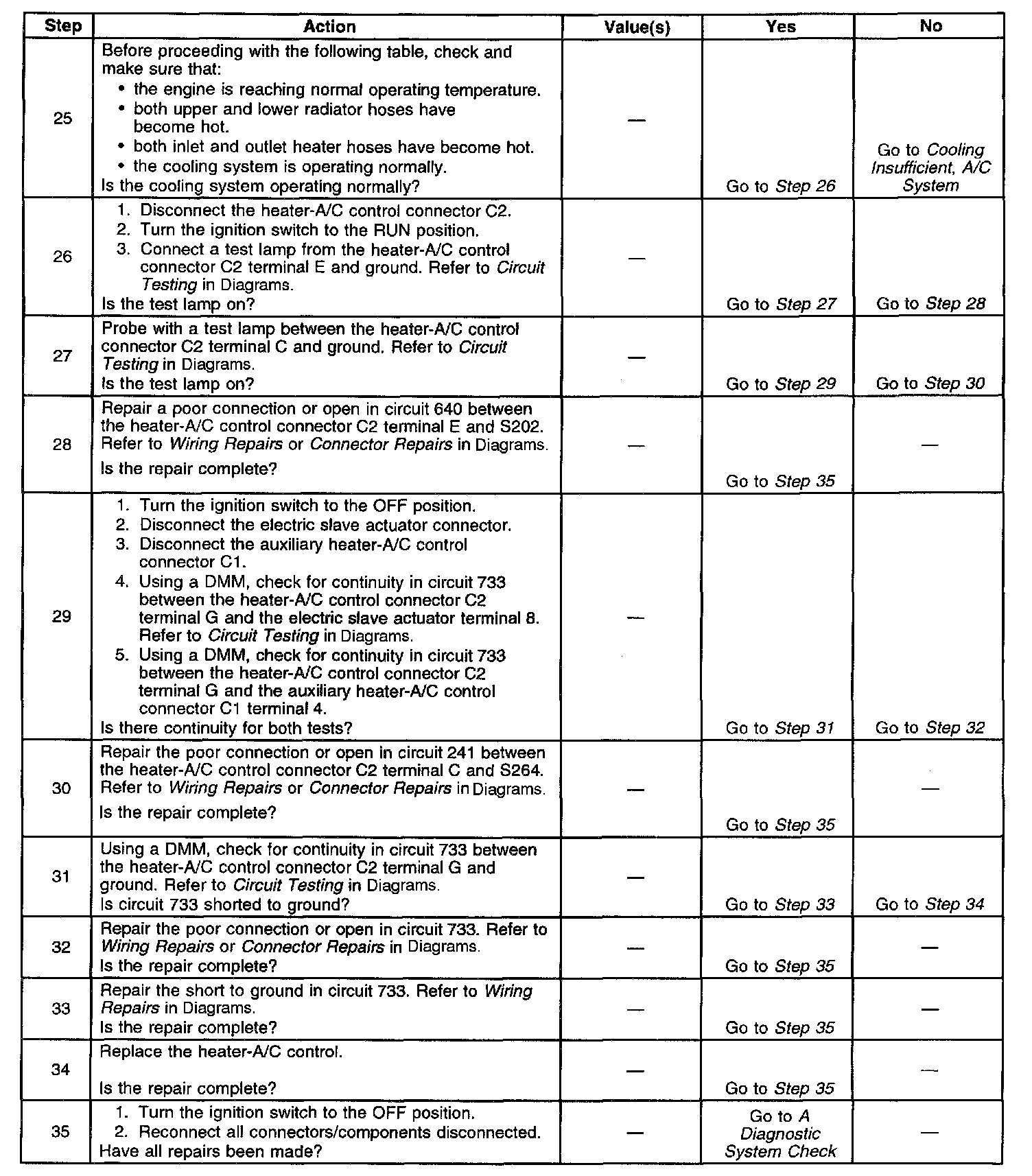

Steps 25-35:
