Home >> Chevrolet >> 2000 >> Venture V6-3.4L VIN E >> Repair and Diagnosis >> Heating and Air Conditioning >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Symptoms - HVAC System - Manual >> Air Recirculation Inoperative

Air Recirculation Inoperative

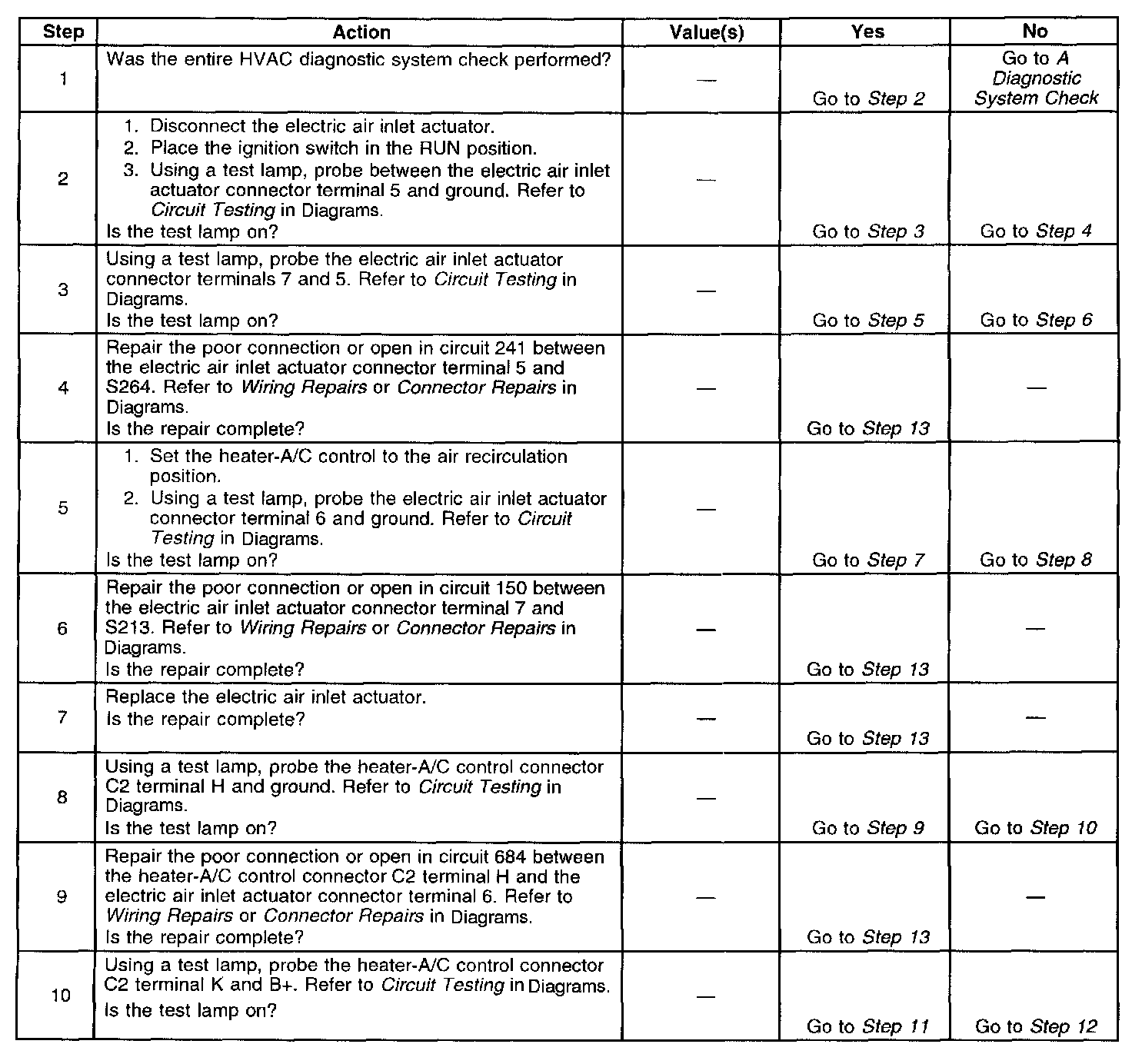

Steps 1-10:



Steps 11-13:
