Auxiliary Coolant Pump Replacement

AUXILIARY COOLANT PUMP REPLACEMENT

REMOVAL PROCEDURE






1. Drain the Cooling system. Refer to Draining and Filling Cooling System in Cooling System. Service and Repair

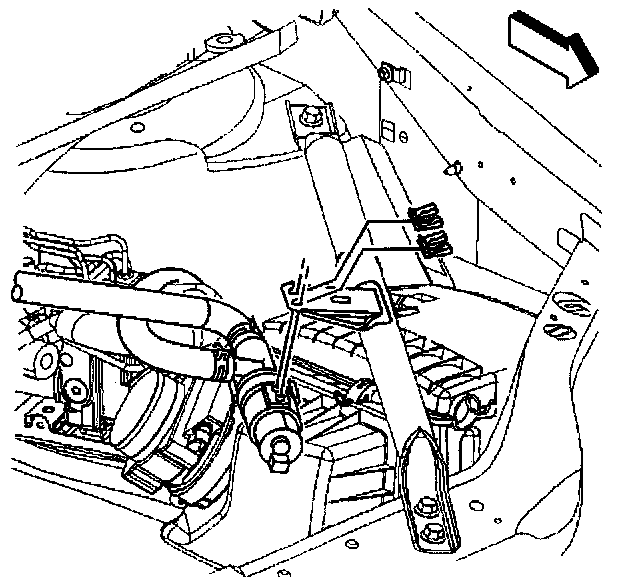

2. Disconnect the electrical connector from the auxiliary coolant pump.
3. Remove the auxiliary coolant pump to heater core inlet hose from the auxiliary coolant pump.
4. Remove the inlet pipe to auxiliary coolant pump hose from the coolant pump.






5. Remove the auxiliary coolant pump retaining clips.
6. Remove the auxiliary coolant pump from the diagonal brace.

INSTALLATION PROCEDURE






1. Install the auxiliary coolant pump to the diagonal brace.
2. Install the auxiliary coolant pump retaining clips.
3. Install the inlet pipe to auxiliary coolant pump hose to the coolant pump.
4. Install the auxiliary coolant pump to heater core inlet hose to the auxiliary coolant pump.






5. Connect the electrical connector to the auxiliary coolant pump.
6. Refill the cooling system. Refer to Draining and Filling Cooling System in Cooling System. Service and Repair
