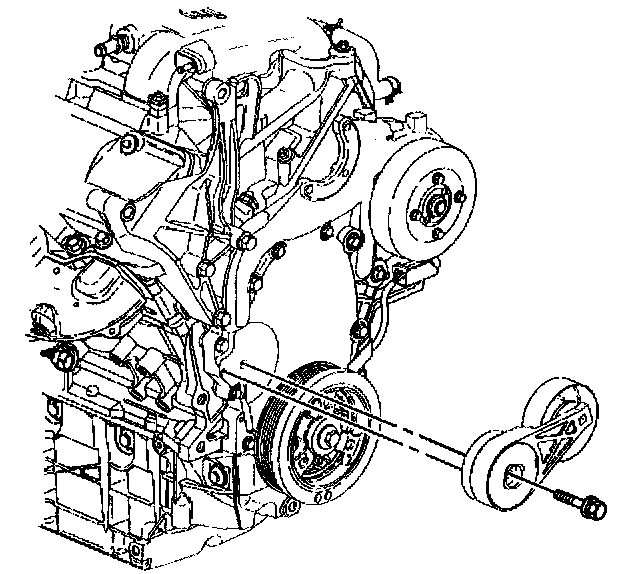

85. Drive Belt Tensioner Installation






1. Install the drive belt tensioner.

Notice: Refer to Fastener Notice in Service Precautions.

2. Install the drive belt tensioner bolt.
^ Tighten the drive belt tensioner bolt to 50 Nm (37 ft. lbs.).
