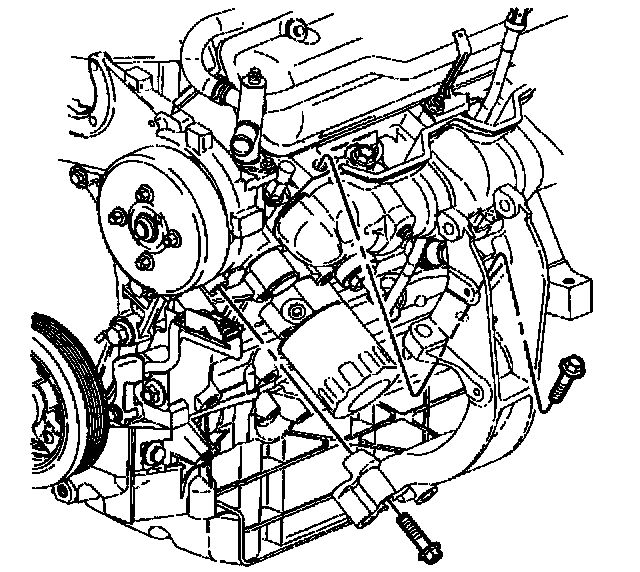

84. Engine Mount Strut and A/C Compressor Bracket Installation

1. Install the engine mount strut and A/C Compressor bracket.

Notice: Refer to Fastener Notice in Service Precautions.

2. Install the engine mount strut and A/C Compressor bracket bolts.
^ Tighten the engine mount strut and lift bracket bolts to 50 Nm (37 ft. lbs.).
