Right Valve Rocker Arm Cover

1. Install the valve rocker arm cover gasket into the valve rocker arm cover.
2. Apply sealer GM P/N 12345739 or the equivalent to the notches where the cylinder head and intake manifold meet.
3. Install the valve rocker arm cover.

Notice: Refer to Fastener Notice in Service Precautions.

4. Install the valve rocker arm cover bolts.
^ Tighten the valve rocker arm cover bolts to 10 Nm (89 inch lbs.).

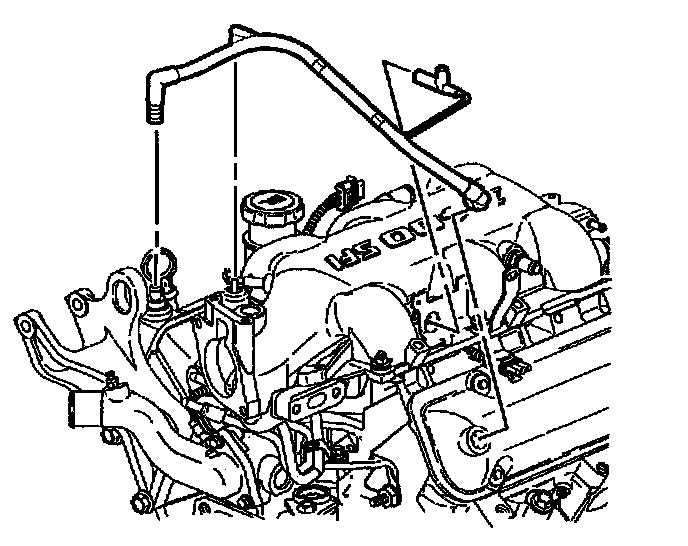

5. Install the vacuum lines to the upper intake manifold.
