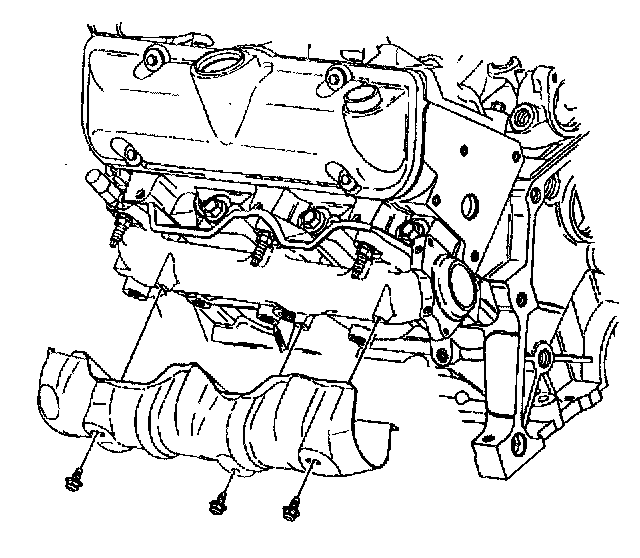

Left Exhaust Manifold

1. Install the exhaust manifold gasket.
2. Install the exhaust manifold.

Notice: Refer to Fastener Notice in Service Precautions.

3. Install the exhaust manifold nuts.
^ Tighten the exhaust manifold nuts to 16 Nm (12 ft. lbs.).





4. Install the exhaust manifold heat shield.
5. Install the exhaust manifold heat shield bolts.
^ Tighten the exhaust manifold heat shield bolts to 10 Nm (89 inch lbs.).
