67. Crankshaft Front Oil Seal Installation


^ Tools Required
- J 35468 Crankshaft Front Oil Seal Installer

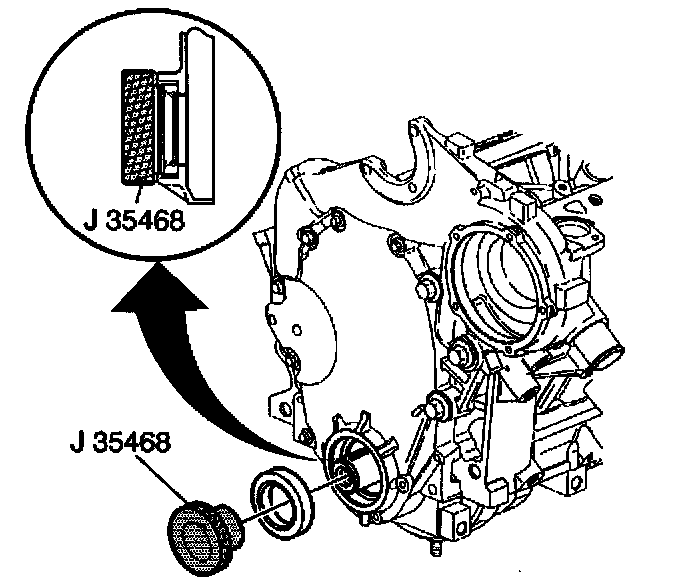

1. Align the J 35468 and the crankshaft front oil seal with the engine front cover and crankshaft.
2. Install the crankshaft front oil seal using the J 35468 and a suitable tool.
