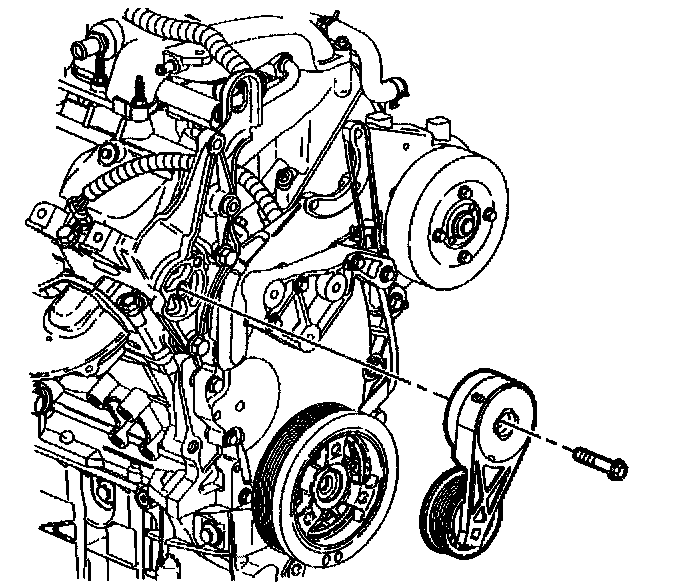

4. Drive Belt Tensioner Removal






1. Remove the drive belt tensioner bolt.
2. Remove the drive belt tensioner.
