15. Valve Rocker Arm and Push Rod Removal

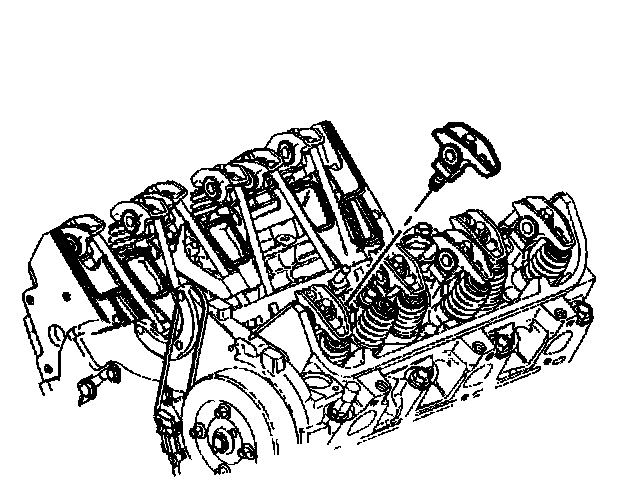

1. Remove the valve rocker arm bolts.

Important: Place the valve train components in a rack in order to ensure that the components are installed in the same location from which they were removed.

2. Remove the valve rocker arms.

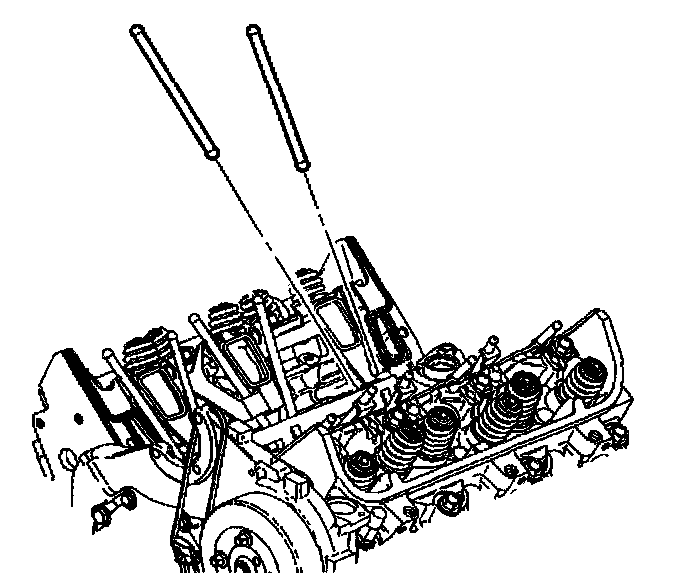

3. Remove the push rods.
^ The intake push rods measure 144.18 mm (5.68 inch).
^ The exhaust push rods measure 152.51 mm (6.0 inch).

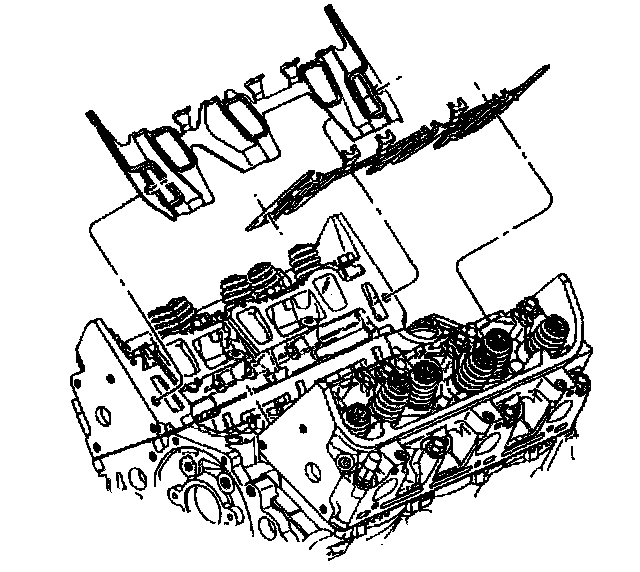

4. Remove the intake manifold gaskets.
