LF Wheel Speed Sensor
LF Wheel Speed Sensor

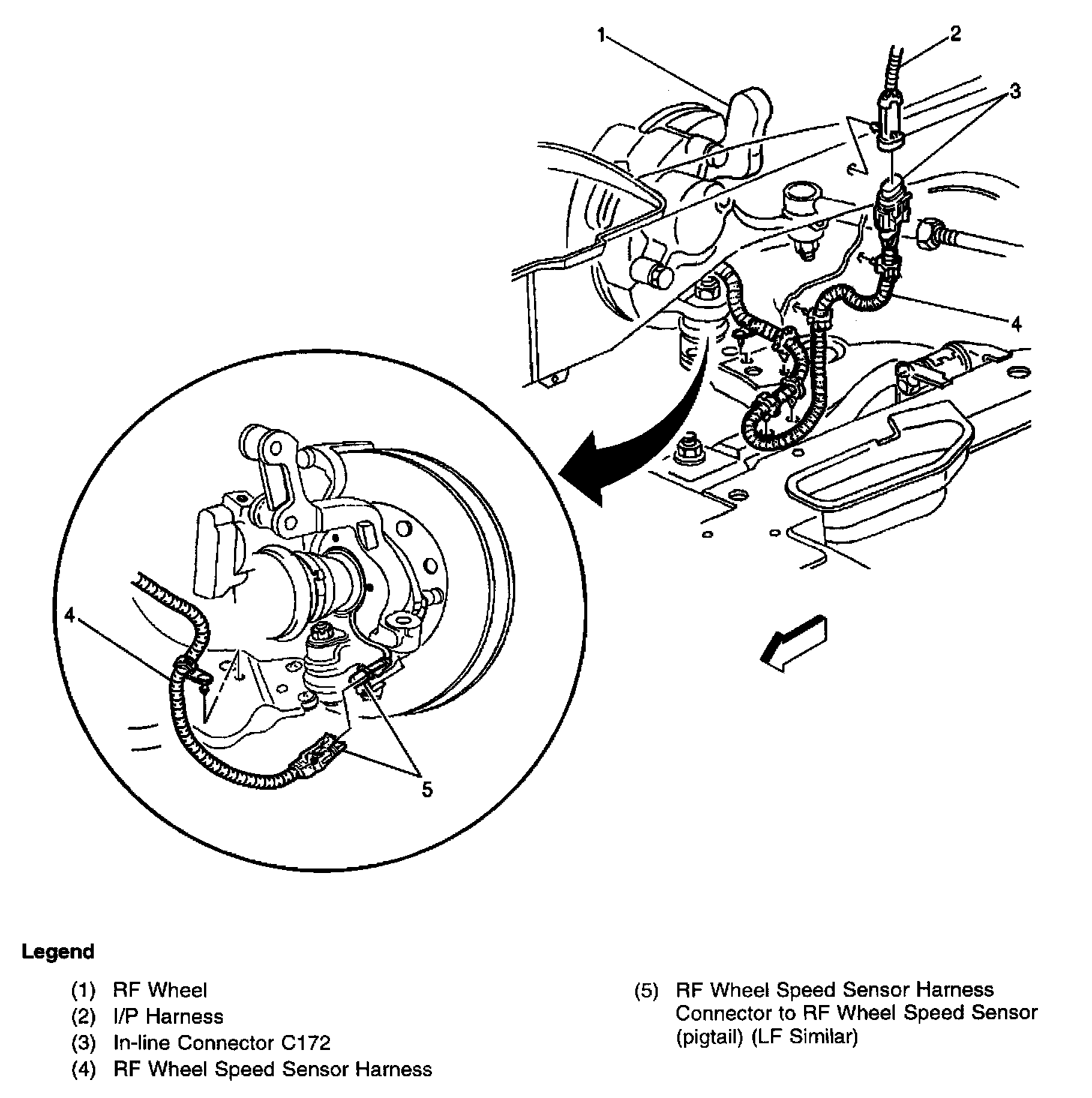

Harness Routing Views (RF Wheel (LF Wheel Speed Sensor Similar)):
