Home >> Chevrolet >> 2000 >> Venture V6-3.4L VIN E >> Repair and Diagnosis >> Diagrams >> Harness >> B-Pillar, RH

B-Pillar, RH

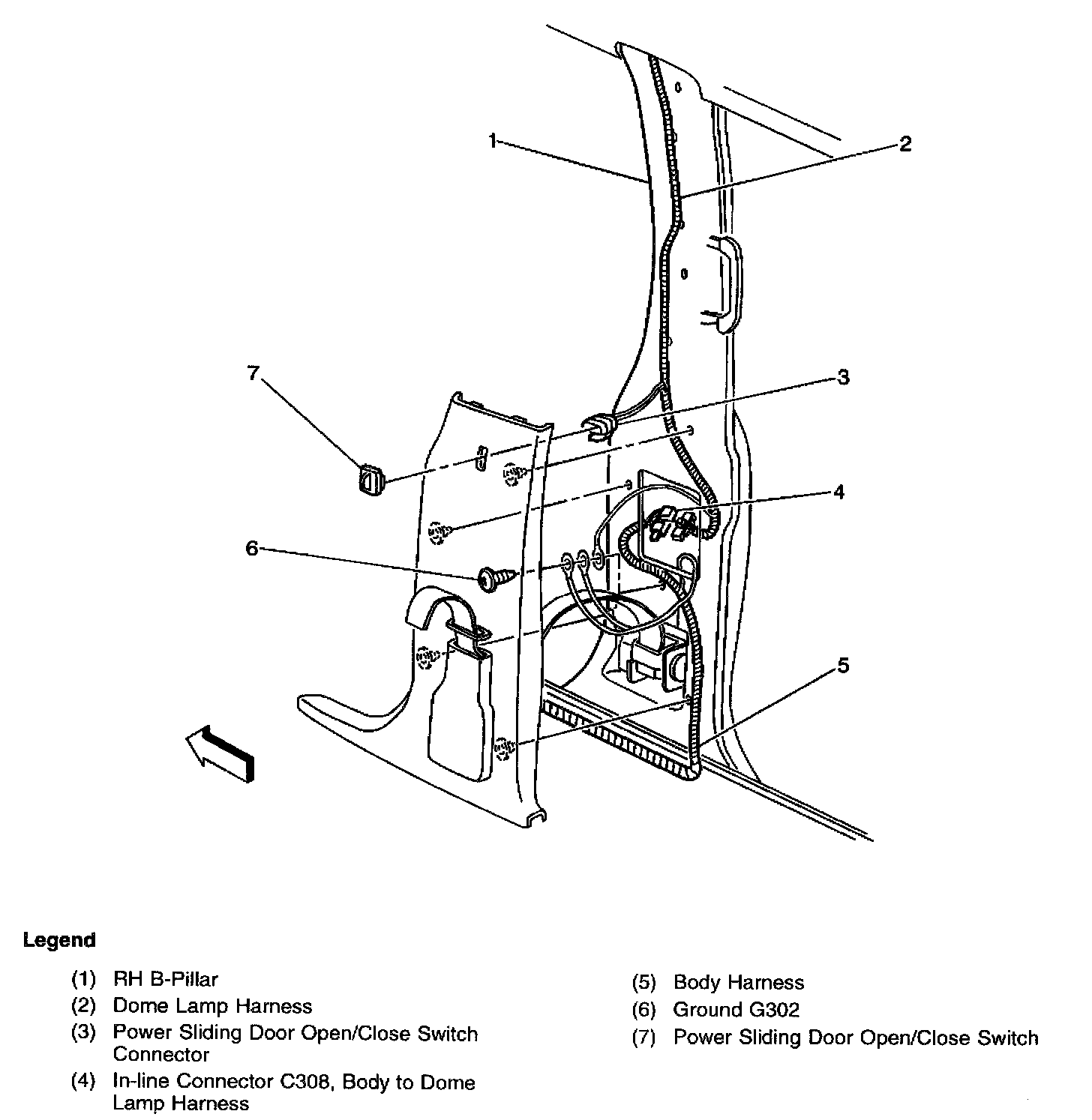

Harness Routing Views (RH B-Pillar):
