SWC Backlight and HTO Mirror Fuses

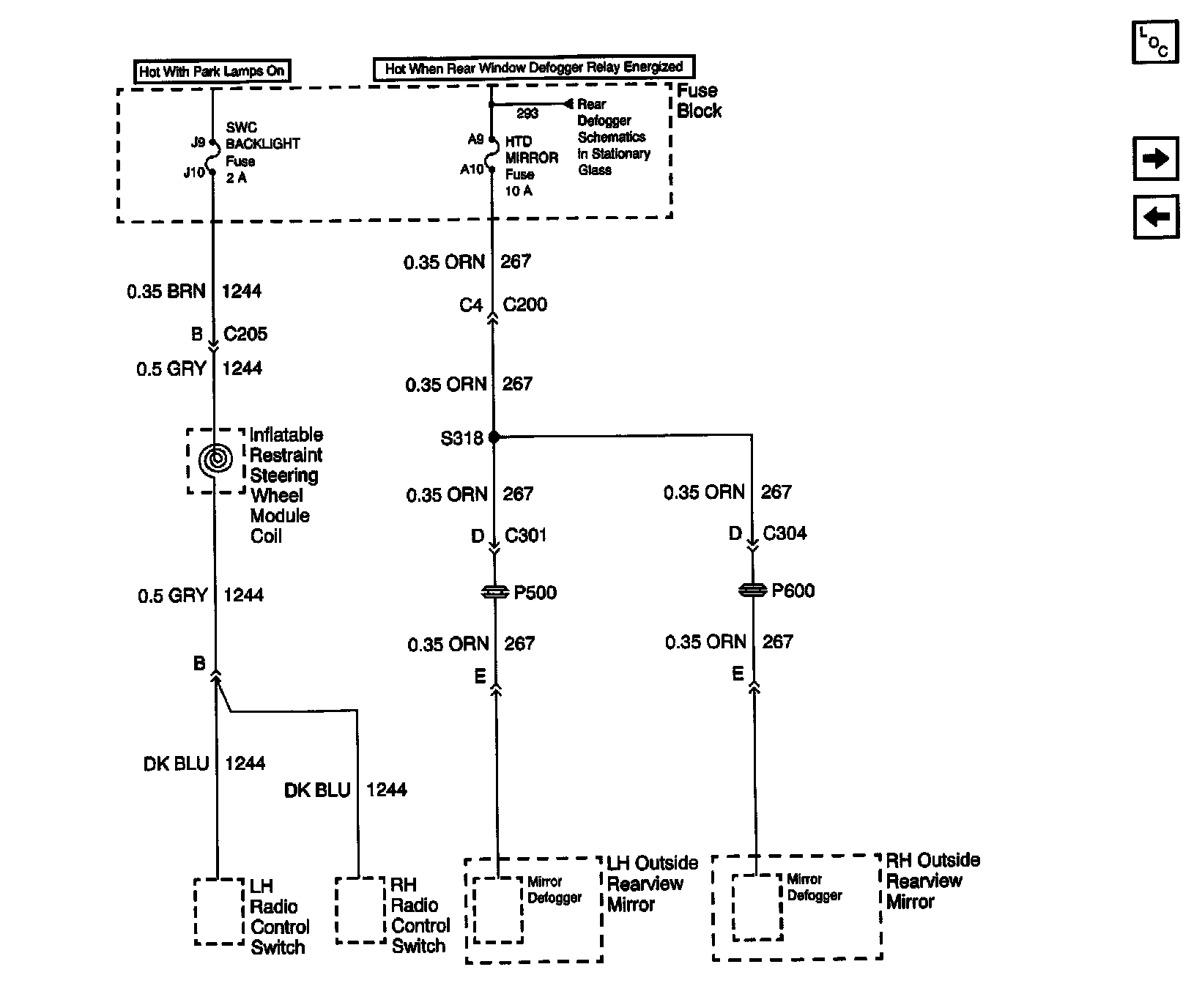

Power Distribution Schematics: SWC Backlight And HTO Mirror Fuses:
