Power Seats Schematics Driver's Side
Power Seats Schematics Driver's Side

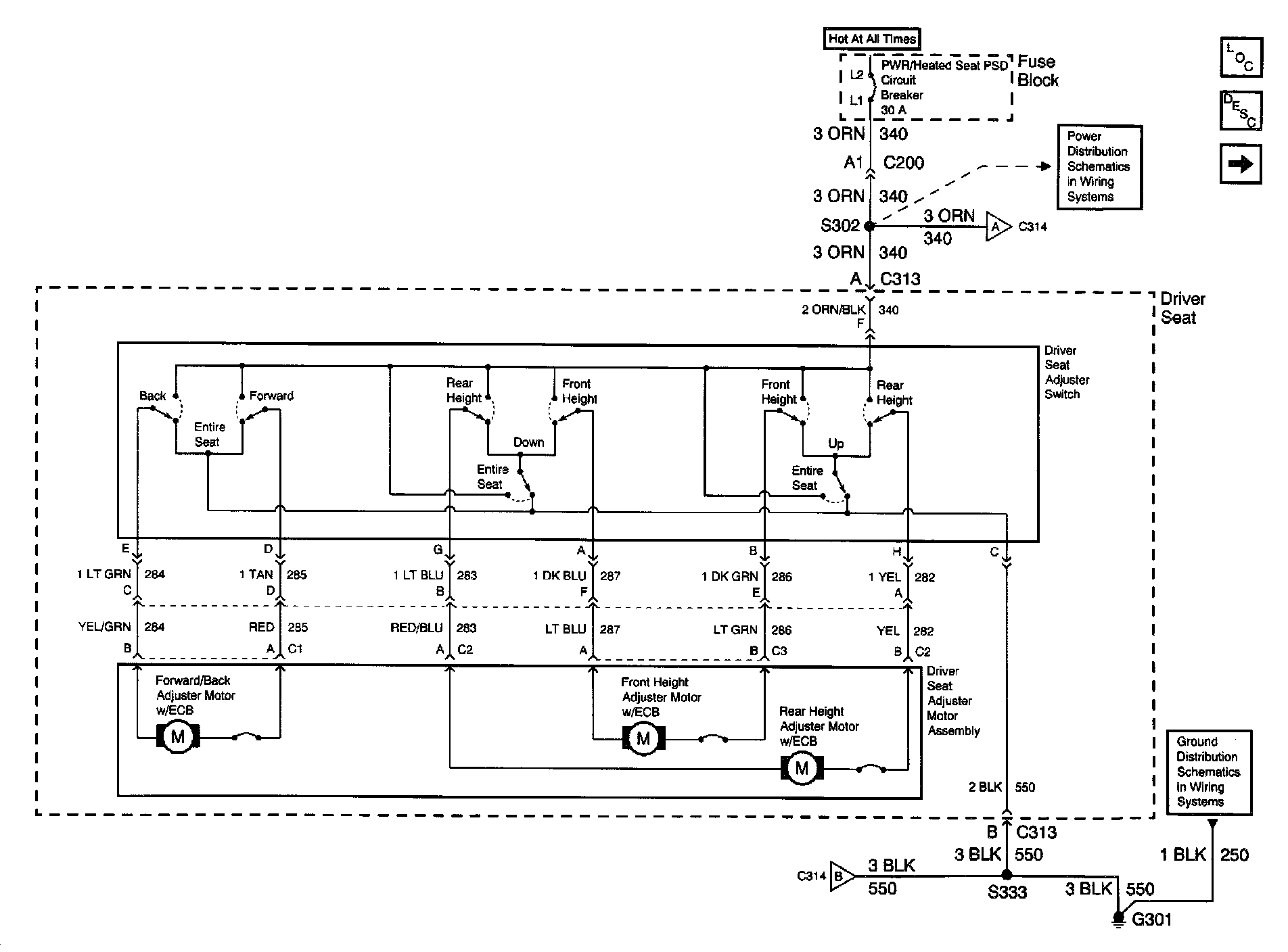

Power Seats Schematics: Power Seats Schematics Driver's Side:
