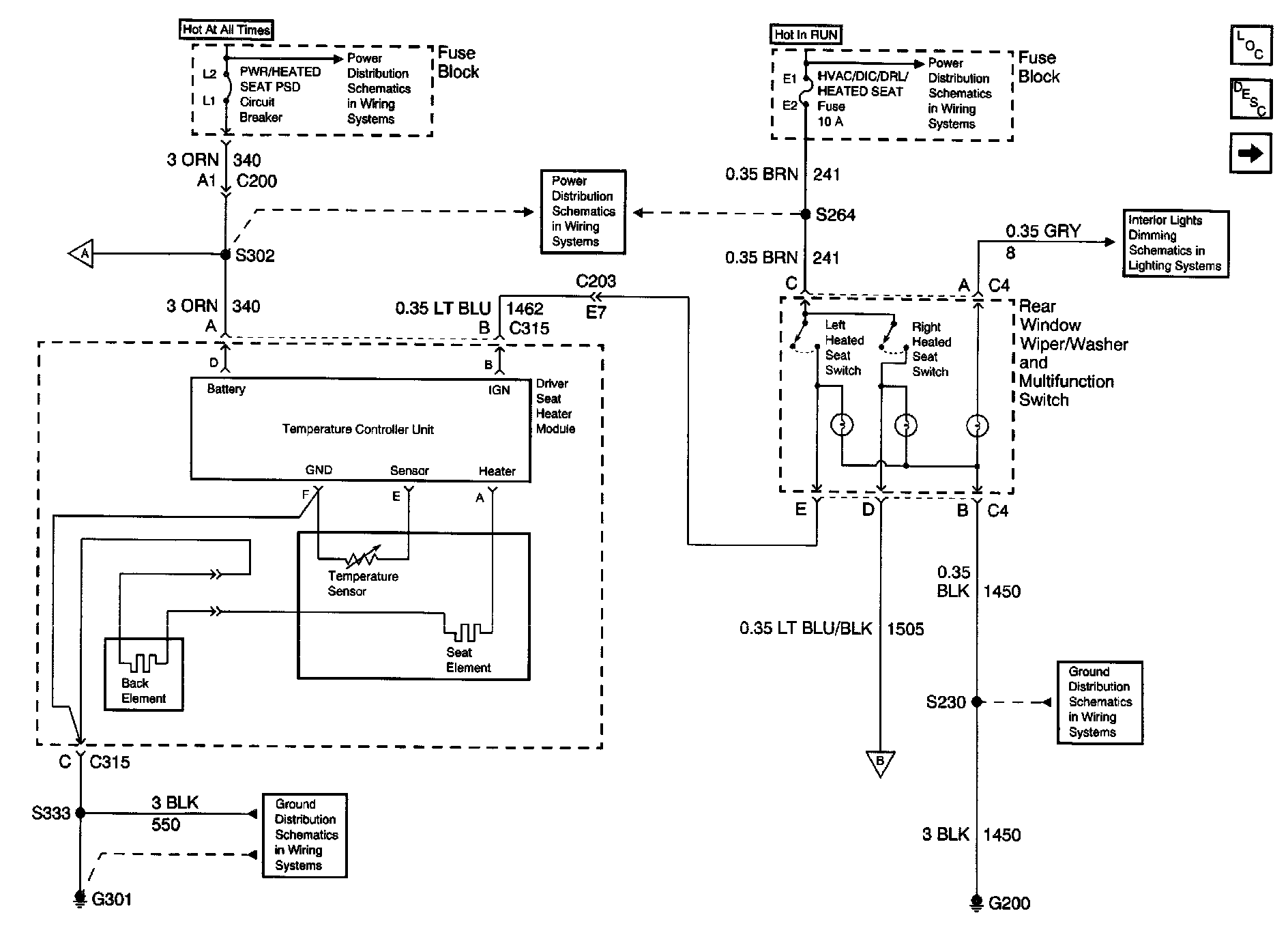

Driver Seat Heater Module, Heated Seat Switches

Heated Seats Schematics: Driver Seat Heater Module, Heated Seat Switches:
