Venture V6-3.4L VIN E
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Radio, Stereo, and Compact Disc
>>
Video System Schematics
>>
Video Audio Channel Outputs
Video Audio Channel Outputs

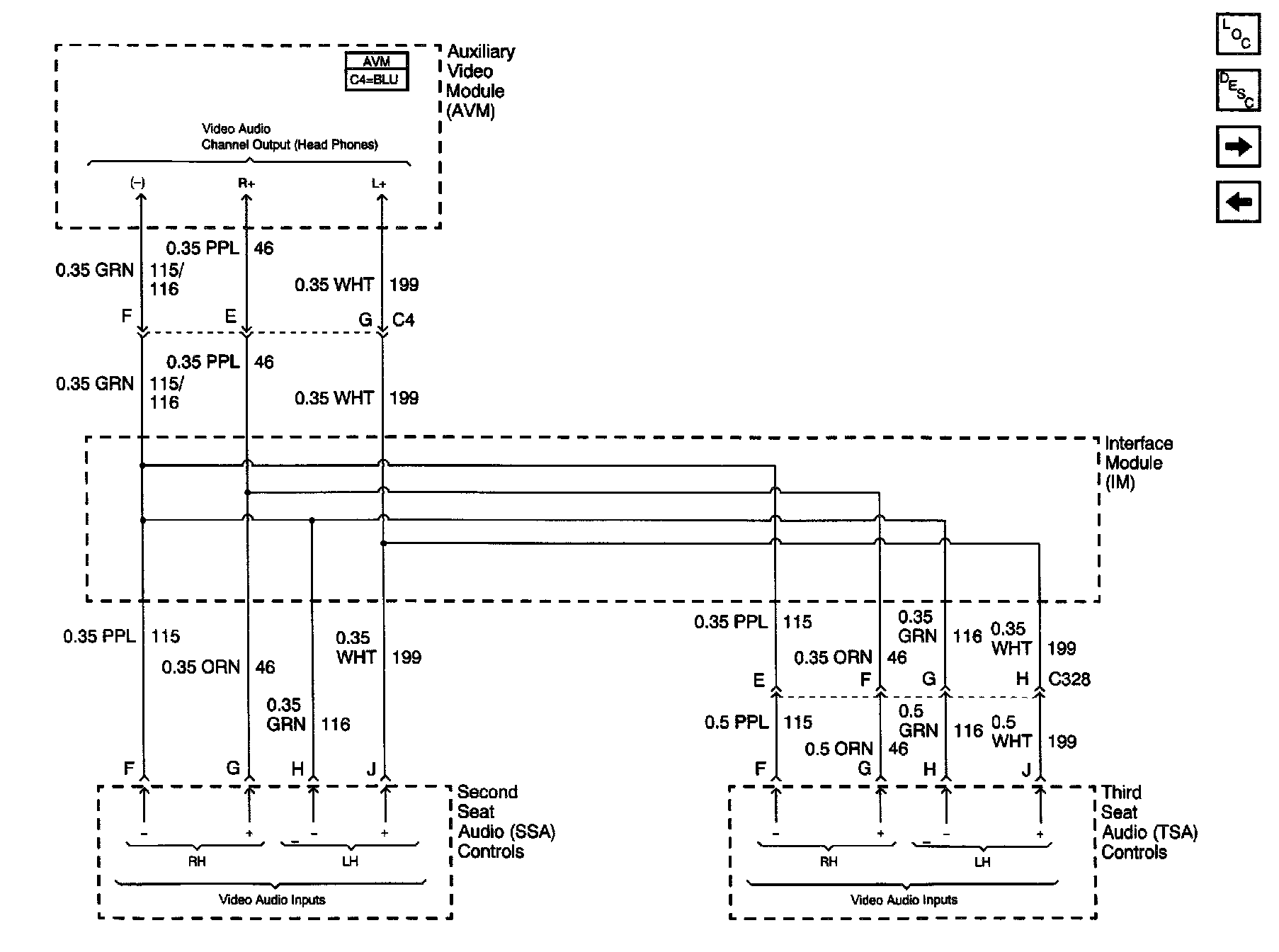

Video System Schematics: Video Audio Channel Outputs:
