Radiator Cooling Fan Motor
Radiator Cooling Fan Motor

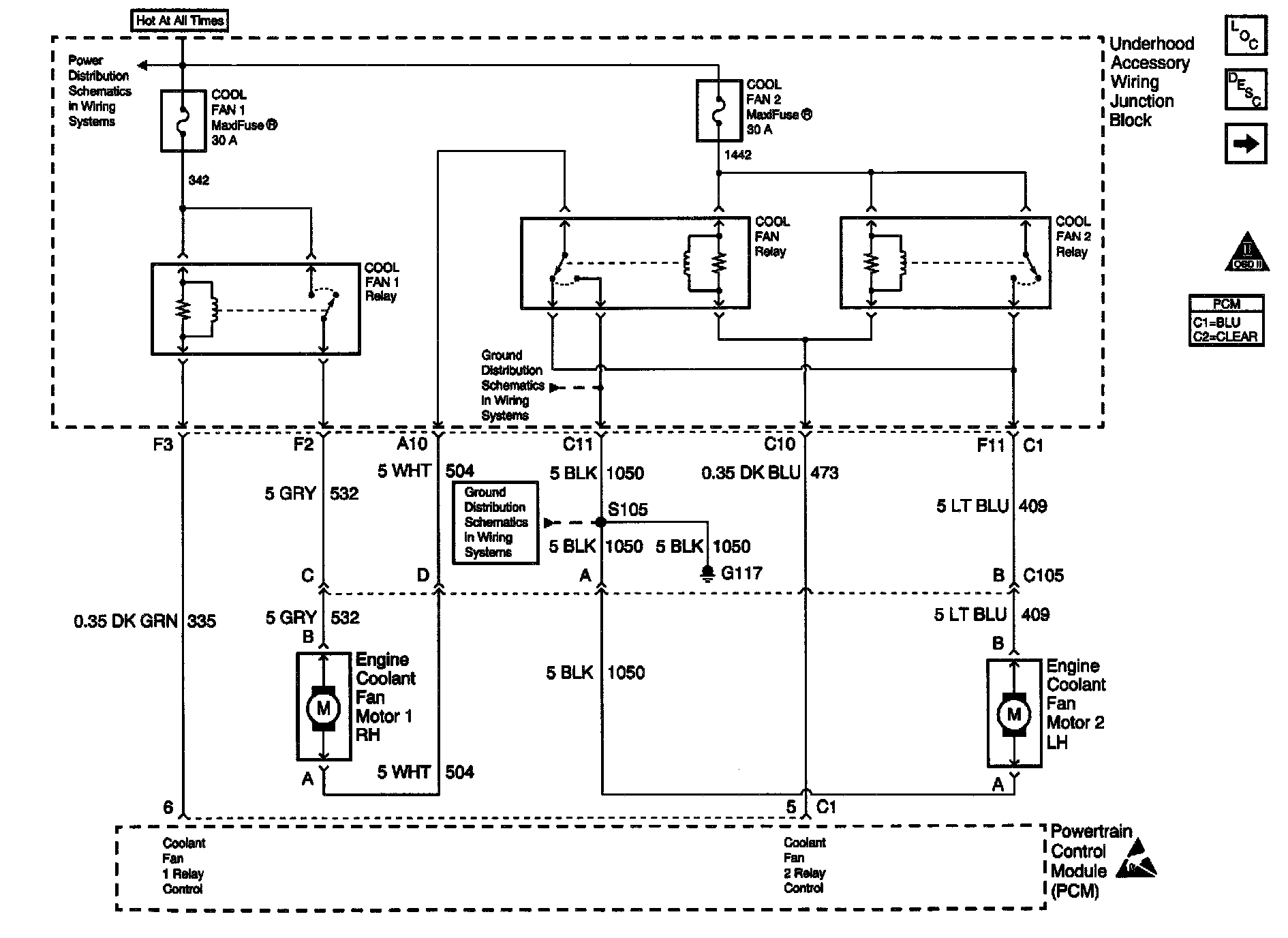

Cooling Fan Schematics:
Cooling Fan Schematics:
